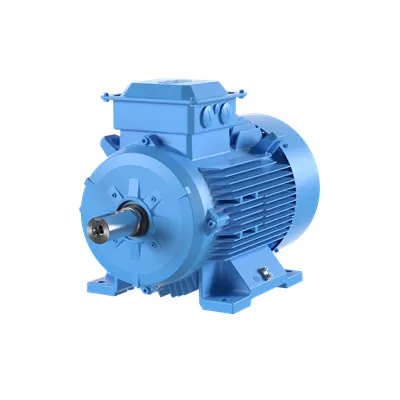

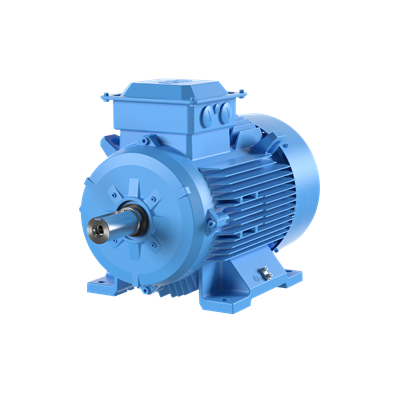

ABB 3GBA202410-ADNIN Motor - Cast Iron, 30 kW, 415V IE4
Part Number: 3GBA202410-ADNIN
Quick Summary
ABB 3GBA202410-ADNIN is a high-efficiency three-phase motor for heavy-duty conveyors and pumps in industrial plants. Engineers often struggle with energy waste, overheating, and downtime in continuous operations. This motor delivers IE4 efficiency, IP55 protection, and IC411 cooling, helping plants reduce energy costs, protect critical equipment, and extend service intervals. With 30 kW output at 415 V and IMB3/IM1001 mounting, it offers reliable installation in harsh environments while complying with global standards. The cast-iron frame and rugged bearings support long life in Indian manufacturing contexts, and the motor is ready for rugged industrial duty, streamlining procurement and spare-parts planning.
Product Information
ABB Type Designation
M2BAX 200MLA 4
Product Name
3-Phase squirrel cage motor
Product Type
IBA4__M2BAX_IE4_CI
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Selling Unit of Measure
piece
Country of Origin
India (IN)
Customs Tariff Number
85015230
Medium Description
30kW, 4 Poles, Frame Size 200, 3 Phases, 415V, 50Hz, IP55 Enclosure, IMB3/IM1001 Mounting (3GBA202410-ADNIN)
Short Description
30kW, 4P, Frame Size 200, 3PH, 415V, 50Hz, IP55, IMB3/IM1001
Electrical Data
Connection Configuration
D
Temperature Class Default
--
Input Voltage (Uin)
415 V
Frequency (f)
50 Hz
Output Power
30 kW
Altitude
1000 m
Ambient Temperature
50 °C
IC Class
IC411
IE Class Data (50 Hz)
IE Class IE4 | Full Load (100%) 94.9 % | Partial Load (75%) 95.0 % | Partial Load (50%) 94.8 %
IP Class
IP55
Insulation Class
ICLF
Direction of Rotation
Both sides
Number of Poles (High)
4
Two Speed Motor
No
Type of Duty
S1
Voltage Code
D
Frame Material
Cast Iron
Frame Size
200
Bearing
6212-2Z/C3
Bearing NDE
6209-2Z/C3
IM Class
IMB3 IM1001
Terminator Box Location
D-End top
Package Level 1 Units
0 pallet (lift)
Product Net Depth / Length
810 mm
Product Net Height
515 mm
Product Net Width
378 mm
Product Net Weight
322 kg
Gross Weight
332 kg
UNSPSC
26101100
Feature: IE4 efficiency with a 30 kW rating at 415 V and 50 Hz reduces energy consumption and cooling requirements, lowering total cost of ownership. Business impact: substantial utility savings and improved process reliability. Application: ideal for heavy-duty conveyors and pumps in packaging, mining, and process industries. Paragraph 2: Feature: Cast-iron frame with long-life bearings (6212-2Z/C3 and 6209-2Z/C3) offers exceptional durability in dusty, harsh environments. Impact: reduced maintenance frequency and extended bearing life. Application: cement, metal processing, and bulk handling. Paragraph 3: Feature: IMB3/IM1001 mounting and D-End top terminator box location simplify installation and retrofit. Impact: faster commissioning, straightforward service access, and compatibility with standard drives. Application: new builds and line upgrades. Paragraph 4: Feature: IP55 protection, IC411 insulation, 4-pole, 3-phase, 50 Hz operation, 415 V input. Impact: reliable operation under dirt, moisture, and heat; regulatory and drive-system compatibility. Application: general purpose industrial equipment across multiple sectors. Paragraph 5: Feature: Altitude up to 1000 m and ambient up to 50 °C with S1 duty and frame size 200. Impact: consistent torque and performance in challenging ambient conditions; easier procurement and spares planning. Application: global manufacturing sites with varied climates.
Get a Quick Quote for a ABB 3GBA202410-ADNIN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3GBA202410-ADNIN?
Enquire Now
FAQs
Installers should use the IMB3/IM1001 mounting with the D-End top terminator box configuration and the 4-pole connection (D). Ensure a 415 V, 50 Hz supply and IP55 protection. Verify alignment to the frame size 200 footprint and confirm bearing access for maintenance. This setup minimizes alignment issues and reduces commissioning time while ensuring long-term reliability.
The motor meets IE4 efficiency standards, with full-load efficiency around 94.9% and strong partial-load performance. This yields meaningful energy savings during continuous operation, lowers cooling loads, and reduces operating costs over the motor’s life. It is particularly advantageous for conveyors, pumps, and process equipment subject to constant duty.
Yes. The motor uses a 4-pole design, 200 frame size, and IMB3/IM1001 mounting, with a D connection configuration. It is compatible with standard 3-phase drives and common mounting footprints, making retrofits and integration into existing lines straightforward while maintaining robust enclosure IP55 protection.
Key bearings are 6212-2Z/C3 and 6209-2Z/C3, designed for longevity in dusty environments. Plan regular inspection of bearing housings and seals, monitor temperature during initial operation, and follow established lubrication schedules per your plant’s maintenance policy. The cast-iron frame contributes to durability in harsh plants such as cement or metal processing facilities.
Choosing the IE4 3GBA202410-ADNIN reduces energy consumption and cooling requirements, lowering operating costs. Its robust build lowers downtime and maintenance frequency, while its mounting and installation simplicity shorten project timelines. Over the motor’s lifecycle, these factors translate to a lower total cost of ownership and faster payback in demanding industrial environments.
