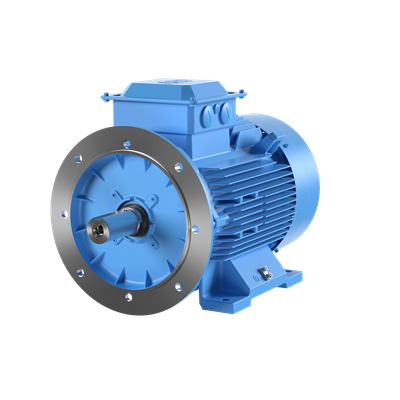

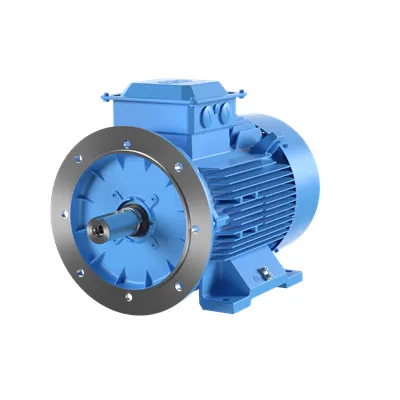

ABB 3GBA202410-HDC Motor - IE2 High Efficiency
Part Number: 3GBA202410-HDC
Quick Summary
ABB 3GBA202410-HDC Motor provides reliable 30 kW power for industrial drives and pumps. Many buyers struggle with energy costs and downtime caused by aging motors. This motor complies with IEC 60034-1 and offers IP55 protection and IC411 insulation, supporting rugged operation in dusty or humid environments. Its 4-pole, 400 V, 50 Hz configuration delivers consistent torque for continuous duty, while the cast-iron frame and IMB35/IM2001 mounting ensure durability in harsh facilities. With a 0-day lead time and a one-piece minimum order, it integrates smoothly into standard drive systems, reducing installation risk and spare-part complexity. Secondary benefits include energy efficiency improvements and long-term maintenance predictability, making it a solid choice for capital-intensive automation projects in manufacturing and processing plants.
Product Information
Configuration Only
No
Country of Origin
Poland (PL)
Lead Time
0 day
Made To Order
No
Product Sales Status
Inactive
Quote Only
No
Warranty Return
Product under warranty must be returned
ABB Type Designation
M2BAX 200MLA 4
Invoice Description
M2BAX 200MLA 4
Product Name
3-Phase squirrel cage motor
Product Type
EBA2__M2BAX_CI
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Selling Unit of Measure
piece
Country of Origin
China (CN) | Poland (PL)
Customs Tariff Number
85015230
Medium Description
30kW, 4 Poles, Frame Size 200, 3 Phases, 400V, 50Hz, IP55 Enclosure, IMB35/IM2001 Mounting (3GBA202410-HDC)
Short Description
30kW, 4P, Frame Size 200, 3PH, 400V, 50Hz, IP55, IMB35/IM2001
Electrical Data
Connection Configuration
D
Temperature Class Default
--
Input Voltage (Uin)
400 V
Frequency (f)
50 Hz
Output Power
30 kW
Altitude
1000 m
Ambient Temperature
40 °C
IC Class
IC411
IE Class Data (50 Hz)
IE Class IE2 | Full Load (100%) 92.3 % | Partial Load (75%) 92.4 % | Partial Load (50%) 92.0 %
IE Class Data (60 Hz)
IE Class IE2 | Full Load (100%) 93.0 % | Partial Load (75%) 92.7 % | Partial Load (50%) 92.0 %
IP Class
IP55
Insulation Class
ICLF
Direction of Rotation
Both sides
Number of Poles (High)
4
Two Speed Motor
No
Type of Duty
S1
Voltage Code
D
Frame Material
Cast Iron
Frame Size
200
Bearing
6212-2Z/C3
Bearing NDE
6209-2Z/C3
Lubrication
For life
IM Class
IMB35 IM2001
Terminator Box Location
D-End top
Package Level 1 Units
0 pallet (lift)
Product Net Depth / Length
728 mm
Product Net Height
473 mm
Product Net Width
378 mm
Product Net Weight
222 kg
Gross Weight
232 kg
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
SCIP
d19446d4-4db6-4ddb-826d-2341a0f7dd46 Finland (FI)
Standards
IEC 60034-1
UNSPSC
26101100
Feature: IE2 high-efficiency performance reduces energy consumption in continuous-drive applications. Business Impact: lowers operating costs and improves energy-intensity metrics across motor-driven lines. Application: pumps, fans, conveyors, mixers in metalworking, chemical, and packaging sectors. The motor’s IE2 data at 50 Hz shows full-load efficiency of 92.3% and partial-load performance of 92.4% at 75% and 92.0% at 50%, supporting energy-management initiatives. Feature: Cast-iron frame provides rugged durability and long service life in challenging environments. Business Impact: fewer unplanned outages, lower maintenance costs, and extended asset life. Application: heavy-duty lines with vibration, dust, or moisture exposure. Feature: IP55 enclosure and IC411 insulation enable operation in dusty and warm plants. Business Impact: reduced enclosure cooling needs and higher uptime in packaging, food, chemical, and processing facilities. Application: environments demanding solid protection. Feature: 4-pole, 400 V, Delta connection simplifies integration with existing plant electrical distribution. Business Impact: minimal rewiring and faster commissioning, lowering installation risk and time-to-production. Application: retrofit projects and new builds on standard 400 V networks; aligns with ABB M2BAX 200MLA 4 designation. Feature: Lubrication for life and IMB35 IM2001 mounting streamline service. Business Impact: reduces spare-parts inventory and maintenance scheduling, improving total cost of ownership. Application: remote sites and high-availability systems. Feature: Compliance with IEC 60034-1 and standard ABB product data aligns with procurement, installation, and compliance workflows. Business Impact: simplifies qualification for quality, safety records, and lifecycle integration with standard drive systems.
Get a Quick Quote for a ABB 3GBA202410-HDC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3GBA202410-HDC?
Enquire Now
FAQs
Install in Delta configuration (D) for 400 V three-phase power, with a 4-pole design. Use frame size 200 mounting IMB35/IM2001. Ensure IP55 protection and IC411 insulation are maintained, and verify ambient conditions up to 40 °C and altitude up to 1000 m. The lead time is listed as 0 day and MOQ is 1 piece.
At 50 Hz, the motor delivers 30 kW with full-load efficiency around 92.3%. Partial-load figures show 92.4% at 75% load and 92.0% at 50% load. This supports stable torque delivery and energy efficiency in continuous-duty applications such as pumps and conveyors.
Yes. The 30 kW, 4-pole, 400 V motor is designed for S1 duty in industrial drives. Cast-iron construction with IP55 protection and IMB35/IM2001 mounting ensures durability in demanding environments such as processing lines, cooling systems, and material handling.
The motor complies with IEC 60034-1 and features IP55 protection and IC411 insulation. It supports broad industrial use with standard ABB designations and mounting, and is listed with SCIP and WEEE considerations for end-of-life disposal.
Lead time is 0 day, with a minimum order quantity of 1 piece and no make-to-order status. The product lists origin as China or Poland, supports a single-piece selling unit, and can be integrated into existing drive systems without delays when in stock.
