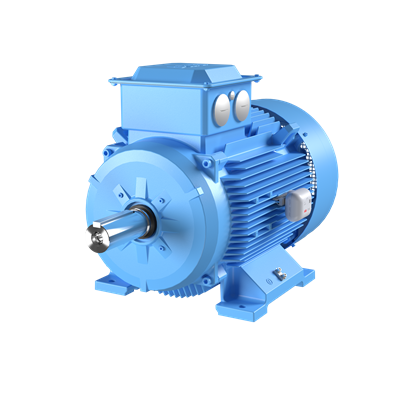

ABB 3GBA203420-BDCCN 3-Phase Squirrel Cage Motor - IP55
Part Number: 3GBA203420-BDCCN
Quick Summary
ABB 3GBA203420-BDCCN is a 3-phase squirrel cage motor designed for heavy-duty general purpose drives in industry. This solution helps reduce downtime and maintenance costs by leveraging robust cast-iron construction and lifetime lubrication. It carries key certifications and standards that support reliability in demanding environments, including IP55 protection, IEC 60034-1 compliance, and IE2 efficiency performance. The result is a cost-effective, energy-conscious motor suitable for pumps, conveyors, and similar continuous-duty applications, with easy stocking and straightforward installation in standard workshops and plant floors. For buyers seeking predictable performance, robust durability, and total cost-of-ownership benefits, this ABB motor ticks the right boxes alongside compatible ABB drive systems and assembly frames.
Product Information
ABB Type Designation
M2BAX 200MLB 6
Invoice Description
M2BAX 200MLB 6
Product Name
3-Phase squirrel cage motor
Product Type
CBA2__M2BAX_CI
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Selling Unit of Measure
piece
Country of Origin
China (CN)
Customs Tariff Number
85015100
Stocked At (Warehouses)
Shanghai, China | Guangzhou, China | China
Electrical Data
Temperature Class Default
--
Altitude
1000 m
Ambient Temperature
40 °C
IC Class
IC411
IE Class Data (50 Hz)
IE Class IE2 | Full Load (100%) 90.9 % | Partial Load (75%) 91.3 % | Partial Load (50%) 90.6 %
IE Class Data (60 Hz)
IE Class IE2 | Full Load (100%) 91.7 % | Partial Load (75%) 91.6 % | Partial Load (50%) 90.2 %
IP Class
IP55
Insulation Class
ICLF
Direction of Rotation
Both sides
Number of Poles (High)
6
Two Speed Motor
No
Type of Duty
S1
Voltage Code
D
Frame Material
Cast Iron
Frame Size
200
Bearing
6312-2Z/C3
Bearing NDE
6309-2Z/C3
Lubrication
For life
IM Class
IMB5 IM3001
Terminator Box Location
D-End top
Package Level 1 Units
0 pallet (lift)
Product Net Weight
219 kg
Gross Weight
229 kg
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
Standards
IEC 60034-1
UNSPSC
26101100
Feature: 6-pole, 3-phase design pairs with IE2 efficiency targets to lower energy consumption and operating costs. Business Impact: Reduced energy bills over the motor’s life while maintaining reliable torque for continuous loads. Application: Suitable for pumps and conveyors in manufacturing lines running at constant speed. Feature: Cast Iron frame provides rugged durability and heat dissipation for long life in harsh environments. Business Impact: Lower maintenance frequency and extended service intervals, improving uptime and plant throughput. Application: Heavy-duty installations in foundries, steel mills, or chemical plants with demanding ambient conditions. Feature: IP55 protection and IC411 insulation class enable operation in moderately dusty or damp environments. Business Impact: Enhanced ingress protection and insulation reliability reduce electrical faults and downtime. Application: Outdoor or semi-enclosed equipment housing and areas with exposure to dust, humidity, or splashing water. Feature: Lifetime lubrication and bearings 6312-2Z/C3, 6309-2Z/C3 minimize relubrication needs. Business Impact: Lower maintenance cost and simplified service planning. Application: Continuous operation in conveyors, fans, and pumps where uptime is critical. Feature: 200 frame, 6 poles, and DIN-standard terminology align with common replacement stock and installation practices. Business Impact: Faster procurement and easier retrofits with existing mounting footprints. Application: Retrofit projects or new builds needing a compatible, widely stocked motor. Feature: Stocked in major warehouses (Shanghai, Guangzhou, CN) and IEC 60034-1 compliant. Business Impact: Shorter lead times and smoother compliance audits. Application: Global procurement programs that rely on rapid fulfillment and standard compliance.
Get a Quick Quote for a ABB 3GBA203420-BDCCN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3GBA203420-BDCCN?
Enquire Now
FAQs
This motor uses a 200 frame cast-iron enclosure with a D-End top terminator box location, making mounting straightforward on standard bases. It supports IP55 protection and lifetime lubrication, reducing relubrication needs. Ensure mounting aligns with the 6-pole design and that space allows for adequate cooling at 40 °C ambient and up to 1000 m altitude for sustained performance.
The motor operates with IE2 efficiency class. At 50 Hz, full-load efficiency is around 90.9%, with partial-load values near 91.3% (75% load) and 90.6% (50% load). At 60 Hz, full-load efficiency rises to about 91.7%, with partial-load figures of 91.6% (75%) and 90.2% (50%). Voltage code is D, and IP55 protection helps maintain performance in challenging environments.
This model is specified for S1 duty (continuous, steady-state operation) and is not a two-speed motor. It is well-suited for fixed-speed drives and compatibility with standard VFDs for controlled speed, provided drive settings respect the motor’s synchronous speed, torque limits, and protection ratings. For variable speed applications, ensure voltage, frequency, and torque profiles stay within IEC 60034-1 and OEM guidelines.
The motor uses high-quality ball bearings: 6312-2Z/C3 and 6309-2Z/C3 (NDE). Lubrication is designed for life, reducing maintenance intervals. Plan periodic inspections of bearing seals and ensure clean cooling airflow. The IM class is IMB5 IM3001, which informs mounting alignment and service access. Regular thermal checks and vibration monitoring help identify wear before it impacts performance.
This motor is stocked in Shanghai and Guangzhou, China, with a broader CN supply chain footprint. It is built to IEC 60034-1 standards, carries IP55 protection, and supports IEC-related compliance. The product is listed under Customs Tariff Number 85015100, aligning with international shipping and regulatory documentation for industrial motors.
