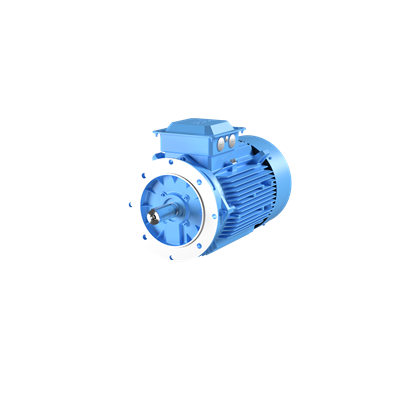

ABB 3GBA203420-BDNCN 3-Phase Squirrel Cage Motor - IE4
Part Number: 3GBA203420-BDNCN
Quick Summary
ABB 3GBA203420-BDNCN is a 22 kW IE4 three-phase motor designed for demanding industrial drives. This solution delivers reliable torque and consistent performance across varying loads, reducing downtime and energy waste in continuous operation. For engineers facing rising energy costs and extended maintenance cycles, the IE4 efficiency rating, IP55 enclosure, and ICFL insulation provide measurable value in harsh environments. The cast iron frame with IMB5/IM3001 mounting supports long service life, while 400 V at 50 Hz aligns with worldwide machine specs. In practice, this motor enables easier retrofit and scalable deployment across conveyors, pumps, and processing lines, delivering lower total cost of ownership.
Product Information
ABB Type Designation
M2BAX 200MLB 6
Invoice Description
M2BAX 200MLB 6
Product Name
3-Phase squirrel cage motor
Product Type
CBA4__M2BAX_IE4_CI
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Selling Unit of Measure
piece
Country of Origin
China (CN)
Customs Tariff Number
85015230
Medium Description
22kW, 6 Poles, Frame Size 200, 3 Phases, 400V, 50Hz, IP55 Enclosure, IMB5/IM3001 Mounting (3GBA203420-BDNCN)
Short Description
22kW, 6P, Frame Size 200, 3PH, 400V, 50Hz, IP55, IMB5/IM3001
Electrical Data
Connection Configuration
D
Temperature Class Default
--
Input Voltage (Uin)
400 V
Frequency (f)
50 Hz
Output Power
22 kW
Altitude
1000 m
Ambient Temperature
40 °C
IC Class
IC411
IE Class Data (50 Hz)
IE Class IE4 | Full Load (100%) 93.7 % | Partial Load (75%) 94.1 % | Partial Load (50%) 93.6 %
IE Class Data (60 Hz)
IE Class IE4 | Full Load (100%) 94.1 % | Partial Load (75%) 94.1 % | Partial Load (50%) 93.3 %
IP Class
IP55
Insulation Class
ICLF
Direction of Rotation
Both sides
Number of Poles (High)
6
Two Speed Motor
No
Type of Duty
S1
Voltage Code
D
Frame Material
Cast Iron
Frame Size
200
Bearing
6312-2Z/C3
Bearing NDE
6212-2Z/C3
IM Class
IMB5 IM3001
Terminator Box Location
D-End top
Package Level 1 Units
0 pallet (lift)
Product Net Depth / Length
810 mm
Product Net Height
515 mm
Product Net Width
378 mm
Product Net Weight
272 kg
Gross Weight
282 kg
UNSPSC
26101100
IE4 efficiency reduces energy consumption during peak loads, cutting electricity bills and extending motor life through gentler current profiles. In factory floors with continuous-running drives, this translates to a measurable reduction in operating costs and improved sustainability. The IP55 enclosure and cast iron frame protect against dust and moisture, enabling reliable operation in challenging environments such as manufacturing floors and packaging lines. The IMB5/IM3001 mounting compatibility simplifies installation and retrofit projects, while the 6-pole design balances start-up torque and running efficiency for varied load profiles. With a 400 V, 50 Hz supply and a 22 kW rating, the motor delivers consistent performance across conveyors, pumps, and material-handling equipment. Robust bearings (6312-2Z/C3) and ICFL insulation contribute to longer service intervals and reduced maintenance costs. This solution is optimized for low total cost of ownership in industrial settings, including high-altitude or high-temperature environments up to 1000 m and 40 °C ambient conditions.
