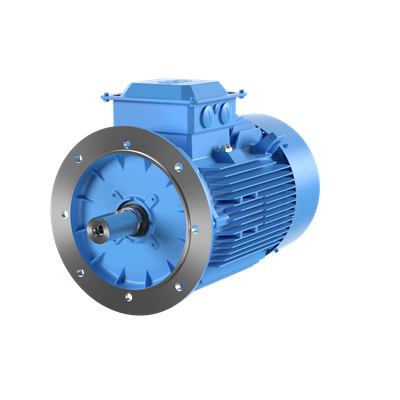

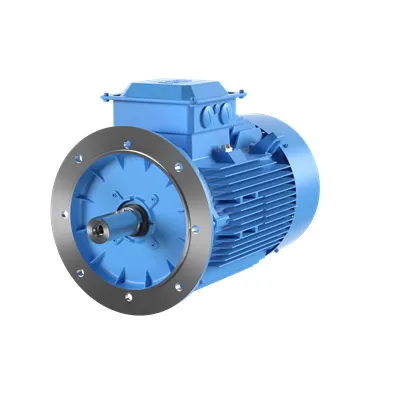

ABB 3GBA203420-BDNIN 3-Phase Squirrel Cage Motor - IE4/IP55
Part Number: 3GBA203420-BDNIN
Quick Summary
ABB 3GBA203420-BDNIN is a 22 kW IE4 cast-iron motor for robust industrial drives. Engineers confront energy waste, heat buildup, and downtime in demanding production lines, so premium efficiency and rugged construction matter. The motor features IP55 protection and IC411 insulation, reliable up to 50 °C ambient and 1,000 m altitude, with IMB5/IM3001 mounting for easy installation. It aligns with CE standards and delivers sustained performance under S1 duty, supporting long life in harsh environments. For buyers, this means lower energy costs, reduced maintenance, and predictable lifecycle budgeting, while maintaining compatibility with standard 3-phase electrical systems and ABB design philosophy.
Product Information
ABB Type Designation
M2BAX 200MLB 6
Product Name
3-Phase squirrel cage motor
Product Type
IBA4__M2BAX_IE4_CI
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Selling Unit of Measure
piece
Country of Origin
India (IN)
Customs Tariff Number
85015230
Medium Description
22kW, 6 Poles, Frame Size 200, 3 Phases, 415V, 50Hz, IP55 Enclosure, IMB5/IM3001 Mounting (3GBA203420-BDNIN)
Short Description
22kW, 6P, Frame Size 200, 3PH, 415V, 50Hz, IP55, IMB5/IM3001
Electrical Data
Connection Configuration
D
Temperature Class Default
--
Input Voltage (Uin)
415 V
Frequency (f)
50 Hz
Output Power
22 kW
Altitude
1000 m
Ambient Temperature
50 °C
IC Class
IC411
IE Class Data (50 Hz)
IE Class IE4 | Full Load (100%) 93.7 % | Partial Load (75%) 93.8 % | Partial Load (50%) 93.2 %
IP Class
IP55
Insulation Class
ICLF
Direction of Rotation
Both sides
Number of Poles (High)
6
Two Speed Motor
No
Type of Duty
S1
Voltage Code
D
Frame Material
Cast Iron
Frame Size
200
Bearing
6212-2Z/C3
Bearing NDE
6209-2Z/C3
IM Class
IMB5 IM3001
Terminator Box Location
D-End top
Package Level 1 Units
0 pallet (lift)
Product Net Depth / Length
810 mm
Product Net Height
515 mm
Product Net Width
378 mm
Product Net Weight
269 kg
Gross Weight
279 kg
UNSPSC
26101100
IE4 efficiency directly reduces operating losses in continuous-duty drives, yielding lower energy costs and a faster return on investment. The motor’s full-load efficiency of 93.7% at 50 Hz translates to tangible life-cycle savings for pumps, fans, and conveyors using 415 V networks. Rugged cast-iron framing supports long service life in harsh environments, lowering maintenance intervals and downtime. IP55 protection guards against dust and moisture ingress, improving reliability in factories, mines, and outdoor installations. The IMB5/IM3001 mounting compatibility streamlines installation and interchangeability with existing ABB and third-party systems, reducing retrofit complexity. Bearing configurations (6212-2Z/C3 and 6209-2Z/C3) extend bearing life and ensure stable operation at 50 °C ambient temperatures. The 200 frame size, Delta (D) connection, and 6-pole design suit standard industrial drives while maintaining a compact footprint. Altitude up to 1,000 m and insulation class ICLF further support sustained performance in challenging plants. Overall, this motor supports predictable maintenance and lower total cost of ownership for 3-phase applications.
Get a Quick Quote for a ABB 3GBA203420-BDNIN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3GBA203420-BDNIN?
Enquire Now
FAQs
This motor uses a Delta (D) connection for 415 V 3-phase networks and mounts via IMB5/IM3001, frame size 200 with a 269 kg net weight. Start with proper alignment on a rigid base, confirm the IP55 enclosure seals are intact, and secure the terminator box at the D-End top. Check bearing clearance and ensure cooling meets ambient conditions up to 50 °C and altitude up to 1000 m. Use compatible VFDs or soft starters as needed.
The motor delivers IE4 efficiency with Full Load around 93.7% at 50 Hz. At partial loads (75%), efficiency remains near 93.8%, and at 50% load it stays around 93.2%. These figures support lower energy costs in continuous-duty applications such as pumps, fans, and conveyors on 415 V systems.
Yes. It is designed for ambient temperatures up to 50 °C and elevations up to 1,000 meters. The IP55 enclosure plus IC411 insulation class ensure reliable operation and protection against dust, moisture, and heat, making it suitable for harsh manufacturing, mining, and outdoor settings.
The motor features IE4 efficiency and an IP55 enclosure, backed by IC411 insulation and ICLF insulation class. It is configured for 3-phase operation with a 6-pole design and is suitable for continuous S1 duty. Mounting is IMB5/IM3001, with CE alignment for European compliance.
The primary ROI driver is energy savings from IE4 efficiency, together with reduced downtime due to rugged IP55 protection and durable cast-iron construction. Long bearing life (6212-2Z/C3 and 6209-2Z/C3) lowers maintenance, while standard 3-phase 415 V systems simplify integration. Together, these factors improve uptime, reduce maintenance costs, and lower total cost of ownership over the motor’s life.
