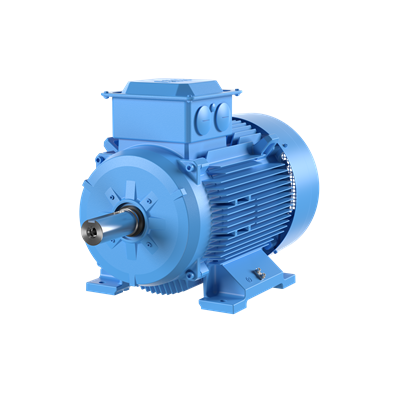

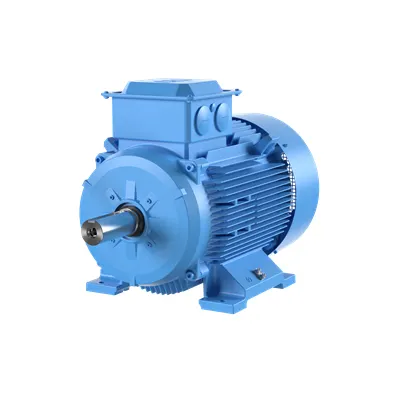

ABB 3GBA221210-ADNIN 3-Phase Squirrel Cage Motor - IE4 Cast Iron
Part Number: 3GBA221210-ADNIN
Quick Summary
ABB 3GBA221210-ADNIN 3-Phase Squirrel Cage Motor is a high-efficiency motor designed for demanding industrial drives. It delivers reliable performance in pumps, fans, and conveyors where uptime and energy cost matter. For engineers facing rising power bills and downtime, this IE4 cast-iron motor helps reduce lifecycle costs while maintaining rugged protection. With IP55 enclosure, ICFL insulation, and IMB3/IM1001 mounting compatibility, it suits harsh environments and installation standards. This model is made for 415 V, 50 Hz operation at up to 50 °C ambient and up to 1000 m altitude, ensuring consistent performance in challenging sites. The combination of robust construction and precise design supports long-term plant reliability and predictable maintenance planning.
Product Information
ABB Type Designation
M2BAX 225SMA 2
Product Name
3-Phase squirrel cage motor
Product Type
IBA4__M2BAX_IE4_CI
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Selling Unit of Measure
piece
Country of Origin
India (IN)
Customs Tariff Number
85015290
Medium Description
45kW, 2 Poles, Frame Size 225, 3 Phases, 415V, 50Hz, IP55 Enclosure, IMB3/IM1001 Mounting (3GBA221210-ADNIN)
Short Description
45kW, 2P, Frame Size 225, 3PH, 415V, 50Hz, IP55, IMB3/IM1001
Electrical Data
Connection Configuration
D
Temperature Class Default
--
Input Voltage (Uin)
415 V
Frequency (f)
50 Hz
Output Power
45 kW
Altitude
1000 m
Ambient Temperature
50 °C
IC Class
IC411
IE Class Data (50 Hz)
IE Class IE4 | Full Load (100%) 95.0 % | Partial Load (75%) 95.2 % | Partial Load (50%) 94.5 %
IP Class
IP55
Insulation Class
ICLF
Direction of Rotation
Both sides
Number of Poles (High)
2
Two Speed Motor
No
Type of Duty
S1
Voltage Code
D
Frame Material
Cast Iron
Frame Size
225
Bearing
6213-2Z/C3
Bearing NDE
6210-2Z/C3
IM Class
IMB3 IM1001
Terminator Box Location
D-End top
Package Level 1 Units
0 pallet (lift)
Product Net Depth / Length
864 mm
Product Net Height
558 mm
Product Net Width
434 mm
Product Net Weight
368 kg
Gross Weight
378 kg
UNSPSC
26101100
Feature: IE4 efficiency class in a 45 kW, 2-pole design → Business Impact: Significantly lowers energy consumption and operating costs on continuous-duty loads → Application: Pumps and conveyors in process industries where electrical efficiency translates to measurable ROI. Feature: Cast Iron frame and IP55 enclosure → Business Impact: Enhanced durability and protection against dust and water ingress, reducing repair cycles and downtime → Application: Outdoor or dirty environments such as foundries, food and beverage, and chemical processing. Feature: ICFL insulation with IC411 equivalent ratings → Business Impact: Higher thermal endurance and reliability under elevated ambient temperatures → Application: Long-running motors in hot plants or with high ambient heat, enabling sustained Full Load operation. Feature: 415 V, 50 Hz, D connection configuration for a compact footprint → Business Impact: Simplified electrical installation and reduced cabinet size, lowering upfront wiring and space costs → Application: Standard industrial electrical rooms and retrofit projects. Feature: IMB3 IM1001 mounting compatibility and 2-pole, frame 225 → Business Impact: Easier integration with existing bases and couplings, lowering installation time and risk → Application: OEM and maintenance integration in packaging, material handling, and HVAC systems. Feature: 1000 m altitude and 50 °C ambient tolerance → Business Impact: Reliable operation in challenging sites without derating, improving project feasibility → Application: Remote plants, mining sites, and distributed facilities. Feature: 3GBA221210-ADNIN product designation with ABB design standards → Business Impact: Proven design with robust service support and spare parts availability → Application: Global deployments with consistent performance and serviceability. These features collectively enable energy savings, longer service life, and smoother maintenance planning, while accommodating common objections about installation complexity and compatibility by offering established mounting, enclosure, and electrical configurations. Long-term, customers benefit from predictable performance, reduced total cost of ownership, and easier procurement through a standardized design language across ABB motors.
Get a Quick Quote for a ABB 3GBA221210-ADNIN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3GBA221210-ADNIN?
Enquire Now
FAQs
This motor uses a D connection configuration with frame size 225 and IMB3/IM1001 mounting. It suits compatible bases and enclosures, enabling straightforward retrofits and consistent alignment with existing drives while maintaining IP55 protection and 2-pole operation.
Key specs include 45 kW output, 2 poles, 415 V, 50 Hz, IE4 efficiency, IP55 enclosure, ICFL insulation, and 1000 m altitude tolerance. It is ideal for pumps, fans, and conveyors in harsh industrial environments requiring high efficiency and rugged construction.
Yes. The product is designed for IMB3/IM1001 mounting, ensuring compatibility with common ABB installation standards and supporting straightforward, reliable mounting in most industrial motor bases.
The motor meets IE4 efficiency class requirements, IP55 protection, and ICFL insulation, with a 2-pole, 3-phase design for S1 duty. It is built to perform reliably in environments up to 50 °C ambient and 1000 m altitude.
Minimum order quantity is 1 piece, with origin listed as India (IN). This supports single-unit procurement as well as scale deployments across multiple sites.
