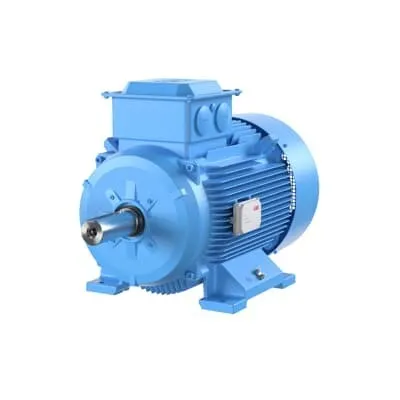

ABB 3GBA221210-BDFCN 3-Phase squirrel cage motor - IP55
Part Number: 3GBA221210-BDFCN
Quick Summary
ABB 3GBA221210-BDFCN 3-Phase squirrel cage motor delivers reliable, efficient power for standard industrial drives. Engineers often struggle with heat buildup, downtime, and maintenance in demanding environments, making predictability a priority. This motor delivers IP55 ingress protection, IC411 insulation, and IE3 efficiency across 50 and 60 Hz, helping reduce energy use and cooling costs while improving reliability. Designed for seamless integration with ABB drives and common 225 frame mounting, it supports quick installation and predictable replacement cycles. With a cast-iron frame, IMB5 IM3001 mounting, and a 1000 m altitude rating at 40 °C ambient, it suits manufacturing lines, pumps, fans, and compressors, delivering long service life and lower total cost of ownership.
Product Information
ABB Type Designation
M2BAX 225SMA 2
Invoice Description
M2BAX 225SMA 2
Product Name
3-Phase squirrel cage motor
Product Type
CBA3__M2BAX_CI
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Selling Unit of Measure
piece
Country of Origin
China (CN)
Customs Tariff Number
85015230
Electrical Data
Temperature Class Default
--
Altitude
1000 m
Ambient Temperature
40 °C
IC Class
IC411
IE Class Data (50 Hz)
IE Class IE3 | Full Load (100%) 94.0 % | Partial Load (75%) 94.0 % | Partial Load (50%) 93.3 %
IE Class Data (60 Hz)
IE Class IE3 | Full Load (100%) 93.6 % | Partial Load (75%) 93.1 % | Partial Load (50%) 91.8 %
IP Class
IP55
Insulation Class
ICLF
Direction of Rotation
Both sides
Number of Poles (High)
2
Two Speed Motor
No
Type of Duty
S1
Voltage Code
D
Frame Material
Cast Iron
Frame Size
225
Bearing
6213-2Z/C3
Bearing NDE
6210-2Z/C3
IM Class
IMB5 IM3001
Terminator Box Location
D-End top
Package Level 1 Units
0 pallet (lift)
Product Net Weight
278 kg
Gross Weight
288 kg
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
UNSPSC
26101100
Feature: Cast iron frame provides high structural rigidity and durable heat dissipation. Impact: Reduces vibration, extends bearing life, and minimizes downtime in heavy-use environments. Application: Ideal for pumps, fans, and conveyors in demanding production lines. Feature: IP55 protection level guards against dust ingress and water spray. Impact: Improves reliability in dirty or humid facilities, lowering cleaning and maintenance costs. Application: Suitable for wash-down areas and outdoor installations. Feature: IE3 efficiency class with measured performance at 50 Hz and 60 Hz. Impact: Delivers energy savings, lower operating costs, and compliance with energy directives. Application: Best for continuous duty applications with long run times. Feature: S1 continuous duty, two-pole configuration with 225 frame and D-End top terminator box. Impact: Enables predictable, uninterrupted operation and straightforward wiring during installation. Application: Standard industrial drives and automated lines requiring steady torque. Feature: Altitude rating up to 1000 m and ambient temperature up to 40 °C. Impact: Ensures performance and reliability in moderate-high elevation facilities and hot environments. Application: Manufacturing floors, process lines, and HVAC-related machinery. Feature: Dual bearing arrangement (6213-2Z/C3 and 6210-2Z/C3) with IMB5 IM3001 mounting. Impact: Enhanced load handling, smoother startup, and easier maintenance. Application: Heavy machinery with demanding load profiles and long service intervals.
