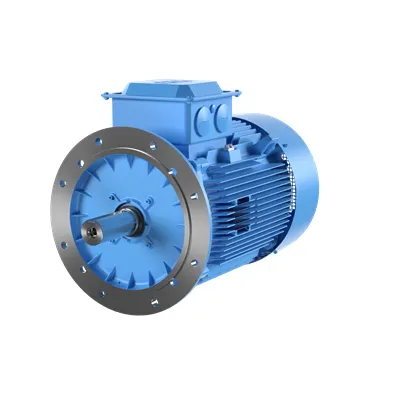

ABB 3GBA221210-BDNIN 3-Phase Motor - IE4 Premium
Part Number: 3GBA221210-BDNIN
Quick Summary
ABB 3GBA221210-BDNIN is a 45 kW 3-phase squirrel cage motor designed for heavy-duty industrial drives. It delivers reliable, energy-efficient performance for pumps, fans and conveyors in manufacturing and process environments. If you’re grappling with soaring energy costs and unexpected downtime, this motor helps reduce both through high IE4 efficiency and robust protection. With IP55 enclosure and IC411 insulation, it thrives in demanding conditions, while IMB5/IM3001 mounting compatibility supports straightforward installation. The model’s Indian origin and Cast Iron frame underline durability, making it a smart choice for long-term plant uptime and cost of ownership reductions, especially in high-temperature or altitude-limited installations.
Product Information
ABB Type Designation
M2BAX 225SMA 2
Product Name
3-Phase squirrel cage motor
Product Type
IBA4__M2BAX_IE4_CI
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Selling Unit of Measure
piece
Country of Origin
India (IN)
Customs Tariff Number
85015290
Medium Description
45kW, 2 Poles, Frame Size 225, 3 Phases, 415V, 50Hz, IP55 Enclosure, IMB5/IM3001 Mounting (3GBA221210-BDNIN)
Short Description
45kW, 2P, Frame Size 225, 3PH, 415V, 50Hz, IP55, IMB5/IM3001
Electrical Data
Connection Configuration
D
Temperature Class Default
--
Input Voltage (Uin)
415 V
Frequency (f)
50 Hz
Output Power
45 kW
Altitude
1000 m
Ambient Temperature
50 °C
IC Class
IC411
IE Class Data (50 Hz)
IE Class IE4 | Full Load (100%) 95.0 % | Partial Load (75%) 95.2 % | Partial Load (50%) 94.5 %
IP Class
IP55
Insulation Class
ICLF
Direction of Rotation
Both sides
Number of Poles (High)
2
Two Speed Motor
No
Type of Duty
S1
Voltage Code
D
Frame Material
Cast Iron
Frame Size
225
Bearing
6213-2Z/C3
Bearing NDE
6210-2Z/C3
IM Class
IMB5 IM3001
Terminator Box Location
D-End top
Package Level 1 Units
0 pallet (lift)
Product Net Depth / Length
864 mm
Product Net Height
558 mm
Product Net Width
434 mm
Product Net Weight
368 kg
Gross Weight
378 kg
UNSPSC
26101100
Feature → Business Impact → Application: IE4 efficiency for significant energy savings across continuous operation reduces operating costs in circulating pumps and fans, while supporting corporate sustainability goals. Application: Water treatment, chemical processing, and food & beverage lines where energy intensity is high and downtime must be minimized. Feature → Business Impact → Application: Cast Iron frame and robust bearing arrangement (6213-2Z/C3, 6210-2Z/C3) increase mechanical resilience, lowering maintenance cycles and improving uptime in dusty or wet environments. Application: Mining conveyors, bulk material handling and metal fabrication where harsher surroundings demand durable construction. Feature → Business Impact → Application: IP55 enclosure and IC411 insulation provide reliable protection against dust and moisture, enabling operation at 50 °C ambient with up to 1000 m altitude. Application: Outdoor or semi-indoor installations near heat sources or in limited ventilation. Feature → Business Impact → Application: D connection configuration and 2-pole, 415 V, 50 Hz supply simplifies electrical wiring and start-up, reducing installation time and commissioning risk. Application: Standard factory floors, automated lines, and retrofits. Feature → Business Impact → Application: IMB5 IM3001 mounting compatibility ensures flexible alignment with existing drives and frames, lowering integration costs. Application: Retrofit projects or new lines requiring quick, predictable installation. Feature → Business Impact → Application: Two-speed motor capability is not present here, but the design supports consistent torque delivery for steady processes. Application: Continuous-process equipment where steady torque is important. This combination of efficiency, protection, and mounting flexibility aligns with high-demand industrial drives while addressing common objections about ruggedness, install-time, and lifecycle cost.
Get a Quick Quote for a ABB 3GBA221210-BDNIN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3GBA221210-BDNIN?
Enquire Now
FAQs
This motor uses IMB5 IM3001 mounting compatibility with a D-type electrical connection configuration. It operates on a 3-phase, 415 V, 50 Hz supply, with a 2-pole configuration, designed for straightforward wiring and reliable alignment with common ABB drive systems and standard plant electrical panels.
The motor is IE4 efficient, delivering Full Load efficiency around 95% and maintaining high efficiency under partial loads (e.g., 75% and 50%). This performance supports energy savings in continuous duty applications like pumps and fans, while preserving torque and reliability across operating points.
Yes. It features an IP55 enclosure and IC411 insulation class, enabling protection against dust and moisture while tolerating ambient temperatures up to 50 °C and service at altitudes up to 1000 m. Cast Iron frame and robust bearings further enhance durability in harsh plant conditions.
Ideal for heavy-duty drives in manufacturing and process industries, including pumps, fans, and conveyors. The combination of high efficiency, durable cast iron construction, and protective enclosure supports continuous operation in demanding environments while reducing energy costs and maintenance intervals.
Expect reduced downtime due to robust bearings and a rugged frame, with energy savings from IE4 efficiency contributing to lower operating costs. The motor’s mounting and wiring simplicity shorten installation and commissioning, improving total cost of ownership during retrofit projects or new builds.
