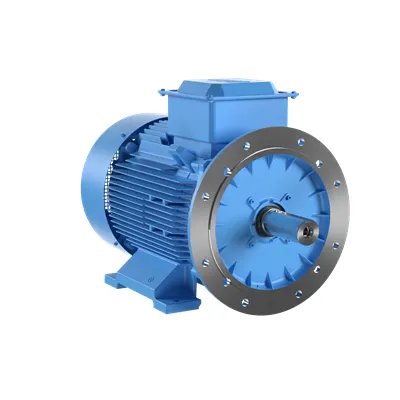

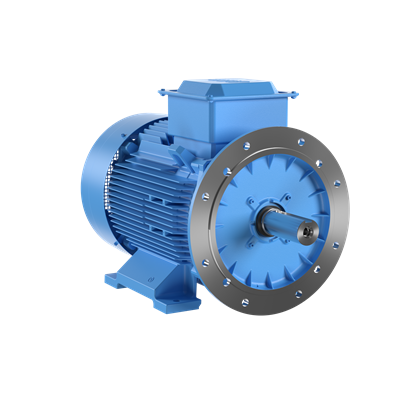

ABB M2BAX 225SMA 2 3-Phase squirrel cage motor - IP55
Part Number: 3GBA221210-BST
Quick Summary
ABB M2BAX 225SMA 2 3-Phase squirrel cage motor powers general‑purpose drives in manufacturing settings. It helps reduce startup delays and torque fluctuations that challenge reliable process control. Key certifications include IP55 ingress protection, ICFL insulation, and IE1 efficiency, supporting safe, compliant operation. This motor aligns with ABB's rugged general-purpose line, offering cost-effective maintenance and compatibility with standard 3‑phase drives, conveyors, pumps, and fans. Operating ambient up to 40°C and altitudes up to 1000 m, its cast iron frame resists vibration, enabling long service life. Designed for S1 continuous duty, it provides predictable performance for OEMs seeking reliable, easy-to-source motor solutions.
Product Information
ABB Type Designation
M2BAX 225SMA 2
Invoice Description
M2BAX 225SMA 2
Product Name
3-Phase squirrel cage motor
Product Type
EBA1__M2BAX_CI
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Selling Unit of Measure
piece
Country of Origin
China (CN)
Customs Tariff Number
85015290
Electrical Data
Temperature Class Default
--
Altitude
1000 m
Ambient Temperature
40 °C
IC Class
IC411
IE Class Data (50 Hz)
IE Class IE1 | Full Load (100%) 91.7 % | Partial Load (75%) 91.6 % | Partial Load (50%) 90.4 %
IE Class Data (60 Hz)
IE Class IE1 | Full Load (100%) 91.7 % | Partial Load (75%) 91.0 % | Partial Load (50%) 89.0 %
IP Class
IP55
Insulation Class
ICLF
Direction of Rotation
Both sides
Number of Poles (High)
2
Two Speed Motor
No
Type of Duty
S1
Voltage Code
S
Frame Material
Cast Iron
Frame Size
225
Bearing
6213-2Z/C3
Bearing NDE
6210-2Z/C3
IM Class
IMB5 IM3001
Terminator Box Location
D-End top
Package Level 1 Units
0 pallet (lift)
Product Net Weight
275 kg
Gross Weight
285 kg
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
UNSPSC
26101100
Feature → Business Impact → Application: The 225 cast iron frame delivers exceptional rigidity and vibration damping for continuous operation in industrial spaces. This robust construction translates to lower maintenance costs and longer service intervals, especially in conveyors, pumps, and fans where reliable starts matter. Feature → Business Impact → Application: IP55 protection and ICFL insulation boost reliability in dusty and humid plants, protecting windings and bearings during shifts with variable ambient conditions. This combination supports predictable performance across environments up to 40°C and up to 1000 m altitude, simplifying compliance with site standards. Feature → Business Impact → Application: IE1 efficiency with Full Load 91.7% at 50 Hz and 60 Hz means tangible energy savings over extended runtimes. Coupled with standard duty S1, this motor reduces operating costs for continuous processes like pumping or material handling. Feature → Business Impact → Application: Easy installation and safe maintenance are facilitated by a D-End top terminator box and the 225 frame, with bearings 6213-2Z/C3 and 6210-2Z/C3 supporting smooth starts and longevity. The IM class IMB5 IM3001 attests to alignment with heavy-duty OEM specs. Feature → Business Impact → Application: The motor’s straightforward ordering (MOQ 1 piece) and compatibility with standard 3‑phase drives simplify stocking and procurement, reducing lead times and ensuring quick replacement in production lines.
Get a Quick Quote for a ABB 3GBA221210-BST
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3GBA221210-BST?
Enquire Now
FAQs
The M2BAX 225SMA 2 uses a cast iron 225 frame with a D-End top terminator box and standard 2-pole configuration, making it compatible with common 3‑phase drives and control panels. It features IMB5 IM3001 bearing class and IP55 protection, which enables straightforward integration into conveyors, pumps, and fans without special mounting hardware.
Key specs include a 2-pole design with IE1 efficiency ratings at 50 Hz and 60 Hz (Full Load 91.7%), IP55 ingress protection, ICFL insulation class, and a voltage code of S. Altitude tolerance is up to 1000 m with ambient operation up to 40°C, supporting reliable operation in varied plant environments.
Yes. The motor is rated for continuous operation (Duty type S1) and is designed for steady-state running. Its robust cast iron frame, IP55 protection, and IE1 efficiency make it well-suited for long, uninterrupted production runs in manufacturing environments such as material handling and process cooling.
Best-suited applications include conveyors, pumps, and fans in general industrial settings. The 225 frame with IP55 and ICFL insulation supports harsh environments, while the S1 duty and 2-pole design deliver reliable torque and consistent performance across typical OEM drive systems.
The motor’s cast iron frame and robust bearings (6213-2Z/C3 and 6210-2Z/C3) reduce wear and vibration, extending service life. IP55 protection guards against dust and moisture, lowering cleaning cycles, and the IE1 efficiency reduces energy costs over multiple years of operation.
