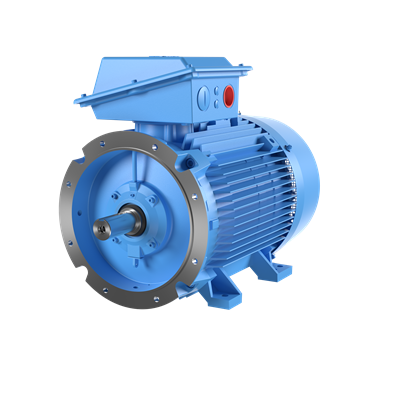

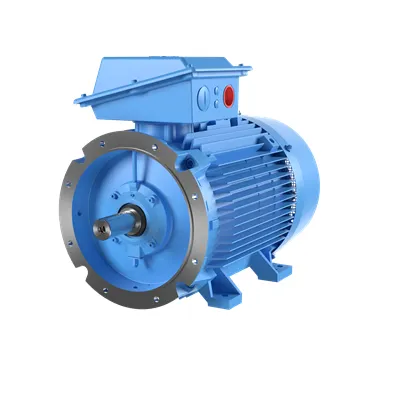

ABB 3GBA312410-BDT 3-Phase Squirrel Cage Motor - IP55
Part Number: 3GBA312410-BDT
Quick Summary
ABB 3GBA312410-BDT is a robust 3-phase squirrel cage motor for industrial drives in packaging, material handling, and processing lines. Engineers often grapple with downtime and maintenance in harsh plant environments, and this motor is designed to minimize those risks with a durable cast-iron frame and sealed construction. It carries IP55 protection, ICFL insulation, and IE1 efficiency ratings to support safe operation and energy performance on daily cycles. This solution also offers straightforward installation and reliable, long-term performance, helping you reduce lifecycle costs while maintaining production throughput and equipment uptime.
Product Information
Extended Description
3GBA312410-BDT ABB: M2BAX 315MLA 4
ABB Type Designation
M2BAX 315MLA 4
Invoice Description
M2BAX 315MLA 4
Product Name
3-Phase squirrel cage motor
Product Type
EBA1__M2BAX_CI
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Selling Unit of Measure
piece
Country of Origin
China (CN)
Customs Tariff Number
85015381
Electrical Data
Temperature Class Default
--
Altitude
1000 m
Ambient Temperature
40 °C
IC Class
IC411
IE Class Data (50 Hz)
IE Class IE1 | Full Load (100%) 94.0 % | Partial Load (75%) 94.1 % | Partial Load (50%) 93.5 %
IE Class Data (60 Hz)
IE Class IE1 | Full Load (100%) 94.5 % | Partial Load (75%) 94.1 % | Partial Load (50%) 93.0 %
IP Class
IP55
Insulation Class
ICLF
Direction of Rotation
Both sides
Number of Poles (High)
4
Two Speed Motor
No
Type of Duty
S1
Voltage Code
D
Frame Material
Cast Iron
Frame Size
315
Bearing
6319/C3
Bearing NDE
6316/C3
IM Class
IMB5 IM3001
Terminator Box Location
Top
Package Level 1 Units
0 pallet (lift)
Product Net Weight
1012 kg
Gross Weight
1032 kg
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
UNSPSC
26101100
The 315 frame size paired with a cast iron frame delivers exceptional mechanical strength, improving vibration resistance and reducing risk of bearing damage in high-load conveyors and mixers. This translates to fewer unscheduled stops and lower maintenance costs, supporting reliable uptime in manufacturing environments. IP55 protection guards against dust and water ingress, extending service intervals and reducing repair frequency in dusty or humid facilities, while the insulation class ICFL safeguards winding integrity during temperature spikes, contributing to longer motor life and lower replacement risk. IE1 efficiency ratings—with Full Load 94.0% at 50 Hz and 94.5% at 60 Hz—deliver measurable energy savings across continuous operations, shrinking operating expenses in power-intensive lines. The bearing configuration (6319/C3 and 6316/C3) and IMB5 IM3001 class support heavy-duty, long-life operation with predictable performance. The motor’s top-mounted terminator box and 315 frame simplify installation, wiring, and retrofits, enabling quick rollouts across multiple lines and minimizing downtime during upgrades. Designed for S1 duty, the motor runs reliably under continuous operation, making it a strong fit for demanding production schedules. With a weight of about 1012 kg net and 1032 kg gross, it offers stability on heavy-duty conveyors and machinery while meeting strict mounting footprints. The D voltage code and 4-pole design balance starting torque and running efficiency, providing smooth acceleration and reduced electrical stress on drives. These features collectively improve overall plant efficiency, energy management, and maintenance predictability for industrial motors and ABB equipment ecosystems.
Get a Quick Quote for a ABB 3GBA312410-BDT
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3GBA312410-BDT?
Enquire Now
FAQs
This motor uses a 315 frame with a top-mounted terminator box. For installation, ensure mounting feet and shaft alignment match the 315 frame standard, verify bearing clearance, and plan for a compatible drive or soft-start to manage inrush. The top box design simplifies wiring and reduces cabinet space requirements, speeding retrofit projects and minimizing downtime.
At 50 Hz, the motor achieves IE1 efficiency with Full Load around 94.0%, 75% load about 94.1%, and 50% load around 93.5%. At 60 Hz, Full Load is approximately 94.5%, with 75% and 50% loads near 94.1% and 93.0%, respectively. It is a 4-pole design with voltage code D, intended for S1 continuous operation.
Yes. The M2BAX-based design, 315 frame, cast iron construction, and IP55 ingress protection are optimized for continuous operation in challenging plants. The motor supports S1 duty, high ambient temperatures up to 40 °C, and up to 1000 m altitude, ensuring reliable performance in demanding processes.
Key ratings include IP55 protection and ICFL insulation class, with IE1 efficiency across standard 50 Hz and 60 Hz operation. Direction of rotation is both sides for flexible mounting, and the motor is designed for continuous service, aligning with common industrial safety and energy-efficiency expectations.
Energy efficiency (IE1) translates to lower electricity costs on continuous-running lines, while the cast-iron frame and sealed design reduce maintenance frequency by resisting dust, moisture, and thermal stress. The robust bearings (6319/C3 and 6316/C3) and IMB5 IM3001 class support long service life with fewer unplanned outages, delivering faster payback in high-throughput applications like conveyors and packaging lines.
