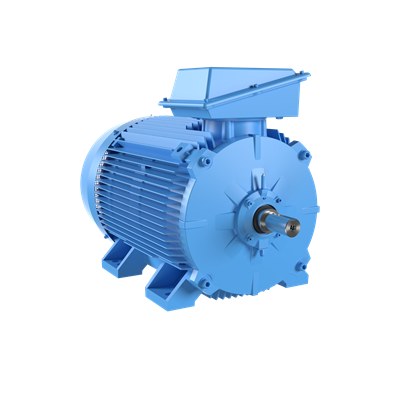

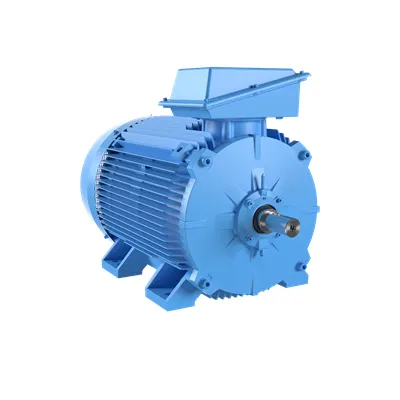

ABB 3GBA352210-BDT - 3-Phase Squirrel Cage IP55
Part Number: 3GBA352210-BDT
Quick Summary
The ABB 3GBA352210-BDT is a 3-phase squirrel cage motor designed for robust industrial processing and conveying applications. Engineers often face downtime and motor overheating in hot plant environments. With IP55 enclosure, IC411 insulation class, and IE1 efficiency, this motor meets common safety, reliability, and energy standards. Its cast-iron 355-frame body and top-entry terminal box simplify installation and spare-part planning, delivering real business value for OEMs and maintenance teams. The product ships with a minimum order quantity of 1 piece, supporting fast procurement cycles. Made in China (CN), with tariff code 85015381, this motor aligns with global trade requirements and provides clear sourcing data for procurement teams.
Product Information
Extended Description
3GBA352210-BDT ABB: M2BAX 355SMA 4
ABB Type Designation
M2BAX 355SMA 4
Invoice Description
M2BAX 355SMA 4
Product Name
3-Phase squirrel cage motor
Product Type
EBA1__M2BAX_CI
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Selling Unit of Measure
piece
Country of Origin
China (CN)
Customs Tariff Number
85015381
Electrical Data
Temperature Class Default
--
Altitude
1000 m
Ambient Temperature
40 °C
IC Class
IC411
IE Class Data (50 Hz)
IE Class IE1 | Full Load (100%) 94.0 % | Partial Load (75%) 94.0 % | Partial Load (50%) 93.0 %
IE Class Data (60 Hz)
IE Class IE1 | Full Load (100%) 94.5 % | Partial Load (75%) 94.4 % | Partial Load (50%) 93.0 %
IP Class
IP55
Insulation Class
ICLF
Direction of Rotation
Both sides
Number of Poles (High)
4
Two Speed Motor
No
Type of Duty
S1
Voltage Code
D
Frame Material
Cast Iron
Frame Size
355
Bearing
6322/C3
Bearing NDE
6316/C3
IM Class
IMB5 IM3001
Terminator Box Location
Top
Package Level 1 Units
0 pallet (lift)
Product Net Weight
1419 kg
Gross Weight
0 kg
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
UNSPSC
26101100
IP55-rated enclosure and IC411 insulation protect the motor in dusty and washdown-prone environments, reducing insulation faults and downtime. This translates to lower maintenance costs and a longer service life for continuous processes, making it ideal for conveyors, pumps, and processing lines in manufacturing. IE1 efficiency data at 50 Hz and 60 Hz delivers tangible energy savings across running profiles, lowering operating costs for light to moderate-load applications such as packaging lines and material handling. The rugged cast-iron frame (355) with bearings 6322/C3 supports high-inertia loads and harsh service conditions, enhancing reliability in metalworking, plastics, and automotive production lines. A 4-pole design with S1 continuous duty ensures dependable operation in nonstop processing equipment, while the top-terminal box enables quick wiring and straightforward panel integration, reducing commissioning time. The M2BAX designation and 355SMA configuration ensure compatibility with standard OEM interfaces, simplifying procurement and spare-parts planning for retrofit projects.
