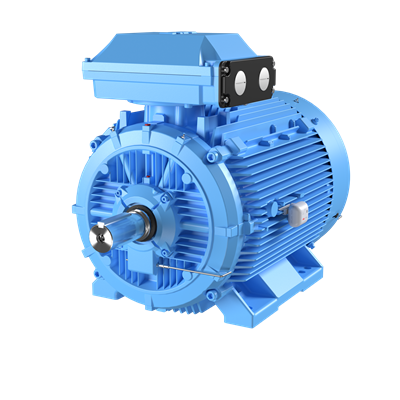

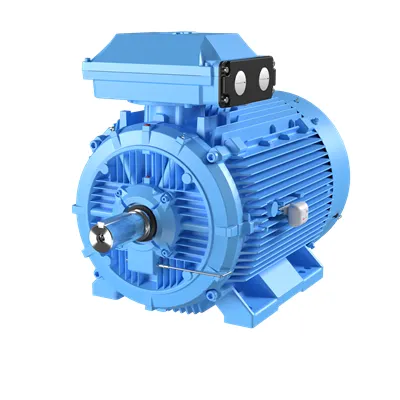

ABB 3GBC311433-AXG 3-Phase squirrel cage motor - IC416
Part Number: 3GBC311433-AXG
Quick Summary
ABB 3GBC311433-AXG 3-Phase squirrel cage motor drives demanding industrial equipment in conveyors, pumps, and processing lines. Users often face downtime and supply delays when replacements aren’t readily compatible with existing drives. This design pairs IP55 protection and IC416 insulation with IMB3 IM1001 mounting to endure dusty, damp factory floors while simplifying installation. The robust cast iron frame and a 2-pole, S1-duty configuration support consistent operation under 40 °C ambient conditions or up to 1000 m altitude. By leveraging common ABB interfaces and standard mounting, procurement and spare-part management become more predictable, reducing total cost of ownership while enabling faster line startups and sustainable maintenance programs.
Product Information
Extended Description
3GBC311433-AXG ABB: M3BC 315MLC 2
ABB Type Designation
M3BC 315MLC 2
Invoice Description
M3BC 315MLC 2
Product Name
3-Phase squirrel cage motor
Product Type
3BC0__M3BC_CI
Made To Order
No
Minimum Order Quantity
1 piece
Selling Unit of Measure
piece
Country of Origin
Finland (FI) | China (CN)
Customs Tariff Number
85015381
Electrical Data
Temperature Class Default
--
Altitude
1000 m
Ambient Temperature
40 °C
IC Class
IC416
IP Class
IP55
Insulation Class
ICLF
Number of Poles (High)
2
Two Speed Motor
No
Type of Duty
S1
Voltage Code
X
Frame Material
Cast Iron
Frame Size
315
IM Class
IMB3 IM1001
Package Level 1 Units
0 pallet (lift)
Product Net Weight
1260 kg
Gross Weight
1280 kg
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
UNSPSC
26101100
Feature: Cast iron frame and 315 frame size provide rugged mechanical integrity with reduced vibratory stress. Business Impact: Longer bearing life, lower maintenance costs, and easier mounting on existing bases. Application: Suitable for heavy-duty conveyors and process lines in harsh environments. Feature: IP55 ingress protection and IC416 insulation rating ensure reliability in dusty and damp factory floors. Business Impact: Improved uptime and safer operation in high-temperature or humid settings. Application: Ideal for plants with frequent cleaning cycles or outdoor-adjacent equipment. Feature: 2-pole design delivering robust torque at standard industrial speeds; S1 continuous duty ensures predictable performance. Business Impact: Consistent drive profiles when paired with VFDs, lowering energy variability and wear. Application: Reliable for continuous operation in pumps and fans. Feature: Altitude up to 1000 m and ambient temperature up to 40 °C expand site applicability. Business Impact: Fewer site constraints, reducing project delay risk. Application: Global deployments in varied climates. Feature: IMB3 IM1001 mounting class simplifies mechanical integration with legacy ABB bases. Business Impact: Faster installation, lower rework, and improved serviceability. Application: Modular automation upgrades and plant modernization. Feature: Cast iron frame material and 315 frame size support compatibility with standard mounting kits and couplings. Business Impact: Seamless integration with existing drive trains and spare-part overlap. Application: Keeps stock lean while enabling quick changeovers in mixed production lines.
Get a Quick Quote for a ABB 3GBC311433-AXG
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3GBC311433-AXG?
Enquire Now
FAQs
The motor uses a 315 frame and cast iron construction with IMB3 IM1001 mounting. When installing, ensure proper foundation, compatible coupling or belt drive, and alignment tolerances to minimize vibration. Consider the 1280 kg gross weight for lifting equipment and confirm clearance for service access. It’s designed for straightforward integration with common ABB mounting patterns and drives.
IP55 provides protection against dust ingress and water jets, enabling reliable operation in moderately harsh environments. IC416 insulation supports higher temperature operation within the specified ambient limits, reducing thermal risk during steady-state loads. Together they enhance uptime, enabling longer maintenance intervals and safer operation in automated lines without frequent de-rating.
Yes. The 2-pole, S1 continuous-duty design is optimized for steady torque and reliable running in conveyors and pump applications. The cast iron frame, IP55 rating, and IC416 insulation support long service life in demanding environments, while standard ABB interfaces and mounting ease integration with existing control systems and variable-frequency drives.
Key classifications include IP55 ingress protection, IC416 insulation, and IMB3 IM1001 mounting. The design also aligns with standard industrial norms for 3-phase squirrel cage motors used in S1 duty. For end-to-end compliance, verify regional electrical standards and any plant-specific safety requirements in your integration plan.
The motor’s rugged cast iron frame, IP55 protection, and robust insulation contribute to reduced unplanned downtime and longer service intervals. Coupled with familiar ABB interfaces, installation and part stocking become streamlined, lowering total cost of ownership and speeding uptime. Expect improved lifecycle performance in conveyors and process lines with predictable maintenance planning.
