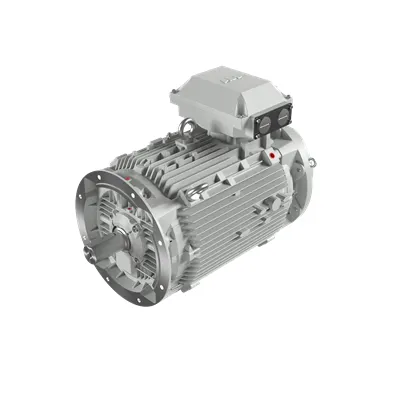

ABB 3GBG311230-ADG IE2 High Efficiency Motors - IP55
Part Number: 3GBG311230-ADG
Quick Summary
ABB 3GBG311230-ADG IE2 High Efficiency Motors power heavy-duty pumps and conveyors in industrial settings. When downtime and energy costs erode margins, you need motors that run cool, reliably, and with consistent performance. This design delivers IP55 protection, IE2 efficiency, and IC411 insulation for demanding environments, with a 315 frame and IMB3 mounting supporting seamless integration. Originating from Finland and China, it is engineered for easy installation, predictable spare parts, and long service life, helping maintenance teams plan for uptime. As a robust 3-phase motor, it supports energy reduction strategies and OEM procurement with a clear ROI path.
Product Information
Extended Description
3GBG311230-ADG ABB: IE2 High Efficiency Cast Iron Motors, 60 kW, (3GBG311230-ADG)
ABB Type Designation
M3BG 315SMC 2
Invoice Description
M3BG 315SMC 2
Product Name
3-Phase squirrel cage generator
Product Type
3BP2__M3BP_IE2_CI
Made To Order
No
Minimum Order Quantity
1 piece
Selling Unit of Measure
piece
Country of Origin
Finland (FI) | China (CN)
Customs Tariff Number
85015381
Electrical Data
Temperature Class Default
--
Output Power
60 kW
Altitude
1000 m
Ambient Temperature
40 °C
IC Class
IC411
IE Class Data (50 Hz)
IE Class IE2 | Full Load (100%) 95.4 % | Partial Load (75%) 95.2 % | Partial Load (50%) 94.2 %
IP Class
IP55
Insulation Class
ICLF
Number of Poles (High)
2
Two Speed Motor
No
Type of Duty
S1
Voltage Code
D
Frame Size
315
IM Class
IMB3 IM1001
Product Net Weight
1025 kg
Gross Weight
1045 kg
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
UNSPSC
26101100
Feature: IE2 efficiency class reduces energy consumption and operating costs. This translates to measurable energy cost savings across continuous loads, lowering current draw and heat generation. In practice, this makes it ideal for pumps and fans in manufacturing lines where every kilowatt counts. Feature: Cast iron frame with a 315 size provides rugged durability and vibration resilience. The result is longer bearing life and lower maintenance, especially in dirty or high-vibration environments such as conveyors and processing lines.Feature: IP55 protection and ICFL insulation enable operation in dust, moisture, and elevated ambient temperatures. This combination supports reliable performance in outdoor or harsh plant areas with less risk of thermal or ingress-related downtime.Feature: 2-pole design with S1 duty and voltage code D delivers a straightforward control profile and solid starting torque. It integrates well with standard VFDs and fixed-speed drives, simplifying procurement and installation for OEMs.Feature: 1000 m altitude and 40 °C ambient tolerance reduce derating needs in multi-site deployments. This enables faster spares planning and consistent performance in global projects, supporting scalable drive systems for pumps, fans, and conveyors.Feature: 315 frame with IMB3 IM1001 mounting supports easy retrofit and spare-part compatibility. This reduces installation lead times and stabilizes maintenance planning across a plant with mixed motor fleets.
Get a Quick Quote for a ABB 3GBG311230-ADG
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3GBG311230-ADG?
Enquire Now
FAQs
For installation, mount on a rigid base compatible with IMB3/IM1001 configurations and ensure correct alignment with driven equipment. Use 315 frame mounting, proper cable sizing for 60 kW at voltage code D, and maintain IP55 sealing. If using a VFD, apply controlled ramp rates and ensure adequate cooling to protect the 40 °C ambient rating and 1000 m altitude tolerance.
IE2 efficiency reduces copper and iron losses relative to standard designs, lowering current draw and heat generation. In continuous-duty applications like pumps and conveyors, this translates into tangible energy savings, reduced cooling load, and a lower total cost of ownership over the motor’s life, enhancing overall plant productivity without sacrificing reliability.
Yes, within specified limits. The motor operates at ambient temperatures up to 40 °C and at altitudes up to 1000 m, with IP55 protection and ICFL insulation for robust service in dusty or moist environments. For conditions beyond these specs, derating or protective measures should be discussed with ABB or a qualified engineer.
Key specifications include IP55 ingress protection, IE2 energy efficiency, and ICFL insulation class. The unit uses a 315 frame with IMB3/IM1001 mounting, supporting consistent regulatory compliance and interchangeability with common plant equipment, while the UNSPSC code 26101100 aids in procurement taxonomy.
Maintenance is simplified by a rugged cast iron design and standardized 315 frame components, contributing to longer service life and reduced downtime. ROI improves through energy savings from IE2 efficiency, lower cooling requirements, and predictable spare-part availability across a global supply chain, making it a solid choice for OEMs and maintenance teams.
