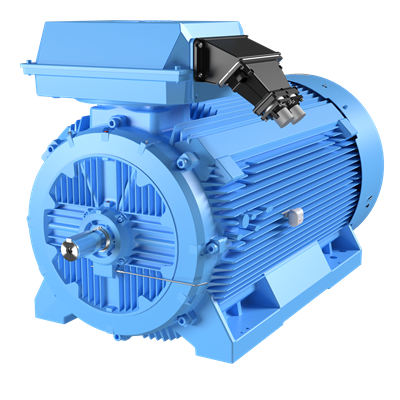

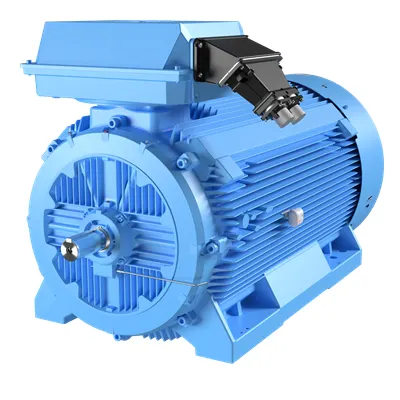

ABB 3GBJ406534-ADG 3-Phase Squirrel Cage Motor - IP55
Part Number: 3GBJ406534-ADG
Quick Summary
ABB 3GBJ406534-ADG is a 3-phase squirrel cage motor designed for heavy-duty industrial drives and conveyors. Engineers often confront long lead times, mounting surprises, and insufficient protection when sourcing large motors, which can disrupt production and increase maintenance costs. This model emphasizes robust protection with IP55, reliable insulation for continuous duty (IC411/ICLF), and a rugged cast-iron frame for durability in demanding environments. By standardizing on ABB motors like this, maintenance teams benefit from improved spares availability and easier integration with existing drive systems, while procurement gains predictable lead times and total cost of ownership advantages across industrial automation applications.
Product Information
Extended Description
3GBJ406534-ADG ABB: M3BJ 400LC 12
ABB Type Designation
M3BJ 400LC 12
Invoice Description
M3BJ 400LC 12
Product Name
3-Phase squirrel cage motor
Product Type
3BJ0__M3BJ_CI
Made To Order
No
Minimum Order Quantity
1 piece
Selling Unit of Measure
piece
Country of Origin
Finland (FI)
Customs Tariff Number
85015394
Electrical Data
Temperature Class Default
--
Altitude
1000 m
Ambient Temperature
40 °C
IC Class
IC411
IP Class
IP55
Insulation Class
ICLF
Number of Poles (High)
12
Two Speed Motor
No
Type of Duty
S1
Voltage Code
D
Frame Material
Cast Iron
Frame Size
400
Bearing
6324/C3
Bearing NDE
6319M/C3 VL0241
IM Class
IMB3 IM1001
Package Level 1 Units
0 pallet (lift)
Product Net Weight
3280 kg
Gross Weight
3320 kg
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
UNSPSC
26101100
Feature: Cast Iron frame and 400 frame size provide rigidity and vibration damping, reducing wear on bearings and drive components. Business Impact: Longer service life, lower maintenance costs, and improved uptime for demanding conveyors and pumps. Application: Ideal for heavy-load material handling and process lines where rugged construction is essential. Feature: IP55 protection combined with IC411 insulation class and 40 °C ambient rating improves environmental resilience, enabling operation in dusty or damp factory floors without enclosure challenges. Business Impact: Lower enclosure costs, reduced risk of electrical faults, and easier compliance with plant safety standards. Application: Suitable for open-floor installations in metalworking, packaging, and pulp/paper facilities. Feature: 12-pole design with a 400 frame and 400LC designation supports high torque at rated speeds, enabling steady, constant-speed operation under load. Business Impact: Enhanced process control and predictable motor behavior for synchronous drives. Application: Conveyor belts, mixers, and pump stations requiring reliable torque. Feature: Bearing arrangement 6324/C3 and NDE bearing 6319M/C3 VL0241 provides durable support for high-load operation, reducing unexpected downtime. Business Impact: Extended bearing life and lower replacement costs in continuous-duty setups. Application: Heavy machinery and line start/stop cycles in packaging and metallurgy. Feature: Made to order is No with a minimum order quantity of 1 piece, and a standard 0 pallet (lift) packaging level, aiding rapid procurement and straightforward logistics. Business Impact: Faster sourcing, reduced procurement complexity, and simpler shipping planning. Application: Stock-ready ABB motors for standard plant configurations and OEM integrations. Feature: Country of origin Finland (FI) with a Customs Tariff Number 85015394 and WEEE classification provides clear compliance and import traceability. Business Impact: Smoother cross-border procurement, accurate duty handling, and environmental compliance. Application: Global supply chains and maintenance operations supporting multi-site deployments.
Get a Quick Quote for a ABB 3GBJ406534-ADG
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3GBJ406534-ADG?
Enquire Now
FAQs
This motor uses a standard 400 frame with IMB3 IM1001 mounting compatibility and bearing configuration 6324/C3. It is designed for horizontal mounting on typical baseplates and aligns with common IEC frame standards, making retrofits or OEM integrations straightforward.
Key specs include a 400LC frame with 12 poles, voltage code D, ambient temperature rating of 40 °C, and IP55 protection. Insulation class is ICLF with IC411 class, suitable for continuous duty (S1) in industrial environments.
Yes. The motor is rated for continuous duty (S1) with a 12-pole design and 400 frame, delivering reliable torque and steady speeds essential for conveyors, pumps, and HVAC fans in manufacturing settings.
Key compliance attributes include IP55 ingress protection, IC411 electrical class, and insulation class ICLF. Additional context includes country of origin Finland (FI), customs tariff 85015394, and WEEE categorization for large equipment.
Expect improved uptime through rugged cast-iron construction, longer bearing life from robust 6324/C3 and 6319M/C3 bearings, and faster procurement with stock-ready 1-piece minimum orders. These factors translate to lower maintenance costs and quicker time-to-value for critical production lines.
