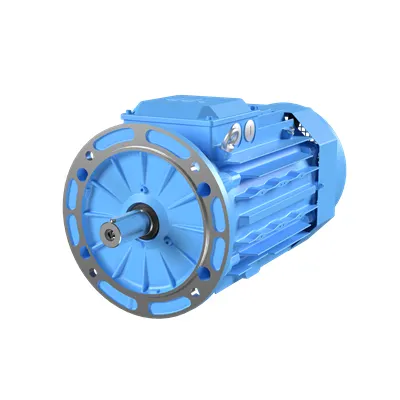

ABB 3GBL132247-BSC 3Phase Synchronous motor - IE5 IP55
Part Number: 3GBL132247-BSC
Quick Summary
ABB 3GBL132247-BSC 3Phase Synchronous motor is a high-efficiency drive for precise, reliable industrial applications. Operators often struggle with energy costs and downtime when selecting motors for variable-speed systems. This motor delivers IE5 efficiency, IP55 protection, and IC411 insulation, supporting robust performance across demanding environments. Designed for 400 V 50 Hz drives and European stocking, it helps shorten project timelines, simplify procurement, and improve total cost of ownership.
Product Information
Extended Description
3GBL132247-BSC ABB: IE5 SynRM Motors, 15 kW, 400 V (3GBL132247-BSC)
ABB Type Designation
M3BL 132SMD 4
Invoice Description
M3BL 132SMD 4
Product Name
3Phase Synchronous reluctance motor
Product Type
3BL4__M3BL_IE5_SynRM_CI
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Selling Unit of Measure
piece
Country of Origin
Finland (FI)
Customs Tariff Number
85015230
Stocked At (Warehouses)
Menden, Germany
Medium Description
15kW, 4 Poles, Frame Size 132, 3 Phases, 400V, 50Hz, IP55 Enclosure, IMB5/IM3001 Mounting (3GBL132247-BSC)
Short Description
15kW, 4 P, Frame Size 132, 3PH, 400V, 50Hz, IP55, IMB5/IM3001
Electrical Data
Connection Configuration
Y
Temperature Class Default
--
Input Voltage (Uin)
400 V
Frequency (f)
50 Hz
Motor Operational Voltage
380 V
Operating Frequency (fsw)
100.000 Hz
Output Power
15 kW
Altitude
1000 m
Ambient Temperature
40 °C
IC Class
IC411
IE Class Data (50 Hz)
IE Class IE5 | Full Load (100%) 94.1 % | Partial Load (75%) 93.6 % | Partial Load (50%) 92.0 %
IP Class
IP55
Insulation Class
ICLF
Direction of Rotation
Both sides
Number of Poles (High)
4
Two Speed Motor
No
Type of Duty
S9
Voltage Code
S
Frame Material
Cast Iron
Frame Size
132
Bearing
6308-2Z/C3
Bearing NDE
6206-2Z/C3
IM Class
IMB5 IM3001
Terminator Box Location
D-End top
Package Level 1 Units
0 carton
Product Net Depth / Length
532 mm
Product Net Height
300 mm
Product Net Width
320.5 mm
Product Net Weight
69 kg
Gross Weight
74 kg
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
UNSPSC
26101100
IE5 efficiency is the core differentiator, delivering full-load efficiency around 94.1% and lower energy consumption over the motor’s life. Business impact includes substantial energy cost savings and a smaller environmental footprint, which translates to lower operating expenses for conveyors, pumps, and fans in continuous operation. In practice, you gain reliability and predictable energy performance across multiple shifts and load profiles, enabling more accurate budgeting and smoother commissioning of new lines. The second differentiator is the IP55 enclosure combined with a rugged cast iron frame, offering dust and water protection in challenging factory floors or outdoor environments. This reduces maintenance interruptions and extends downtime intervals, making it ideal for packaging lines, material handling, and process equipment where cleanliness and ingress protection matter. Third, the 4-pole, 3-phase design with a Y connection and 400 V 50 Hz supply ensures straightforward integration with standard drives, reducing engineering time during installation and startup. Frame size 132 and IMB5/IM3001 mounting support simplify retrofits and align with common motor grids in European facilities. Fourth, the robust bearings (6308-2Z/C3 and 6206-2Z/C3) and IC411 insulation enhance durability and thermal stability, delivering long service life in high-temperature environments up to 40 °C and up to 1000 m altitude. Finally, regional availability—origin Finland with European stock in Menden, Germany—improves lead times and procurement logistics, helping engineers meet tight schedules without compromising quality.
Get a Quick Quote for a ABB 3GBL132247-BSC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3GBL132247-BSC?
Enquire Now
FAQs
The motor uses a Y connection and is rated for 400 V, 50 Hz, making it a seamless fit with common VFDs and 3-phase power rails found in standard European installations. With frame 132 and IMB5/IM3001 mounting, it simplifies retrofit into existing motor bases and busings, reducing install time and rework.
IE5 denotes premium efficiency, with full-load efficiency around 94.1%. In practice this reduces electrical energy consumption during continuous or variable-speed operation, lowering operating costs and helping meet sustainability targets without compromising torque or speed control.
Yes. The IP55 enclosure provides dust and water protection, while the IC411 insulation class supports reliable operation at elevated ambient temperatures (up to 40 °C) and altitudes up to 1000 m, making it well-suited for packaging, material handling, and process equipment in challenging sites.
Key certifications include IE5 efficiency, IP55 protection, and IC411 insulation. Mounting options include IMB5 IM3001 with frame size 132 and bearing arrangements such as 6308-2Z/C3 and 6206-2Z/C3, enabling straightforward installation on standard bases and within existing motor rails.
Regional availability (Finland origin, stocked in Europe) shortens lead times and reduces supply-chain risk. The energy savings from IE5 efficiency, combined with durable components and robust mounting, translate to lower total cost of ownership and predictable maintenance schedules, supporting faster project ramp-ups and improved uptime.
