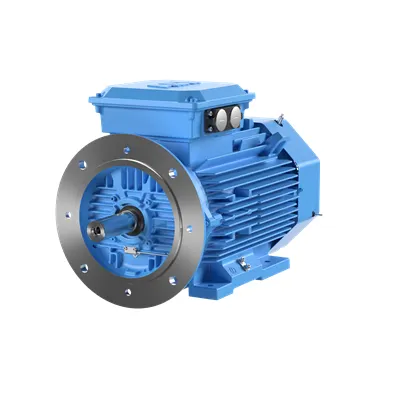

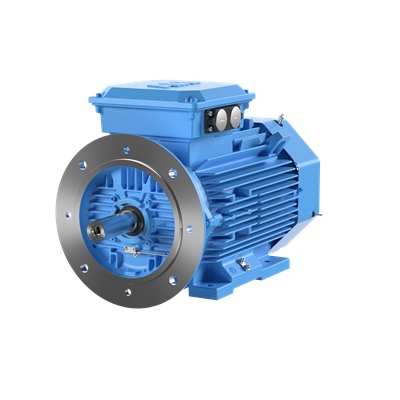

ABB 3GBL162422-HSC 3-Phase Synchronous Motor - IE5 SynRM
Part Number: 3GBL162422-HSC
Quick Summary
ABB 3GBL162422-HSC 3-Phase Synchronous Motor delivers high-efficiency torque for pumps, fans, and conveyors. Users struggle with energy costs and variable loads; this motor maintains efficiency across wide loads. Built for tough environments with IP55 protection and IC411 insulation, and supported by EPD and WEEE compliance. With a compact frame and a robust cast-iron housing, it fits tight spaces on rugged lines. Its 11 kW rating and 4-pole design provide strong starting torque and precise speed control in 400 V, 50 Hz networks. This makes it a scalable choice for automated lines seeking energy management and long-term reliability.
Product Information
Extended Description
3GBL162422-HSC ABB: IE5 SynRM Motors, 11 kW, 400 V (3GBL162422-HSC)
ABB Type Designation
M3BL 160MLB 4
Invoice Description
M3BL 160MLB 4
Product Name
3-Phase synchronous motor
Product Type
3BL4__M3BL_IE5_SynRM_CI
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Selling Unit of Measure
piece
Country of Origin
Finland (FI)
Customs Tariff Number
85015230
Medium Description
11kW, 4 Poles, Frame Size 160, 3 Phases, 400V, 50Hz, IP55 Enclosure, IMB35/IM2001 Mounting (3GBL162422-HSC)
Short Description
11kW, 4P, Frame Size 160, 3PH, 400V, 50Hz, IP55, IMB35/IM2001
Electrical Data
Connection Configuration
Y
Temperature Class Default
--
Input Voltage (Uin)
400 V
Frequency (f)
50 Hz
Motor Operational Voltage
370 V
Output Power
11 kW
Altitude
1000 m
Ambient Temperature
40 °C
IC Class
IC411
IE Class Data (50 Hz)
IE Class IE5 | Full Load (100%) 93.7 % | Partial Load (75%) 94.0 % | Partial Load (50%) 93.7 %
IE Class Data (60 Hz)
IE Class IE5 | Full Load (100%) 94.4 % | Partial Load (75%) 94.7 % | Partial Load (50%) 94.2 %
IP Class
IP55
Insulation Class
ICLF
Direction of Rotation
Both sides
Number of Poles (High)
4
Two Speed Motor
No
Type of Duty
S9
Voltage Code
S
Frame Material
Cast Iron
Frame Size
160
Bearing
6309/C3
Bearing NDE
6209/C3
IM Class
IMB35 IM2001
Terminator Box Location
D-End top
Package Level 1 Units
0 pallet (lift)
Product Net Depth / Length
681 mm
Product Net Height
421 mm
Product Net Width
338 mm
Product Net Weight
177 kg
Gross Weight
187 kg
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
ABB EcoSolutions
Yes
Environmental Product Declaration - EPD
Environmental Product Declaration for Synchronous reluctance (incl. increased safety) motors (7,5 kW-45 kW)
UNSPSC
26101100
