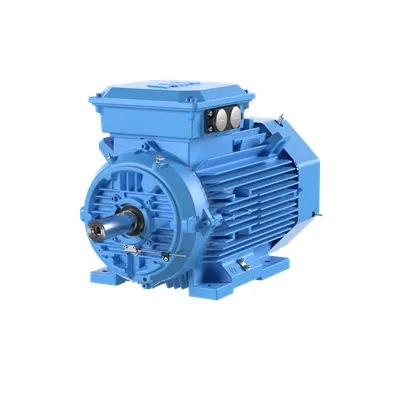

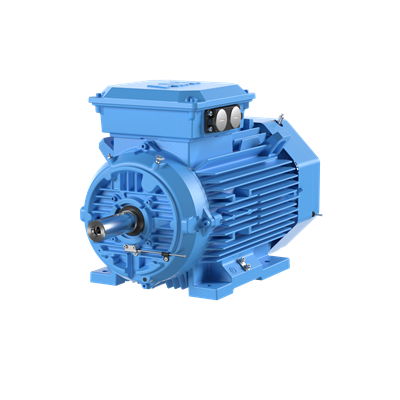

ABB 3GBL162423-AUC 3-Phase Synchronous Motor - IE5 SynRM
Part Number: 3GBL162423-AUC
Quick Summary
ABB 3GBL162423-AUC 3-Phase synchronous motor delivers high-efficiency drive for demanding industrial applications. Engineers often face energy waste and premature wear with conventional motors, driving up operating costs and downtime. This motor features IP55 protection, IC411 insulation, and IMB3/IM1001 mounting, with a Finnish origin and ABB EcoSolutions alignment to support sustainable performance. Operated on 690 V, 50 Hz systems, it delivers reliable torque and long service life while helping you meet procurement and compliance goals in modern automation environments.
Product Information
Extended Description
3GBL162423-AUC ABB: IE5 SynRM Motors, 15 kW, 690 V (3GBL162423-AUC)
ABB Type Designation
M3BL 160MLB 4
Invoice Description
M3BL 160MLB 4
Product Name
3-Phase synchronous motor
Product Type
3BL4__M3BL_IE5_SynRM_CI
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Selling Unit of Measure
piece
Country of Origin
Finland (FI)
Customs Tariff Number
85015230
Medium Description
15kW, 4 Poles, Frame Size 160, 3 Phases, 690V, 50Hz, IP55 Enclosure, IMB3/IM1001 Mounting (3GBL162423-AUC)
Short Description
15kW, 4P, Frame Size 160, 3PH, 690V, 50Hz, IP55, IMB3/IM1001
Electrical Data
Connection Configuration
Y
Temperature Class Default
--
Input Voltage (Uin)
690 V
Frequency (f)
50 Hz
Motor Operational Voltage
650 V
Operating Frequency (fsw)
50.000 Hz
Output Power
15 kW
Altitude
1000 m
Ambient Temperature
40 °C
IC Class
IC411
IE Class Data (50 Hz)
IE Class IE4 | Full Load (100%) 94.6 % | Partial Load (75%) 94.7 % | Partial Load (50%) 94.4 %
IP Class
IP55
Insulation Class
ICLF
Direction of Rotation
Both sides
Number of Poles (High)
4
Two Speed Motor
No
Type of Duty
S9
Voltage Code
U
Frame Material
Cast Iron
Frame Size
160
Bearing
6309/C3
Bearing NDE
6209/C3
IM Class
IMB3 IM1001
Terminator Box Location
D-End top
Package Level 1 Units
0 pallet (lift)
Product Net Depth / Length
681 mm
Product Net Height
421 mm
Product Net Width
338 mm
Product Net Weight
177 kg
Gross Weight
187 kg
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
ABB EcoSolutions
Yes
Environmental Product Declaration - EPD
Environmental Product Declaration for Synchronous reluctance (incl. increased safety) motors (7,5 kW-45 kW)
UNSPSC
26101100
Feature → Business Impact → Application: 4-pole, 15 kW, 690 V, 50 Hz with Y connection enables precise, efficient power conversion and robust torque at start-up, reducing energy consumption and damping mechanical stress in conveyors and pumps. This translates to lower energy bills and extended motor life in continuous processes, especially where uptime matters. Application: heavy-duty material handling, process automation, and HVAC systems using high-inertia loads. Feature → Business Impact → Application: Cast Iron frame and 160 frame size provide rugged mechanical integrity with long-term wear resistance in tough factory floors; Benefit: lower maintenance costs and fewer unscheduled outages. Application: packaging lines, bottling, and textile machinery. Feature → Business Impact → Application: IP55 and IC411 insulation class support harsh environments and wide ambient temperatures; Benefit: safer operation and compliance with industrial electrical standards in food & beverage, chemicals, and metalworking. Application: production lines with washdown or dusty environments. Feature → Business Impact → Application: IMB3 IM1001 mounting compatibility and D-End top terminator location simplify installation and service; Benefit: faster commissioning and easier retrofits in retrofit projects or new builds. Application: retrofit of legacy drives and new-line integrations. Feature → Business Impact → Application: ABB EcoSolutions and Environmental Product Declaration (EPD) support sustainability reporting; Benefit: favorable procurement metrics and reduced life-cycle impact for green initiatives. Application: plant-level ESG reporting and supplier compliance.
Get a Quick Quote for a ABB 3GBL162423-AUC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3GBL162423-AUC?
Enquire Now
FAQs
The motor uses IMB3 IM1001 mounting with a D-End top terminator location and a Y connection configuration, designed for straightforward installation in standard frame 160 assemblies. This supports quick retrofits and consistent pulley or gear drives in conveyor and pump lines while keeping wiring simple for 690 V, 50 Hz systems.
Key specs include 15 kW output power, 690 V input, 50 Hz frequency, 4-pole configuration, IP55 protection, and a 681 mm length with a cast iron frame. The motor operates with a 650 V nominal voltage, is designed for Y configuration, and supports 3-phase industrial drives with robust thermal tolerance up to 40 °C ambient.
Yes. The machine is designed as an IE5 SynRM solution with high efficiency metrics and documented IE4 performance data at 50 Hz, which translates to lower energy consumption, reduced heat generation, and longer service life under continuous duty. This makes it a strong choice for conveyors, pumps, and fans in demanding production lines.
The motor carries IP55 protection and IC411 insulation with IMB3/IM1001 mounting. It is manufactured in Finland (FI) and aligns with ABB EcoSolutions. WEEE categorization is noted, and the part adheres to standard industrial classifications (UNSPSC 26101100) for procurement in manufacturing environments.
Expect longer intervals between maintenance due to the robust SynRM design, durable bearings (6309/C3 and 6209/C3), and cast-iron frame. The combination of energy efficiency, reliable performance, and ABB EcoSolutions support drives lower total cost of ownership through reduced energy use, fewer unplanned outages, and easier maintenance planning.
