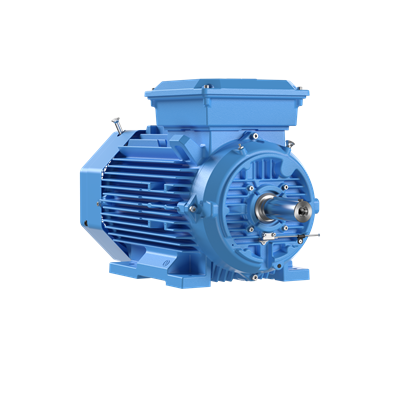

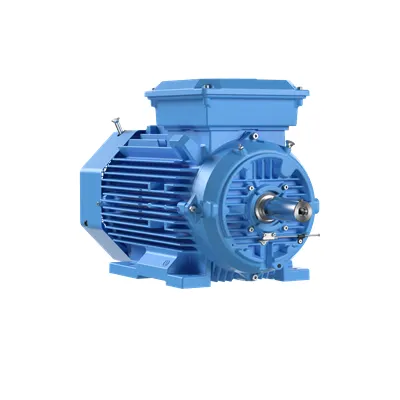

ABB 3GBL162423-HSB 3-Phase synchronous motor - IP55
Part Number: 3GBL162423-HSB
Quick Summary
3GBL162423-HSB is a 3-Phase synchronous motor designed for reliable, precise torque in demanding industrial drives. Engineers often wrestle with uptime and energy waste on long-running production lines, especially where torque consistency and shutdown risk matter. This ABB motor emphasizes IP55 protection, IC411 insulation, and IE2 efficiency to meet tough plant conditions and regulatory expectations. With a cast-iron frame and a compact 160 frame, installation is straightforward and retrofit costs stay manageable. In practice, operators gain dependable performance, reduced energy consumption, and improved process control to support lean manufacturing and lower total cost of ownership.
Product Information
Extended Description
3GBL162423-HSB ABB: M3BL 160MLB 4
ABB Type Designation
M3BL 160MLB 4
Invoice Description
M3BL 160MLB 4
Product Name
3-Phase synchronous motor
Product Type
3BL0__M3BL_SynRM_CI
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Selling Unit of Measure
piece
Country of Origin
Finland (FI)
Customs Tariff Number
85015230
Electrical Data
Temperature Class Default
--
Motor Operational Voltage
370 V
Altitude
1000 m
Ambient Temperature
40 °C
IC Class
IC411
IE Class Data (50 Hz)
IE Class IE2 | Full Load (100%) 91.2 % | Partial Load (75%) 91.0 % | Partial Load (50%) 89.8 %
IP Class
IP55
Insulation Class
ICLF
Direction of Rotation
Both sides
Number of Poles (High)
4
Two Speed Motor
No
Type of Duty
S9
Voltage Code
S
Frame Material
Cast Iron
Frame Size
160
Bearing
6309-2Z/C3
Bearing NDE
6209-2Z/C3
IM Class
IMB35 IM2001
Terminator Box Location
D-End top
Package Level 1 Units
0 pallet (lift)
Product Net Weight
130 kg
Gross Weight
140 kg
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
UNSPSC
26101100
The motor delivers high IE2 efficiency, which translates to measurable energy savings across continuous operation in conveyors, pumps, and fans, while maintaining stable speed and torque for consistent process results. This improves overall equipment effectiveness (OEE) and reduces operating expenses on long production runs. The rugged cast-iron frame and precision bearings (6309-2Z/C3) extend life in harsh environments, lowering maintenance cycles and spare parts costs while simplifying scheduled downtime planning for uptime reliability in heavy-duty applications across packaging, materials handling, and process control. IP55 protection safeguards internal components from dust and water ingress, boosting equipment availability on dirty floors, outdoor installations, and wash-down environments common in food, beverage, and chemical processing. Insulation class ICLF and the high-temperature tolerance support operation at 40 °C ambient and up to 1,000 m altitude, enabling deployment in remote or elevated facilities without compromising performance. The 370 V operating voltage and 4-pole design fit standard industrial drive systems, easing selection, installation, and compatibility with existing controls. This motor’s design aligns with ABB’s drive ecosystem, supporting streamlined procurement, maintenance planning, and long-term serviceability for industrial automation projects.
Get a Quick Quote for a ABB 3GBL162423-HSB
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3GBL162423-HSB?
Enquire Now
FAQs
The motor operates at 370 V and uses a 4-pole design with a cast-iron 160 frame, making it compatible with standard 3-phase drive systems and mounting arrangements. Ensure the drive's current and torque ratings align with the S9 duty class and that the terminator box location (D-End top) fits the existing enclosure. The frame and bearing configuration (6309-2Z/C3) are suited for robust industrial environments, simplifying retrofit and replacement in existing lines.
IE2 efficiency at full load is 91.2%, with near-identical performance at partial loads (75% 91.0%, 50% 89.8%). This translates to meaningful energy savings over long-duty cycles, especially in conveyors and pumps where duty cycles are steady. The improved efficiency reduces electrical energy consumption without sacrificing torque or speed accuracy, supporting lower total cost of ownership in continuous operations.
Yes. The motor carries IP55 protection, protecting it from dust and water ingress, which is essential for dirty floors, wash-down zones, and moderate outdoor conditions. Coupled with a robust cast-iron frame and IC411 insulation, it remains reliable in ambient temperatures up to 40 °C and at altitudes up to 1000 m, making it a versatile choice for varied plant locations.
The 6309-2Z/C3 bearing arrangement and the IMB35 IM2001 classifications indicate a design geared toward long intervals between maintenance when operated within specified duty and environmental conditions. Plan routine inspections for bearing wear, seal integrity, and electrical connection checks. The motor’s robust construction supports reduced maintenance frequency and predictable service cycles in heavy-use lines.
Choosing 3GBL162423-HSB aligns with energy-efficiency goals (IE2), high IP protection, and reliable IEC-compliant insulation (ICLF), supporting regulatory requirements and safer operation. The combination of energy savings, extended service life, and compatible form factor (160 frame) reduces retrofit risk and downtime, contributing to faster project timelines and improved return on investment in industrial automation upgrades.
