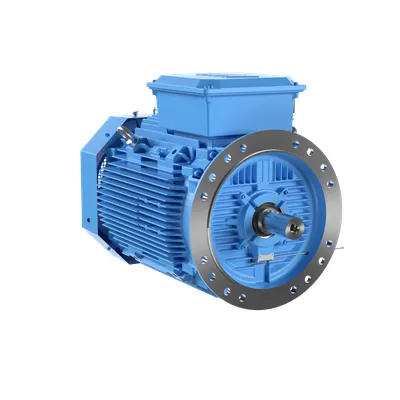

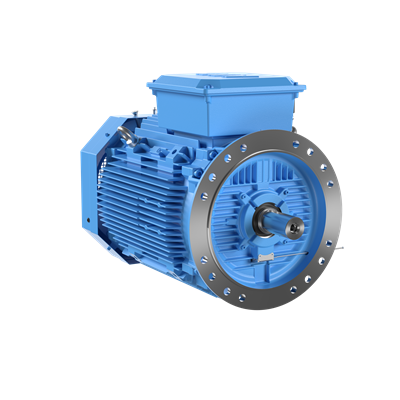

ABB 3GBL252237-BSB 3-Phase Synchronous Motor - IP55
Part Number: 3GBL252237-BSB
Quick Summary
ABB 3GBL252237-BSB is a 3-phase synchronous motor designed for reliable, high-precision duty in industrial drives. In today’s automation environments, engineers seek motors that balance performance with serviceability and lifecycle cost containment. This model delivers robust protection and efficiency, backed by IP55 protection, IE4 energy savings, and IC411 insulation to withstand challenging dusty and humid plant conditions. The 250-frame, cast-iron construction, and precision bearings (6315/C3 and 6213/C3) support stable operation and reduced maintenance. With Finland origin and a standard minimum order of 1 piece, it integrates smoothly into procurement workflows while offering predictable torque, easy installation, and long service intervals for heavy-duty manufacturing.
Product Information
Extended Description
3GBL252237-BSB ABB: M3BL 250SMC 4
ABB Type Designation
M3BL 250SMC 4
Invoice Description
M3BL 250SMC 4
Product Name
3-Phase synchronous motor
Product Type
3BL0__M3BL_SynRM_CI
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Selling Unit of Measure
piece
Country of Origin
Finland (FI)
Customs Tariff Number
85015381
Replaced Product ID (OLD)
3GBL252002-BSB
Stocked At (Warehouses)
Menden, Germany
Electrical Data
Temperature Class Default
--
Motor Operational Voltage
370 V
Altitude
1000 m
Ambient Temperature
40 °C
IC Class
IC411
IE Class Data (50 Hz)
IE Class IE4 | Full Load (100%) 95.5 % | Partial Load (75%) 94.8 % | Partial Load (50%) 93.2 %
IP Class
IP55
Insulation Class
ICLF
Direction of Rotation
Both sides
Number of Poles (High)
4
Two Speed Motor
No
Type of Duty
S9
Voltage Code
S
Frame Material
Cast Iron
Frame Size
250
Bearing
6315/C3
Bearing NDE
6213/C3
IM Class
IMB5 IM3001
Terminator Box Location
D-End top
Package Level 1 Units
0 pallet (lift)
Product Net Weight
454 kg
Gross Weight
464 kg
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
UNSPSC
26101100
The first feature is IP55 protection, IE4 efficiency, and IC411 insulation which translates to superior dust- and water- protection, reduced energy consumption, and long-term reliability in harsh environments. This yields immediate cost savings and ensures compliance with industry standards in process lines and packaging. Next, a 4-pole 370 V operation in a 250 frame cast-iron body provides high torque at low rotor speed, enabling precise speed control and smoother startup for conveyor systems and machine tools. The heavy-duty bearings 6315/C3 and 6213/C3 extend service life and reduce maintenance intervals, lowering total cost of ownership. The motor’s altitude tolerance of 1000 m and ambient temperature rating of 40 °C make it suitable for remote plants and outdoor installations. Dual-direction rotation support simplifies installation across rotating equipment and minimizes downtime when retrofitting existing lines. The Terminator Box location D-End top and IM class IMB5 IM3001 improve wiring accessibility and lifecycle performance, while the cross-compatibility with standard 3BL designs reduces spares stock.
