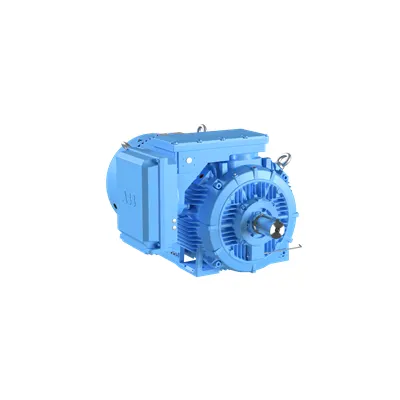

ABB 3GBN953540-ADK 3-Phase squirrel cage motor - IE4 IP55
Part Number: 3GBN953540-ADK
Quick Summary
ABB 3GBN953540-ADK is a high-efficiency, 3-phase squirrel cage motor engineered for heavy industrial drives such as pumps, fans, and conveyors. In demanding environments, reliability and energy costs are persistent challenges; this motor helps address them with robust enclosure protection and precise control. With IP55 protection, IE4 efficiency, and IC411 insulation, it performs reliably in harsh plant conditions while minimizing maintenance and lifecycle costs. This combination supports easier integration with modern factory automation and drives systems, delivering measurable value through reduced energy consumption and improved uptime.
Product Information
Extended Description
3GBN953540-ADK ABB: (3GBN953540-ADK)
ABB Type Designation
M3BN 5012LD 6
Invoice Description
M3BN 5012LD 6
Product Name
3-Phase squirrel cage motor
Product Type
3BN3__M3BN_IE3
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Selling Unit of Measure
piece
Country of Origin
Finland (FI)
Customs Tariff Number
85015394
Electrical Data
Temperature Class Default
--
Altitude
1000 m
Ambient Temperature
40 °C
IC Class
IC411
IE Class Data (60 Hz)
IE Class IE4 | Full Load (100%) 96.9 % | Partial Load (75%) 97.0 % | Partial Load (50%) 96.6 %
IP Class
IP55
Insulation Class
ICLF
Direction of Rotation
Both sides
Number of Poles (High)
6
Two Speed Motor
No
Type of Duty
S1
Voltage Code
D
Frame Material
Cast Iron
Frame Size
5000
Bearing
6324/C3
Bearing NDE
6319/C3VL0241
IM Class
IMB3 IM1001
Terminator Box Location
D-End left side
Package Level 1 Units
0 pallet (lift)
Product Net Weight
2670 kg
Gross Weight
2710 kg
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
SCIP
a68594ba-db5c-4ba6-aabc-a40fc86bf202 Finland (FI)
UNSPSC
26101100
Feature → Business Impact → Application: The IP55 enclosure and cast iron frame deliver rugged durability in dusty, humid environments, reducing downtime and extending bearing life for conveyors and fans. This translates to lower maintenance costs and longer equipment life in challenging production lines. Feature → Business Impact → Application: IE4 efficiency combined with a 6-pole design delivers energy savings during continuous operation (S1) at ambient temperatures up to 40 °C and altitude up to 1000 m, helping meet energy standards for pumps and HVAC systems. Feature → Business Impact → Application: IC411 insulation class, along with durable bearings (6324/C3, 6319/C3VL0241) and IMB3 IM1001 classification, enables reliable performance under high-load and variable-speed drives in manufacturing environments. Feature → Business Impact → Application: Cast iron frame (Frame Size 5000) and a D-End left side terminator box simplify installation and serviceability, supporting quick integration into existing automation architectures. Feature → Business Impact → Application: Minimum order quantity of 1 piece and standard delivery readiness reduce procurement lead times and enable scalable deployment across multiple lines in industrial facilities.
