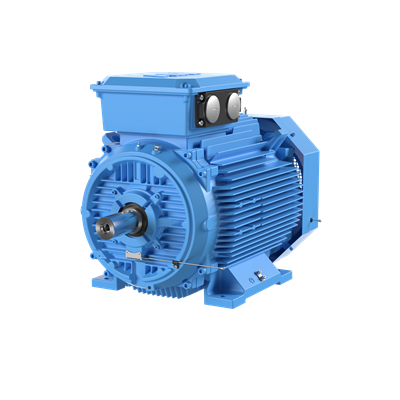

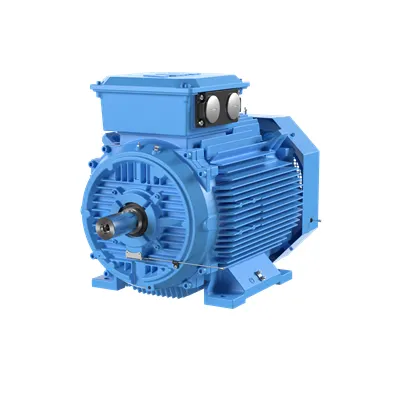

ABB 3GBP222220-AEG 3-Phase IE2 Cast Iron Motor - IP55
Part Number: 3GBP222220-AEG
Quick Summary
ABB 3GBP222220-AEG is a 3-phase IE2 cast-iron motor designed for heavy industrial drives. This 45 kW, 500 V motor suits continuous S1 operation in challenging environments, delivering energy efficiency and dependable performance. With IP55 protection, a rugged cast-iron frame, and IMB3/IM1001 mounting, it integrates smoothly into standard machine configurations while tolerating dusty, hot facilities. The design aligns with IEC 60034-1 standards and IE2 targets, and features regreasable bearings for extended service life. In sectors like pumps, fans, conveyors, and compressors, this motor supports predictable torque delivery and reduced maintenance, contributing to a lower total cost of ownership and higher overall equipment effectiveness (OEE). Suitable for automation projects requiring robust, reliable power conversion in harsh environments.
Product Information
Extended Description
3GBP222220-AEG ABB: IE2 High Efficiency Cast Iron Motors, 45 kW, 500 V (3GBP222220-AEG)
ABB Type Designation
M3BP 225SMB 4
Invoice Description
M3BP 225SMB 4
Product Name
3-Phase squirrel cage motor
Product Type
3BP2__M3BP_IE2_CI
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Selling Unit of Measure
piece
Country of Origin
Finland (FI) | China (CN)
Customs Tariff Number
85015290
Replaced Product ID (OLD)
3GBP222032-AEG
Stocked At (Warehouses)
Shanghai, China
Medium Description
45kW, 4 Poles, Frame Size 225, 3 Phases, 500V, 50Hz, IP55 Enclosure, IMB3/IM1001 Mounting (3GBP222220-AEG)
Short Description
45kW, 4P, Frame Size 225, 3PH, 500V, 50Hz, IP55, IMB3/IM1001
Electrical Data
Connection Configuration
D
Temperature Class Default
--
Input Voltage (Uin)
500 V
Frequency (f)
50 Hz
Output Power
45 kW
Altitude
1000 m
Ambient Temperature
40 °C
IC Class
IC411
IE Class Data (50 Hz)
IE Class IE2 | Full Load (100%) 93.9 % | Partial Load (75%) 94.3 % | Partial Load (50%) 93.9 %
IP Class
IP55
Insulation Class
ICLF
Direction of Rotation
Both sides
Number of Poles (High)
4
Two Speed Motor
No
Type of Duty
S1
Voltage Code
E
Frame Material
Cast Iron
Frame Size
225
Bearing
6313/C3
Bearing NDE
6212/C3
Lubrication
Regreasable
IM Class
IMB3 IM1001
Terminator Box Location
D-End top
Package Level 1 Units
1 pallet (lift)
Product Net Depth / Length
879 mm
Product Net Height
574 mm
Product Net Width
460 mm
Product Net Weight
356 kg
Gross Weight
366 kg
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
SCIP
54c45c7b-7581-40ab-b615-c1dcb277d8a7 Finland (FI)
Standards
IEC 60034-1
UNSPSC
26101100
Feature: IE2 efficiency class combined with a 45 kW output. Business impact: substantial energy savings across both full and partial-load conditions, lowering operating costs and improving sustainability metrics. Application: pumps, compressors, and fans in continuous-duty settings. Feature: IP55 enclosure paired with a cast-iron frame and 4-pole design for 50 Hz operation at 500 V. Business impact: enhanced protection against dust and moisture, reduced risk of downtime, and longer equipment life in temperate to harsh facilities. Application: metalworking, cement, mining, and process industries where protective ratings matter. Feature: IMB3/IM1001 mounting compatibility and D-connection configuration. Business impact: simpler installation, easier alignment with existing baseplates, and faster commissioning, cutting project lead times. Application: retrofits and new line upgrades in packaging, material handling, and process lines. Feature: Regreasable bearings (6313/C3 and 6212/C3 NDE) and robust mechanicals (cast iron, frame size 225). Business impact: lower maintenance frequency and extended bearing life under continuous-load conditions, improving uptime and service intervals. Application: conveyors, mills, and heavy-duty fans where reliability is critical. Feature: IEC 60034-1 compliance and IE2 efficiency verification with IP55 and insulation class ICLF. Business impact: proven regulatory compliance, predictable performance, and safer operation in high-temperature environments. Application: global deployments across automation and energy-intensive facilities. The combination of energy efficiency, rugged construction, and installation-friendly features makes this ABB motor a strong fit for industrial automation projects seeking reliability, cost control, and long-term performance. Long-tail keywords integrated include 3-phase IE2 motor, 4-pole IP55 electric motor, cast-iron industrial motor, IMB3 IM1001 mounting, 500 V 50 Hz motor, and regreasable bearing motors for tough environments.
