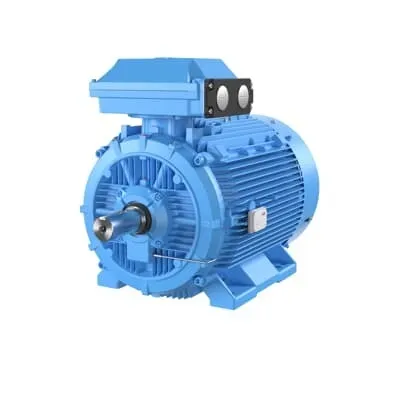

ABB 3GBP359429-BDG IE2 Cast Iron Motor - IP55
Part Number: 3GBP359429-BDG
Quick Summary
ABB 3GBP359429-BDG IE2 cast iron motor powers demanding industrial drives with high efficiency. In large facilities, energy waste and unexpected downtime erode margins, making dependable performance essential. The motor features IP55 protection, IC411 insulation, and IMB5 mounting to withstand rugged environments while maintaining robust efficiency and serviceability. By combining a cast-iron frame, a 4-pole design, and an energy-saving IE2 rating, this motor offers long operating life and predictable procurement for OEMs and maintenance teams. For projects requiring reliable power delivery and scalable installation, this model aligns with both cost and compliance goals.
Product Information
Extended Description
3GBP359429-BDG ABB: IE2 High Efficiency Cast Iron Motors, 290 kW, (3GBP359429-BDG)
ABB Type Designation
M3BP 355MLB 4/8
Invoice Description
M3BP 355MLB 4/8
Product Name
3-Phase squirrel cage motor
Product Type
3BP2__M3BP_IE2_CI
Made To Order
No
Minimum Order Quantity
1 piece
Selling Unit of Measure
piece
Country of Origin
Finland (FI) | China (CN) | Poland (PL)
Customs Tariff Number
85015381
Electrical Data
Temperature Class Default
--
Output Power
290 kW
Altitude
1000 m
Ambient Temperature
40 °C
IC Class
IC411
IP Class
IP55
Insulation Class
ICLF
Direction of Rotation
Both sides
Number of Poles (High)
4
Two Speed Motor
Yes
Type of Duty
S1
Voltage Code
D
Frame Material
Cast Iron
Frame Size
355
Bearing
6322/C3
Bearing NDE
6316/C3
IM Class
IMB5 IM3001
Terminator Box Location
Top
Package Level 1 Units
1 pallet (lift)
Product Net Weight
2180 kg
Gross Weight
2210 kg
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
SCIP
54c45c7b-7581-40ab-b615-c1dcb277d8a7 Finland (FI)
UNSPSC
26101100 | 39120000
IE2 efficiency rating reduces energy consumption and operating costs in continuous-duty drives. For heavy industrial conveyors and pumps, this translates to lower electricity bills and improved process economics, supporting sustainable plant operations. Cast iron frame offers excellent vibration resistance and durability, delivering longer service life in demanding environments and reducing maintenance frequency. IP55 protection combined with IC411 insulation ensures reliable operation in dusty or moist plant floors, supporting outdoor installations and wash-down areas while meeting safety requirements. IMB5 mounting and a 355 frame enable straightforward retrofits and standardized installations across multiple lines, cutting commissioning time and spare-part complexity. The 4-pole, 290 kW, 3-phase design provides robust torque with consistent performance under S1 duty, while the two-speed capability supports process control without over-sizing equipment. This combination minimizes total cost of ownership by improving uptime and simplifying procurement for industrial motor needs.
