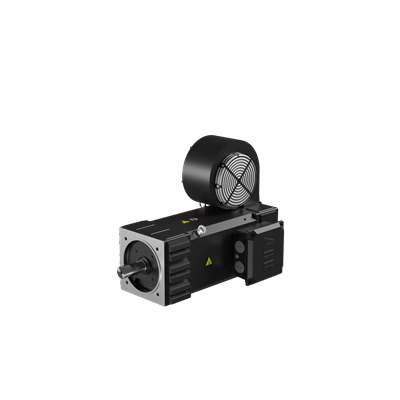

ABB 3GFT182722-HDB Motors - IP23
Part Number: 3GFT182722-HDB
Quick Summary
ABB 3GFT182722-HDB motors are designed to deliver high dynamic performance for demanding automation tasks in packaging, material handling, and processing lines. Engineers often struggle with motor heat, reliability, and downtime under variable loads; this design prioritizes robust protection and efficient operation to minimize those risks. The unit features IP23 protection, insulation class IC LH, and a resilient IMB35 frame, supporting a long service life in light industrial environments. With a 180 mm frame, 4-pole construction, and 50/60 Hz compatibility, it offers ready-to-run performance and easy integration into existing control schemes while meeting industry standards.
Product Information
ABB Type Designation
M3FT 180B 4
Invoice Description
M3FT 180B 4
Product Name
High dynamic performance motors
Product Type
3FTB__M3FT__HDP__IP23_
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Selling Unit of Measure
piece
Country of Origin
Finland (FI)
Customs Tariff Number
85015381
Electrical Data
Temperature Class Default
--
Altitude
1000 m
Ambient Temperature
40 °C
IC Class
IC06
IE Class Data (50 Hz)
IE Class NA | Full Load (100%) 92.2 % | Partial Load (75%) 92.8 % | Partial Load (50%) 92.5 %
IE Class Data (60 Hz)
IE Class IE1 | Full Load (100%) 92.9 % | Partial Load (75%) 93.4 % | Partial Load (50%) 93.0 %
IP Class
IP23
Insulation Class
ICLH
Direction of Rotation
Both sides
Number of Poles (High)
4
Two Speed Motor
No
Type of Duty
S9
Voltage Code
D
Frame Material
Aluminum
Frame Size
180
Bearing
6314-2Z
Bearing NDE
6314-2Z
IM Class
IMB35 IM2001
Terminator Box Location
N-End right side
Package Level 1 Units
0 pallet (lift)
Product Net Weight
436 kg
Gross Weight
446 kg
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
UNSPSC
26101100
