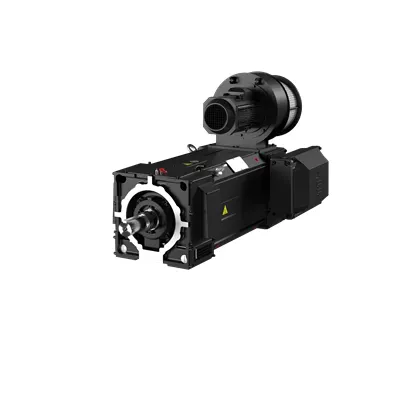

ABB 3GFT222732-RDB Motors & Drives - HDP IP23
Part Number: 3GFT222732-RDB
Quick Summary
ABB 3GFT222732-RDB is a high-dynamic-performance motor designed for demanding automation and packaging lines. Engineers often struggle with motor overheating, efficiency gaps, and downtime under heavy S9 duty. With IP23 protection, insulation classes IC LH and IC06, this motor balances reliability with safe operation in rugged industrial environments. For buyers pursuing energy efficiency and lifecycle cost reductions in industrial automation, ABB’s HDP motor line delivers predictable performance, easier maintenance, and scalable deployment across mixing, packaging, and material handling applications.
Product Information
ABB Type Designation
M3FT 225C 4
Invoice Description
M3FT 225C 4
Product Name
High dynamic performance motors
Product Type
3FTB__M3FT__HDP__IP23_
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Selling Unit of Measure
piece
Country of Origin
Finland (FI) | China (CN)
Customs Tariff Number
85015381
Electrical Data
Temperature Class Default
--
Motor Operational Voltage
382 V
Altitude
1000 m
Ambient Temperature
40 °C
IC Class
IC06
IE Class Data (50 Hz)
IE Class NA | Full Load (100%) 94.1 % | Partial Load (75%) 95.0 % | Partial Load (50%) 95.5 %
IE Class Data (60 Hz)
IE Class NA | Full Load (100%) 94.2 % | Partial Load (75%) 94.7 % | Partial Load (50%) 95.0 %
IP Class
IP23
Insulation Class
ICLH
Direction of Rotation
Both sides
Number of Poles (High)
4
Two Speed Motor
No
Type of Duty
S9
Voltage Code
D
Frame Material
Welded Steel
Frame Size
225
Bearing
6319/C3
Bearing NDE
6316/C3 VL0241
IM Class
IMB3 IM1001
Terminator Box Location
N-End right side
Package Level 1 Units
0 pallet (lift)
Product Net Weight
1104 kg
Gross Weight
1114 kg
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
UNSPSC
26101100
Feature: High dynamic performance with a 4-pole, 225 frame design. Benefit: Enables rapid speed response and precise torque control, reducing cycle times on conveyors and packaging lines. Application: Suitable for high-speed automation tasks in material handling and machine tools. Feature: IP23 protection and IC LH insulation. Benefit: Improves reliability in indoor factory floors and under modest ambient conditions, lowering risk of insulation faults. Application: Plants with 40 °C ambient temperature and up to 1000 m altitude. Feature: 382 V operation with IE Class data showing full-load efficiency around 94%+. Benefit: Drives energy savings and reduces operating costs in continuous duty environments. Application: Heavy-load conveyors and automation stations. Feature: IM Class IMB3 IM1001 mounting and N-end terminator box location. Benefit: Simplifies installation, compatibility with standard builds, and faster commissioning. Application: Retrofit projects and new line deployments. Feature: Duty S9 and welded steel frame. Benefit: Robust, long-life operation under demanding loads with extended service intervals. Application: Heavy-duty packaging, material handling, and process machinery.
