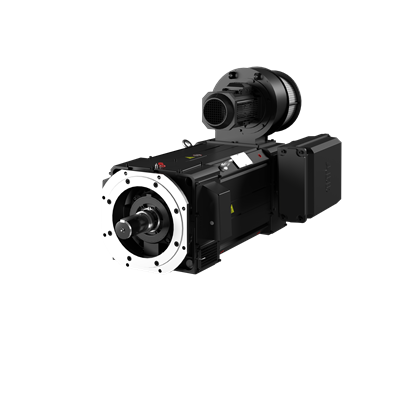

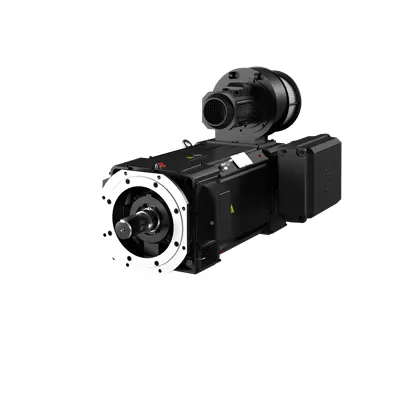

ABB M3FT 250C 4 Motors for High Dynamic Performance - IP23
Part Number: 3GFT252734-RDB
Quick Summary
ABB M3FT 250C 4 Motors is a high-dynamic performance motor for demanding industrial drives across packaging, plastics processing, and metalworking lines. The combination of fast torque response and consistent speed regulation helps maintain product quality while reducing cycle times. Many manufacturers struggle with efficiency losses, reliability challenges, and regulatory compliance under varying loads and harsh plant conditions. The M3FT 250C 4 addresses these pain points with robust IP protection, CE certification, and IE3 energy efficiency, enabling safer operation and lower energy bills. For system integrators and procurement teams, this translates into lower total cost of ownership, easier maintenance, and predictable performance when upgrading legacy equipment or deploying new lines.
Product Information
ABB Type Designation
M3FT 250C 4
Invoice Description
M3FT 250C 4
Product Name
High dynamic performance motors
Product Type
3FTB__M3FT__HDP__IP23_
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Selling Unit of Measure
piece
Country of Origin
Finland (FI) | China (CN)
Customs Tariff Number
85015394
Electrical Data
Temperature Class Default
--
Motor Operational Voltage
382 V
Altitude
1000 m
Ambient Temperature
40 °C
IC Class
IC06
IE Class Data (50 Hz)
IE Class IE3 | Full Load (100%) 95.2 % | Partial Load (75%) 95.7 % | Partial Load (50%) 95.8 %
IE Class Data (60 Hz)
IE Class IE3 | Full Load (100%) 95.3 % | Partial Load (75%) 95.6 % | Partial Load (50%) 95.6 %
IP Class
IP23
Insulation Class
ICLH
Direction of Rotation
Both sides
Number of Poles (High)
4
Two Speed Motor
No
Type of Duty
S9
Voltage Code
D
Frame Material
Welded Steel
Frame Size
250
Bearing
6322/C3
Bearing NDE
6319/C3 VL0241
IM Class
IMB3 IM1001
Terminator Box Location
N-End right side
Package Level 1 Units
0 pallet (lift)
Product Net Weight
1483 kg
Gross Weight
1493 kg
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
UNSPSC
26101100
High dynamic torque control → Improves torque response and load handling, reducing start-up peaks and belt wear → Ideal for packaging lines, metal stamping, and extrusion drives. IP23 protection → Enables reliable operation in typical factory environments up to 40 °C ambient and 1000 m altitude, reducing field failures and service calls → Suitable for conveyors, printers, and light industrial automation in dusty zones. IE3 efficiency → Delivers energy savings across full-load to partial-load conditions, lowering operating costs on continuous-duty lines → Beneficial for long shifts in food packaging, plastics, and textiles. Welded steel frame with 250 mm size and 6322/C3 bearings → Provides durable life in heavy-duty equipment, minimizing downtime and maintenance → Well suited for presses, mixers, and heavy conveyors. Single-speed, 4-pole IMB3 IM1001 design → Simplifies integration with standard ABB drives and control platforms, accelerating installation and reducing control complexity → Good fit for retrofit projects and new builds. Robust mechanical/electrical design → Supports compatibility with standard mounting arrangements and easy retrofit, reducing system-change risk and total installation time.
Get a Quick Quote for a ABB 3GFT252734-RDB
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3GFT252734-RDB?
Enquire Now
FAQs
The ABB M3FT 250C 4 uses a 250 frame with welded steel construction and 6322/C3 bearing set for durability. It supports IMB3 IM1001 mounting classes and features a N-End right side terminator box location, enabling straightforward wiring, essential for rapid panel integration and serviceability in packaging lines.
At 50 Hz, the motor achieves IE3 full-load efficiency around 95.2–95.8% depending on load, with 75% and 50% partial-load figures near 95.7–95.8%. At 60 Hz, full-load efficiency is about 95.3%, with 75% and 50% partial-load data around 95.6%. These values support stable energy performance across typical production cycles.
Yes. The motor is rated IP23, protecting it from vertical and limited ingress, while the ambient temperature rating of up to 40 °C and altitude up to 1000 m improve reliability in typical factory floors. Insulation class is ICLH, and the enclosure is designed for robust industrial use.
The IE3 efficiency rating reduces energy consumption on continuous duty lines, contributing to lower operating costs over the motor’s life. Its robust welded steel frame, precise bearings, and reliable 4-pole design deliver long service intervals and reduced maintenance, translating to higher uptime and lower lifecycle costs for heavy-duty applications.
The motor features a standard 250 frame with a N-End terminator box position and dual rotation directions, enabling flexible mounting on existing equipment. Its IMB3 IM1001 class and compatibility with common ABB drive configurations simplify retrofit projects and new builds, speeding commissioning and reducing design risk.
