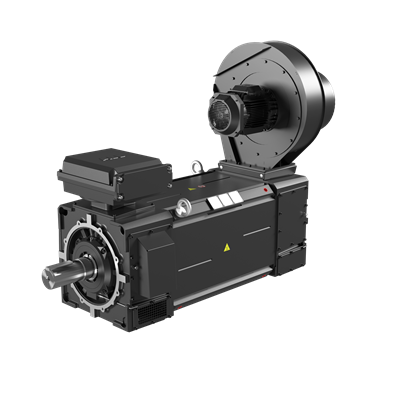

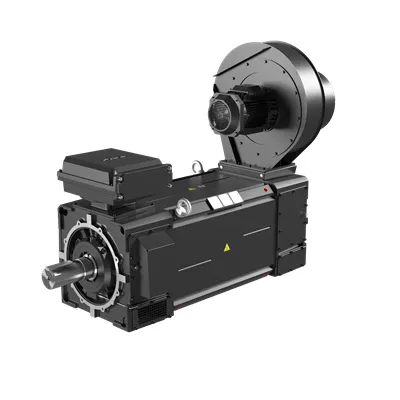

ABB 3GFT312731-ADB High dynamic performance motors - IP23
Part Number: 3GFT312731-ADB
Quick Summary
High dynamic performance motors from ABB 3GFT312731-ADB deliver precise torque and smooth speed control for demanding industrial drives. This design helps reduce downtime by addressing common failure points such as inconsistent performance, inadequate protection, and integration gaps with controls. It complies with IP23 protection, IC LH insulation, and IE1 efficiency standards, supporting reliable operation on typical factory floors. The solution is engineered for seamless ABB drive compatibility and scalable automation, delivering energy efficiency and predictable maintenance needs for your production lines.
Product Information
ABB Type Designation
M3FT 315C 4
Invoice Description
M3FT 315C 4
Product Name
High dynamic performance motors
Product Type
3FTB__M3FT__HDP__IP23_
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Selling Unit of Measure
piece
Country of Origin
Finland (FI) | China (CN)
Customs Tariff Number
85015394
Electrical Data
Temperature Class Default
--
Motor Operational Voltage
370 V
Altitude
1000 m
Ambient Temperature
40 °C
IC Class
IC06
IE Class Data (50 Hz)
IE Class IE1 | Full Load (100%) 94.7 % | Partial Load (75%) 95.4 % | Partial Load (50%) 95.9 %
IP Class
IP23
Insulation Class
ICLH
Direction of Rotation
Both sides
Number of Poles (High)
4
Two Speed Motor
No
Type of Duty
S9
Voltage Code
D
Frame Material
Welded Steel
Frame Size
315
Bearing
6326M/C3
Bearing NDE
6322/C3VL0241
IM Class
IMB3 IM1001
Terminator Box Location
D-End top
Package Level 1 Units
0 pallet (lift)
Product Net Weight
2700 kg
Gross Weight
2720 kg
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
UNSPSC
26101100
Feature → Business Impact → Application: The 4-pole, 315 frame motor delivers rapid torque response and stable speed, reducing start-up fluctuations and back-driving loads on conveyors and packaging machines, improving line throughput. Application: packaging lines and material handling systems benefit from tighter speed control and lower wear. Feature → Business Impact → Application: IP23 enclosure provides adequate protection for general indoor manufacturing environments, allowing quick installation without excessive enclosure costs. Application: machine tools and assembly stations in standard plant floors. Feature → Business Impact → Application: IE1 efficiency (Full Load 94.7 %, Partial Load up to 95.9 %) lowers energy consumption and thermal load, cutting operating costs over the motor’s life. Application: continuous-duty pumps and fans in process lines. Feature → Business Impact → Application: 370 V operation and voltage code D enable straightforward integration with common european drives and controls, reducing wiring complexity. Application: ABB HDP and other drive systems. Feature → Business Impact → Application: robust bearings (6326M/C3, 6322/C3VL0241) and welded steel frame deliver long-life performance under heavy loads, minimizing maintenance interrupts. Application: heavy-duty conveyors and metal forming equipment. Feature → Business Impact → Application: dual-direction rotation and IMB3 IM1001 mounting provide installation flexibility and reliable mounting in constrained spaces. Application: multi-direction conveyors and gear-reduced drives in packaging lines.
Get a Quick Quote for a ABB 3GFT312731-ADB
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3GFT312731-ADB?
Enquire Now
FAQs
This motor uses a 315 frame with a welded steel housing and a D-end terminator box located at the top. Ensure mounting aligns with IMB3 IM1001 standards, verify that the environment meets IP23 protection, and confirm ambient temperature does not exceed 40 °C. Plan for a standard 1-piece quantity and proper shaft alignment to maximize bearing life.
The 370 V nominal operation aligns with common European drive architectures and voltage code D, simplifying wiring and control integration with ABB HDP and other variable-frequency drives. Expect straightforward DC-link matching and minimal intermediate step-down components, which reduces panel space and installation time.
Yes. With a 4-pole high-dynamic design, IP23 protection, and IE1 efficiency, the motor supports rapid acceleration and precise speed control required by conveyors and pumps in packaging. The robust bearings and welded frame provide durability under continuous operation and shock loads typical in industry lines.
Key classifications include IP23 ingress protection, IC LH insulation class, and IE1 efficiency data. These standards support reliable operation on factory floors with moderate dust exposure and demanding duty cycles, while helping ensure regulatory compliance and energy efficiency targets.
The motor’s robust 315 frame, heavy-duty bearings (6326M/C3, 6322/C3VL0241), and welded steel construction reduce maintenance frequency and unexpected downtime. Combined with energy-efficient IE1 performance and flexible installation, this translates to lower lifecycle costs and faster payback on automated line upgrades.
