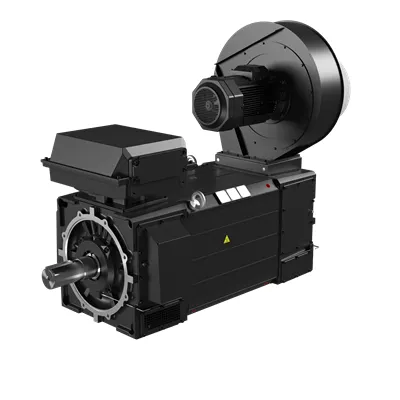

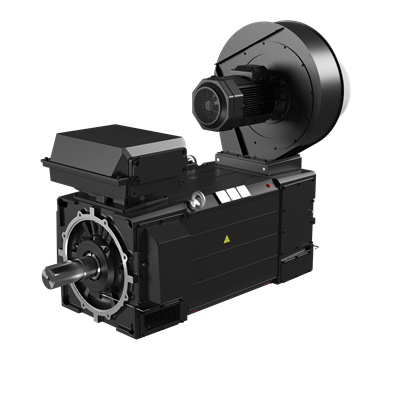

ABB 3GFT352723-AUB Motors & Drives - HDP IP23
Part Number: 3GFT352723-AUB
Quick Summary
ABB 3GFT352723-AUB Motors & Drives deliver high-dynamic performance for demanding industrial lines such as conveyors, pumps, and machine tools. Wasted energy and frequent downtime are common pain points when older motor platforms struggle with starts, torque bursts, and vibration. This motor series integrates IP23 protection, insulation class ICLH, and a rugged 355 frame with a 4-pole IMB3/IM1001 design, supporting reliable operation in harsh environments. This combination translates to lower maintenance costs and improved uptime, while remaining compatible with standard mounting and power distribution practices. For global plants, sourcing flexibility and predictable performance underpin faster project execution and longer equipment life.
Product Information
ABB Type Designation
M3FT 355B 4
Invoice Description
M3FT 355B 4
Product Name
High dynamic performance motors
Product Type
3FTB__M3FT__HDP__IP23_
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Selling Unit of Measure
piece
Country of Origin
Finland (FI) | China (CN)
Customs Tariff Number
85015399
Electrical Data
Temperature Class Default
--
Motor Operational Voltage
640 V
Operating Frequency (fsw)
58.900 Hz
Altitude
1000 m
Ambient Temperature
40 °C
IC Class
IC06
IE Class Data (50 Hz)
IE Class NA | Full Load (100%) 96.0 % | Partial Load (75%) 96.6 % | Partial Load (50%) 97.0 %
IE Class Data (60 Hz)
IE Class NA | Full Load (100%) 96.0 % | Partial Load (75%) 96.6 % | Partial Load (50%) 97.0 %
IP Class
IP23
Insulation Class
ICLH
Direction of Rotation
Both sides
Number of Poles (High)
4
Two Speed Motor
No
Type of Duty
S9
Voltage Code
U
Frame Material
Welded Steel
Frame Size
355
Bearing
6326M/C3
Bearing NDE
6322/C3VL0241
IM Class
IMB3 IM1001
Terminator Box Location
D-End top
Package Level 1 Units
0 pallet (lift)
Product Net Weight
3700 kg
Gross Weight
3730 kg
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
UNSPSC
26101100
Feature: Robust mechanical frame and components. Business Impact: Higher durability reduces unscheduled maintenance and replacement costs, boosting line availability. Application: Suitable for heavy conveyors and machine tools with demanding start/stop cycles. Feature: 640 V operation with a 58.9 Hz power profile. Business Impact: Enables strong torque response and reliable performance across varied supply conditions, lowering gradient during acceleration. Application: Industrial drives and processing lines requiring precise speed control. Feature: IP23 protection and insulation class ICLH. Business Impact: Enhanced protection against particles and droplets, plus higher thermal tolerance for hot plants, reducing failure rates. Application: Plants in elevated ambient temperatures up to 40 C and altitudes near 1000 m. Feature: 355 frame, welded steel, 4-pole design. Business Impact: Standardized mounting and predictable mechanical compatibility streamline installation and spare parts sourcing. Application: Upgrades to legacy lines without extensive rework. Feature: IMB3 IM1001 and D-End top terminator box. Business Impact: Simplified alignment with existing control cabinets and plug-and-play integration with common fieldbus interfaces. Application: Modernizing legacy equipment while preserving existing electrical layouts. Insight: The combination supports energy efficiency targets and extended service life across multiple plant locations, enhancing overall ROI.
Get a Quick Quote for a ABB 3GFT352723-AUB
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3GFT352723-AUB?
Enquire Now
FAQs
The 3GFT352723-AUB is a 640 V, 4-pole, single-speed motor built around a 355 frame with IMB3/IM1001 class construction. It supports common IEC mounting patterns and standard 3-phase drive interfaces. Ensure drive output matches the 58.9 Hz operating range and verify terminal box alignment (D-End top) for straightforward wiring and minimal rework during installation.
IE Class data indicate high efficiency across loading conditions. At 50 Hz, Full Load is 96.0%, with Partial Load at 75% 96.6% and 50% 97.0%. The same performance profile applies at 60 Hz. These figures translate to reduced energy consumption during normal operation and meaningful lifecycle cost savings in continuous-duty applications.
Best suited for heavy-duty conveyors, pumps, and machine tools requiring rapid torque response and robust thermal performance. The 355 frame with welded steel construction, IP23 protection, and 4-pole design provides reliable operation in challenging environments up to 40 C ambient and 1000 m altitude, enabling uptime in manufacturing lines, packaging, and processing facilities.
This motor features IP23 ingress protection and insulation class ICLH for higher thermal tolerance. It also carries mechanical classifications IMB3 IM1001 and standard frame protections like the D-End top terminator box, contributing to safer operation in mixed-load industrial environments and easier compliance with plant safety standards.
Expect reduced downtime due to improved reliability from IP-rated protection and robust bearings. The high efficiency at full and partial loads lowers energy costs, while the standardized 355 frame simplifies parts stocking and replacement. Over the equipment life, these factors combine to shorten payback periods and improve overall return on investment.
