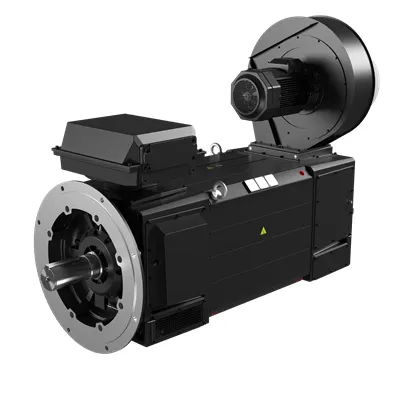

ABB 3GFT402722-AUB Motors & Drives - IP23
Part Number: 3GFT402722-AUB
Quick Summary
ABB 3GFT402722-AUB is a high dynamic performance motor system for heavy-duty automation applications. Engineers often struggle with downtime and inconsistent torque under peak loads. Key protections include IP23 ingress protection, IC06 insulation class, and ICLH insulation, supporting reliable operation in demanding environments. Designed for long life with a 640 V operating range and a robust 400-frame welded steel chassis, it aligns with modern automation standards and cost-effective maintenance programs.
Product Information
ABB Type Designation
M3FT 400B 4
Invoice Description
M3FT 400B 4
Product Name
High dynamic performance motors
Product Type
3FTB__M3FT__HDP__IP23_
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Selling Unit of Measure
piece
Country of Origin
Finland (FI)
Customs Tariff Number
85015399
Electrical Data
Temperature Class Default
--
Motor Operational Voltage
640 V
Altitude
1000 m
Ambient Temperature
40 °C
IC Class
IC06
IE Class Data (50 Hz)
IE Class NA | Full Load (100%) 96.2 % | Partial Load (75%) 96.8 % | Partial Load (50%) 97.2 %
IP Class
IP23
Insulation Class
ICLH
Direction of Rotation
Both sides
Number of Poles (High)
4
Two Speed Motor
No
Type of Duty
S9
Voltage Code
U
Frame Material
Welded Steel
Frame Size
400
Bearing
6330M/C3
Bearing NDE
6326M/C3VL0241
IM Class
IMB3 IM1001
Terminator Box Location
D-End top
Package Level 1 Units
0 pallet (lift)
Product Net Weight
4550 kg
Gross Weight
4590 kg
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
UNSPSC
26101100
Feature: High dynamic performance motors deliver rapid torque response, enabling smoother starts and precise speed control. Benefit: Reduces cycle times and energy waste, improving line efficiency and overall equipment effectiveness in packaging and material handling. Application: Use on conveyors and process lines where quick torque response drives uptime. Feature: Robust 400 frame welded steel construction provides mechanical stiffness and vibration resistance. Benefit: Longer service intervals and lower maintenance costs in demanding plants. Application: Heavy manufacturing environments requiring durable rotors and housings.Feature: 640 V operating voltage with an ambient temperature rating up to 40 °C and altitude up to 1000 m. Benefit: Maintains consistent performance with minimal derating in hot, elevated facilities. Application: Plants with elevated floor temperatures or high-altitude installations.Feature: IP23 protection and IC06/ICLH insulation class offer reliable protection against dust ingress and withstand high-temperature operation. Benefit: Enhanced uptime and reduced risk of insulation failure in tough workshop or factory floors. Application: General industrial environments with exposure to dust and heat.Feature: IM Class IMB3 IM1001 and a D-End top terminator box location simplify installation and serviceability. Benefit: Faster commissioning and easier field maintenance, reducing downtime. Application: New installations and retrofits in existing lines with space constraints.Feature: Bearing system 6330M/C3 and NDE 6326M/C3VL0241 supports smooth, low-friction operation over long cycles. Benefit: Lower maintenance frequency and extended bearing life under heavy-duty duty cycles. Application: Continuous-duty processes in metals, plastics, and packaging.
Get a Quick Quote for a ABB 3GFT402722-AUB
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3GFT402722-AUB?
Enquire Now
FAQs
For installation, ensure the welded steel 400 frame is securely mounted with proper alignment to minimize vibration. The unit uses IMB3 IM1001 mounting classes and a D-End top terminator box, which eases wiring during commissioning. Plan space for service access and verify the 640 V supply, ensuring safe, compliant cabling and protection against dust and moisture in IP23-rated environments.
The motor is a four-pole design with a 400 frame and a 640 V operating voltage. It is rated for S9 duty, indicating continuous heavy intermittent operation with reliable torque. Efficiency data is provided in the IE Class Data, showing stable performance across full and partial loads, complemented by robust insulation (IC06/ICLH) and IP23 protection for rugged industrial use.
Yes. The motor is rated for altitude up to 1000 meters and ambient temperatures up to 40 °C, which minimizes derating in many hot factories and elevated facilities. The IP23 protection and insulation classes IC06/ICLH further support reliable operation in dusty, warm environments, making it suitable for a wide range of industrial applications.
IP23 protection guards against vertical rainfall and solid intrusion to a basic level, reducing the risk of moisture-related faults. IC06 insulation and ICLH insulation provide durable dielectric properties suitable for demanding heat conditions. Together, they contribute to longer service intervals, lower maintenance costs, and higher uptime in continuous or heavy-duty operations.
Industries with heavy-duty automation needs, such as packaging, process, and material handling, benefit most. The high dynamic performance, robust mechanical design, and protective ratings support reliable conveyors, presses, and mixing or sorting lines. The motor’s four-pole design, 640 V operation, and sturdy frame enable lower downtime, predictable torque, and improved lifecycle economics in demanding production environments.
