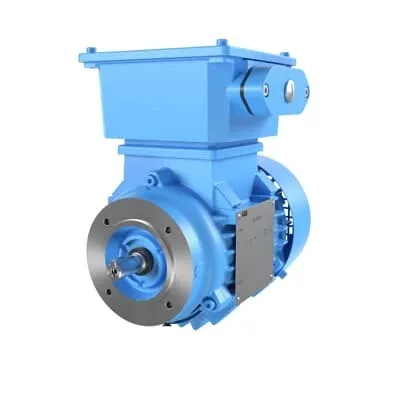

ABB 3GGA084310-BSCIN 3-Phase Squirrel Cage Motor - IE2
Part Number: 3GGA084310-BSCIN
Quick Summary
ABB 3GGA084310-BSCIN is a 3-phase squirrel cage motor for industrial drives. It targets mainstream automation challenges such as startup reliability, heat management, and integration with existing control systems. This design delivers dependable performance under demanding conditions, helping minimize unplanned downtime. The motor trades off ruggedness and efficiency with practical features like IP55 protection, IC411 insulation, and an 8-pole frame for steady torque. With a cast-iron frame and IMB5 IM3001 mounting, it supports long service life in harsh environments. For engineers and procurement teams, this motor provides a clear path to energy savings, lower maintenance costs, and smoother installation in process lines and packaging lines alike.
Product Information
ABB Type Designation
M2GAX 80MA 8
Invoice Description
M2GAX 80MA 8
Product Name
3-Phase squirrel cage motor
Product Type
IGA2_-_M2GAX_Non-sparking_IE2_cast_iron_motor
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Selling Unit of Measure
piece
Country of Origin
India (IN)
Customs Tariff Number
85015100
Electrical Data
Temperature Class Default
T3
Altitude
1000 m
Ambient Temperature
50 °C
IC Class
IC411
IE Class Data (50 Hz)
IE Class IE2 | Full Load (100%) 45.9 % | Partial Load (75%) 40.8 % | Partial Load (50%) 29.8 %
IP Class
IP55
Insulation Class
ICLF
Direction of Rotation
Both sides
Number of Poles (High)
8
Two Speed Motor
No
Type of Duty
S1
Voltage Code
S
EX-Protection
Exec
Gas Group
IIC
Frame Material
Cast Iron
Frame Size
80
Bearing
6204-2Z/C3
Bearing NDE
6203-2Z/C3
IM Class
IMB5 IM3001
Terminator Box Location
D-End top
Package Level 1 Units
0 carton
Product Net Weight
15 kg
Gross Weight
18 kg
UNSPSC
26101100
Feature → Business Impact → Application: The cast-iron frame provides exceptional rigidity and vibration damping, extending bearing life and reducing belt wear in conveyors and pumps, improving uptime and reducing maintenance costs. Application: Heavy-duty material handling and process lines where downtime equals cost. Feature → Energy efficiency → Business Impact → Application: IE2 efficiency drives lower energy consumption, delivering faster ROI on continuous-duty operations across fans, pumps, and mixers. Application: Long-running production cycles and HVAC-driven processes where energy costs are a concern. Feature → IP55 protection and IC411 insulation → Business Impact → Application: Enhanced protection against dust and water exposure, plus high-temperature tolerance up to 50 °C, enabling outdoor installs and dusty facilities with fewer enclosure needs. Application: Outdoor conveyors, loading systems, and humid or dusty environments. Feature → Non-sparking IE2 IMB5 cast-iron design → Business Impact → Application: Safe operation in potential hazard zones with better torque consistency and lower thermal rise, reducing risk and maintenance. Application: Chemical processing, dairy and beverage lines, and other potentially explosive environments. Feature → Reversible rotation and robust bearings → Business Impact → Application: Flexible installation and easy retrofitting into existing equipment without rework, minimizing downtime. Application: Packaging lines, drilling and milling stations, and cooling systems. Feature → Made-to-order attributes and standard 1 piece MOQ → Business Impact → Application: Quick fulfillment for single-unit replacements or pilot deployments, enabling lean procurement. Application: Spare-part stocking for critical machinery in manufacturing plants.
Get a Quick Quote for a ABB 3GGA084310-BSCIN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3GGA084310-BSCIN?
Enquire Now
FAQs
This motor uses a standard 80 frame with IMB5 mounting and a D-End top terminator box, making it compatible with many existing 3-phase installations. Ensure your drive or soft-start supports IP55 and the 8-pole topology; verify shaft alignment and mounting dimensions to minimize rework and commissioning time.
IE2 denotes a higher efficiency class for general-purpose 3-phase motors. In continuous-duty applications, this reduces line-side energy consumption, lowers heat generation, and can shorten payback periods. For ABB 3GGA084310-BSCIN, expect improved operating costs in pumps, fans, and conveyors while maintaining torque and reliability.
Yes, the motor features IP55 protection and an IC411 insulation class with a cast-iron frame, designed for high ambient temperatures up to 50 °C and altitude up to 1000 m. While not a dedicated explosion-protected unit, its non-sparking design and robust enclosure make it appropriate for many industrial environments with elevated dust, moisture, or vibration.
Best suited for continuous-duty S1 operations in process lines, pumps, conveyors, and mixers where reliability, energy efficiency, and durability are required. The non-sparking design also benefits facilities in hazardous-like settings by reducing ignition risks during routine maintenance.
Plan for routine inspection of bearings (6204-2Z/C3 and 6203-2Z/C3), lubrication per manufacturer guidelines, and periodic checks of the termination box and wiring integrity. The IMB5 mounting supports straightforward field service, and the cast-iron frame helps resist deformation and noise under load, contributing to longer service intervals.
