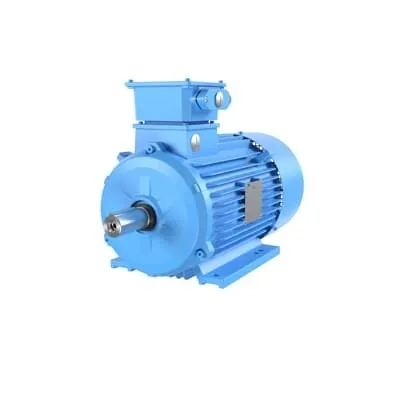

ABB 3GGA132310-BDCIN 3-Phase Squirrel Cage Motor - IE2
Part Number: 3GGA132310-BDCIN
Quick Summary
ABB 3GGA132310-BDCIN is a 3-phase squirrel cage motor for industrial drives. In harsh manufacturing environments, reliability and ease of maintenance are critical to meet production targets. This motor delivers IP55 protection, IC411 insulation, and IE2 efficiency, offering safer operation and energy savings. Built with a cast iron frame and precision bearings, it withstands heat, vibration, and extended-duty cycles while maintaining stable performance. With a 4-pole design and S1 duty, it supports continuous operation in conveyors, pumps, and fans. By combining rugged construction with straightforward installation, this ABB motor helps you reduce downtime, lower lifecycle costs, and simplify procurement across global sites.
Product Information
ABB Type Designation
M2GAX 132MA 4
Invoice Description
M2GAX 132SA 2
Product Name
3-Phase squirrel cage motor
Product Type
IGA2_-_M2GAX_Non-sparking_IE2_cast_iron_motor
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Selling Unit of Measure
piece
Country of Origin
India (IN)
Customs Tariff Number
85015220
Electrical Data
Temperature Class Default
T3
Altitude
1000 m
Ambient Temperature
50 °C
IC Class
IC411
IE Class Data (50 Hz)
IE Class IE2 | Full Load (100%) 88.7 % | Partial Load (75%) 89.2 % | Partial Load (50%) 88.3 %
IP Class
IP55
Insulation Class
ICLF
Direction of Rotation
Both sides
Number of Poles (High)
4
Two Speed Motor
No
Type of Duty
S1
Voltage Code
D
EX-Protection
Exec
Gas Group
IIC
Frame Material
Cast Iron
Frame Size
132
Bearing
6208-2Z/C3
Bearing NDE
6208-2Z/C3
IM Class
IMB5 IM3001
Terminator Box Location
D-End top
Package Level 1 Units
0 carton
Product Net Weight
70 kg
Gross Weight
75 kg
UNSPSC
26101100
IE2 efficiency with a 4-pole design yields meaningful energy savings on daily operation, reducing running costs for conveyors, pumps, and fans. The Business Impact is lower energy intensity and improved sustainability, while the Application is wide across material handling and process cooling where continuous duty is common. IP55 protection paired with IC411 insulation minimizes ingress and thermal stress, delivering higher uptime in dusty or moist environments and enabling longer service intervals. The practical result is reduced maintenance interventions and consistent performance in demanding plants. The rugged Cast Iron frame (Frame Size 132) with 6208-2Z/C3 bearings supports heavy vibration and long-life operation in steel mills, water treatment, and chemical processing. Ex-protection (Exec) and Gas Group IIC ratings make the motor suitable for hazardous areas, increasing cross-site applicability. IM Class alignment (IMB5 IM3001) and D-End top termination box streamline installation and future servicing. Continuous-duty (S1) operation up to 50 °C ambient and 1000 m altitude ensures reliable performance across multiple geographic locations. The overall design supports easy sourcing of spare parts and standard ABB components, optimizing maintenance planning and total cost of ownership.
Get a Quick Quote for a ABB 3GGA132310-BDCIN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3GGA132310-BDCIN?
Enquire Now
FAQs
For seamless integration, position the motor with the D-End top termination box and use IMB5 IM3001 mounting as specified. Ensure mounting aligns with a 132 frame size and that the drive wiring accommodates a 4-pole, S1 duty configuration. Verify ambient conditions do not exceed 50 °C and that sites remain within 1000 m altitude to maintain rated performance. Use standard ABB spares for bearings and seals to simplify maintenance.
At 50 Hz, the motor operates as a 4-pole device designed for continuous S1 duty. It features IE2 efficiency with typical full-load efficiency around 88.7%, and a cast iron 132 frame with 70 kg net weight (75 kg gross). IP55 protection and IC411 insulation support reliable operation in demanding environments, with a nominal torque and speed suitable for conveyors, pumps, and fans.
Yes. The motor includes Ex-Protection (Exec) and Gas Group IIC ratings, making it applicable to hazardous areas where combustible gases may be present. When deploying in such zones, follow applicable national and international safety standards, ensure proper enclosure integrity, and coordinate with site safety officers to maintain compliance and reliable operation.
Maintenance aligns with a robust IMB5 IM3001 mounting class and shielded bearings (6208-2Z/C3). Plan for periodic inspection of the cast iron frame and lubrication of bearings as per OEM recommendations. Compatibility extends to standard ABB components, including the 132 frame and D-End top termination box, ensuring straightforward part replacement and minimized downtime during servicing.
The IE2 efficiency class delivers measurable energy savings on continuous-duty loads like conveyors and pumps, contributing to lower operating costs over the motor’s life. The cast iron construction reduces maintenance frequency and prolongs service life in harsh environments, translating to lower total cost of ownership and improved uptime across multi-site operations.
