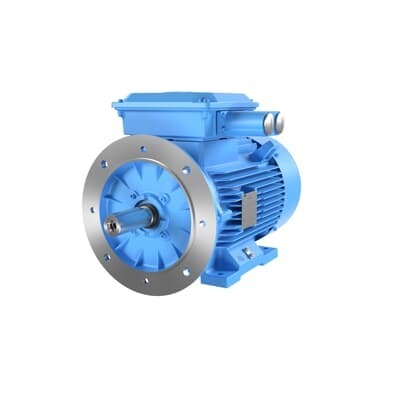

ABB 3GGA182410-BDDIN 3-Phase Squirrel Cage Motor - IE3
Part Number: 3GGA182410-BDDIN
Quick Summary
ABB 3GGA182410-BDDIN is a 3-phase squirrel cage motor designed for heavy-duty industrial drives. Many installations struggle with reliability, energy waste, and maintenance costs in demanding environments, making downtime costly and unpredictable. This motor delivers robust protection and efficiency through IP55 housing, IE3 efficiency, and IC411 insulation, enabling safe operation in dusty or humid plants across a wide ambient range. With a cast iron frame (180 mm) and precision bearings, it provides long service life under continuous operation, while the D-End top terminal box and IMB5 IM3001 mounting class simplify wiring and serviceability. These design choices translate into lower total cost of ownership and improved plant uptime for process and manufacturing applications.
Product Information
ABB Type Designation
M2GAX 180MLA 4
Invoice Description
M2GAX 180MLB 8
Product Name
3-Phase squirrel cage motor
Product Type
IGA3_-_M2GAX_Non-sparking_IE3_cast_iron_motor
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Selling Unit of Measure
piece
Country of Origin
India (IN)
Customs Tariff Number
85015230
Electrical Data
Temperature Class Default
T3
Altitude
1000 m
Ambient Temperature
50 Ā°C
IC Class
IC411
IE Class Data (50 Hz)
IE Class IE3 | Full Load (100%) 92.6 % | Partial Load (75%) 93.0 % | Partial Load (50%) 92.5 %
IP Class
IP55
Insulation Class
ICLF
Direction of Rotation
Both sides
Number of Poles (High)
4
Two Speed Motor
No
Type of Duty
S1
Voltage Code
D
EX-Protection
Exec
Gas Group
IIC
Frame Material
Cast Iron
Frame Size
180
Bearing
6210-2Z/C3
Bearing NDE
6209-2Z/C3
IM Class
IMB5 IM3001
Terminator Box Location
D-End top
Package Level 1 Units
0 pallet (lift)
Product Net Weight
192 kg
Gross Weight
202 kg
UNSPSC
26101100
IE3 efficiency is a defining feature, delivering lower energy consumption and reduced heat losses at full-load. The business impact is significant life-cycle cost savings and easier compliance with energy efficiency standards in high-hour applications such as pumps, fans, and conveyors. IP55 protection minimizes dust and moisture ingress, reducing unscheduled downtime and component wear; in manufacturing and processing plants this translates to longer service intervals and less preventive maintenance in dirty or humid environments. Cast iron frame and rugged bearings provide dependable performance under continuous duty, delivering excellent vibration damping and wear resistance for applications like mixers, crushers, and material handling equipment in harsh conditions. The D-End top terminal box simplifies installation and field wiring, while the IMB5 IM3001 mounting class ensures compatibility with standard baseplates, speeding commissioning. Ex-protection options with Exec protection and Gas Group IIC align with hazardous-area requirements, enabling safer deployment in certified environments with fewer site constraints. With S1 duty and a four-pole design, the motor delivers predictable torque and steady performance across typical process loads.
Get a Quick Quote for a ABB 3GGA182410-BDDIN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3GGA182410-BDDIN?
Enquire Now
FAQs
The motor features a D-End top terminal box and IMB5 IM3001 mounting class, designed for straightforward wiring and fast commissioning. The 180 mm cast-iron frame pairs with precision bearings (6209-2Z/C3 and 6210-2Z/C3) to simplify installation on standard baseplates and in confined spaces, making retrofits and new builds more efficient.
Yes. The motor is rated for an ambient temperature of 50 Ā°C and can operate at altitudes up to 1000 meters. With IP55 protection and IC411 insulation, it maintains reliable performance and insulation integrity in hot, dusty, or humid environments typical of many industrial facilities.
The device carries IP55 enclosure protection and IE3 efficiency, with insulation class ICLF and temperature class T3. For hazardous-area considerations, EX-Protection is listed with Gas Group IIC, indicating suitability for environments requiring explosion protection when properly implemented and certified per local regulations.
It is designed for continuous S1 duty with a four-pole configuration. IE3 efficiency is specified, and full-load efficiency sits around 92.6%, with minor variance at partial loads around 93%. This combination supports predictable performance and reduced energy cost across long-running processes such as pumps and fans.
ROI is driven by reduced energy consumption (IE3), longer bearing life (robust 6210-2Z/C3 bearings), IP55 protection, and a user-friendly D-End top terminal box for quicker wiring. The cast iron frame adds durability, while the IMB5 IM3001 mounting class eases mounting and serviceability, resulting in lower downtime and faster project timelines.
