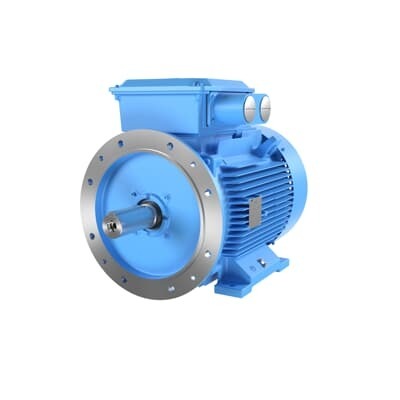

ABB 3GGA224210-BDDIN 3-Phase squirrel cage motor - IE3
Part Number: 3GGA224210-BDDIN
Quick Summary
ABB 3GGA224210-BDDIN 3-Phase squirrel cage motor is a high-efficiency drive solution for demanding industrial equipment. Manufacturers frequently struggle with energy costs, unexpected downtime, and the challenge of meeting harsh environmental standards when selecting a replacement motor. This design delivers IE3 efficiency, IP55 protection, and IC411 insulation, ensuring reliable performance in dusty and damp environments. Used within ABB’s M2GAX family, its cast-iron frame and robust bearings translate into longer service life and lower maintenance, delivering lower total cost of ownership for new builds and replacements. The explosion-protected variant with gas group IIC markings supports compliant operation in hazardous areas where permitted, and the 8-pole design suits both constant and variable torque loads.
Product Information
ABB Type Designation
M2GAX 225SMA 8
Invoice Description
M2GAX 225SMB 8
Product Name
3-Phase squirrel cage motor
Product Type
IGA3_-_M2GAX_Non-sparking_IE3_cast_iron_motor
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Selling Unit of Measure
piece
Country of Origin
India (IN)
Customs Tariff Number
85015230
Electrical Data
Temperature Class Default
T3
Altitude
1000 m
Ambient Temperature
50 °C
IC Class
IC411
IE Class Data (50 Hz)
IE Class IE3 | Full Load (100%) 90.1 % | Partial Load (75%) 90.1 % | Partial Load (50%) 90.0 %
IP Class
IP55
Insulation Class
ICLF
Direction of Rotation
Both sides
Number of Poles (High)
8
Two Speed Motor
No
Type of Duty
S1
Voltage Code
D
EX-Protection
Exec
Gas Group
IIC
Frame Material
Cast Iron
Frame Size
225
Bearing
6213-2Z/C3
Bearing NDE
6210-2Z/C3
IM Class
IMB5 IM3001
Terminator Box Location
D-End top
Package Level 1 Units
0 pallet (lift)
Product Net Weight
254 kg
Gross Weight
264 kg
UNSPSC
26101100
Feature: IE3 efficiency with full-load performance. Benefit: Reduced energy consumption and lower operating costs for high-output applications. Application: conveyors, pumps, and fans in continuous duty environments. Feature: IP55 enclosure and IC411 insulation. Benefit: Reliable operation in dusty, humid plants with extended motor life. Application: chemical processing, water treatment, and metalworking facilities. Feature: Cast iron frame (225) and robust bearings (6213-2Z/C3; 6210-2Z/C3). Benefit: Superior mechanical strength, vibration damping, and long bearing life. Application: heavy-duty process lines and demanding installations where uptime matters. Feature: 8 poles and S1 duty. Benefit: Suitable for steady torque and fixed-speed applications with predictable performance. Application: fans and pumps in regulated manufacturing lines. Feature: Explosion protection (EX-Protection Exec) and Gas Group IIC markings. Benefit: Enables safe operation in hazardous areas where local codes permit. Application: chemical plants and other risky environments. Feature: D-End top terminator box location and easy mounting (Frame 225). Benefit: Simplified electrical connections and faster installation. Application: new builds and retrofits requiring quick commissioning. Feature: Ambient temperature up to 50 °C and altitude up to 1000 m. Benefit: Maintains performance in diverse climates without extra cooling. Application: plants in tropical or high-altitude regions. Feature: 2 bearing configurations and IM class IMB5 IM3001. Benefit: Enhanced alignment and stability under heavy loads. Application: high-tidelity mechanical systems with precise shaft alignment needs.
