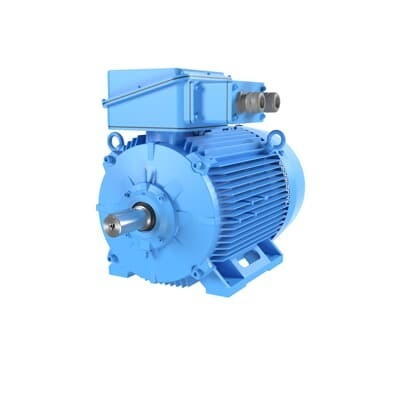

ABB 3GGA314410-ADCIN 3-Phase Squirrel Cage Motor - IE2
Part Number: 3GGA314410-ADCIN
Quick Summary
ABB 3GGA314410-ADCIN is a 3-phase squirrel cage motor built for demanding industrial drives in heavy-duty applications. Engineers often face reliability and energy-cost challenges when selecting motors for rugged environments; this design addresses those pain points with robust construction and proven efficiency. Key certifications and standards in this family include IP55 protection, IC411 insulation, and Ex protection for hazardous areas, aligning with stringent safety and regulatory requirements. By pairing IE2 efficiency with a cast-iron frame and easy installation features, it delivers lower life-cycle costs and predictable performance across harsh plant conditions.
Product Information
ABB Type Designation
M2GAX 315MLA 8
Invoice Description
M2GAX 315MLA 8
Product Name
3-Phase squirrel cage motor
Product Type
IGA2_-_M2GAX_Non-sparking_IE2_cast_iron_motor
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Selling Unit of Measure
piece
Country of Origin
India (IN)
Customs Tariff Number
85015381
Electrical Data
Temperature Class Default
T3
Altitude
1000 m
Ambient Temperature
50 °C
IC Class
IC411
IE Class Data (50 Hz)
IE Class IE2 | Full Load (100%) 92.3 % | Partial Load (75%) 92.3 % | Partial Load (50%) 91.3 %
IP Class
IP55
Insulation Class
ICLF
Direction of Rotation
Both sides
Number of Poles (High)
8
Two Speed Motor
No
Type of Duty
S1
Voltage Code
D
EX-Protection
Exec
Gas Group
IIC
Frame Material
Cast Iron
Frame Size
315
Bearing
6319/C3
Bearing NDE
6316/C3
IM Class
IMB3 IM1001
Terminator Box Location
D-End top
Package Level 1 Units
0 pallet (lift)
Product Net Weight
1150 kg
Gross Weight
1170 kg
UNSPSC
26101100
IE2 efficiency is paired with a rugged cast-iron frame, delivering measurable energy savings and reduced operating costs in continuous-duty applications such as pumps and fans. The robust 315 frame and durable bearings translate to lower maintenance intervals and longer service life, improving plant uptime and asset utilization. IP55 ingress protection and IC411 insulation enhance reliability in dusty, humid, and high- temperature environments, supporting compliant operation in chemical, food, and metals processing lines. Ex protection with IIC gas group capability enables safer installation in potentially explosive atmospheres, reducing risk and enabling broader commissioning in hazardous zones. The eight-pole design provides elevated starting torque and torque stability for heavy conveyors and mixers, while the reversible rotation supports flexible installation in compact layouts. Altitude tolerance up to 1000 m and ambient up to 50 °C extend applicability across global sites, with a 1-piece design and D-End top terminator box simplifying retrofits and service.
Get a Quick Quote for a ABB 3GGA314410-ADCIN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3GGA314410-ADCIN?
Enquire Now
FAQs
This motor uses a 315-frame cast-iron housing with a D-End top terminator box, designed for IMB3/IM1001 mounting classes. It supports standard 315 frame accessories and is compatible with common reductions and couplings used in heavy-duty drives. Installation benefits include straightforward wiring access and a robust protective enclosure suitable for high-duty environments.
The motor is IE2-class efficient with an eight-pole configuration. Electrical performance data at 50 Hz shows Full Load efficiency around 92.3% (percent values provided for 100%, 75%, and 50% load). This efficiency supports lower energy costs and improved lifecycle economics for continuous-duty applications like pumps and fans.
Yes. The motor includes Ex protection (Exec) and a Gas Group IIC designation, making it suitable for hazardous areas where flammable gases may be present. It also features IP55 ingress protection and robust insulation (IC411), addressing both safety and reliability in challenging environments found in chemical, oil, and gas processing.
Key protections include IP55 ingress protection and IC411 insulation class, providing reliable operation in dusty and humid environments while maintaining electrical integrity at elevated ambient temperatures. These ratings support longer service life, reduced maintenance, and safer operation in challenging production facilities.
Typical applications include pumps, fans, and conveyors in process industries, especially where reliability and energy efficiency are priorities. Benefits include reduced energy costs from IE2 efficiency, extended motor life from a cast-iron frame and robust bearings, and lower downtime due to rugged design and hazard-area suitability, resulting in a favorable return on investment over the motor’s lifecycle.
