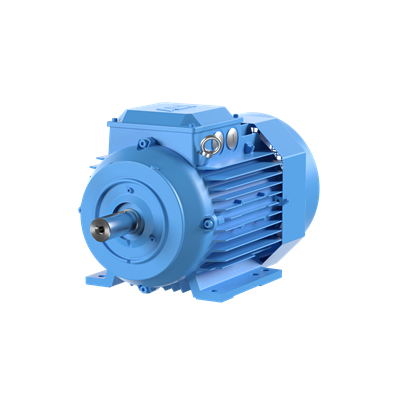

ABB 3GGL132217-AFC 3Phase Synchronous Reluctance - IE5
Part Number: 3GGL132217-AFC
Quick Summary
ABB 3GGL132217-AFC 3Phase Synchronous Reluctance motor delivers high-efficiency torque for demanding industrial drives. Plant engineers contend with rising energy costs, unpredictable downtime, and mounting compliance requirements in automation projects. This motor features IP55 enclosure, Ex protection, and IE5 efficiency, helping you meet safety, environmental, and energy targets. Its robust cast-iron frame and IMB3/IM1001 mounting simplify installation, while 4-pole operation supports reliable belt- or gear-driven systems. With a 5.5 kW rating at 500 V and 50 Hz, it balances performance and footprint for global production lines. Using these features can reduce total cost of ownership through better efficiency, lower maintenance, and simpler regulatory reporting. The design supports safe operation up to 40°C ambient and 1000 m altitude, expanding site compatibility.
Product Information
ABB Type Designation
M3GL 132SMA 4
Invoice Description
M3GL 132SMA 4
Product Name
3Phase Synchronous reluctance motor
Product Type
3GL5__M3GL_IE5_SynRM_Ex
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Selling Unit of Measure
piece
Country of Origin
Finland (FI)
Customs Tariff Number
85015220
Medium Description
5.5kW, 4P, Frame Size 132, 3 Phases, 500V, 50Hz, IP55 Enclosure, IMB3/IM1001 Mounting (3GGL132217-AFC)
Short Description
5.5kW, 4P, Frame Size 132, 3PH, 500V, 50Hz, IP55, IMB3/IM1001
Electrical Data
Connection Configuration
Y
Temperature Class Default
T3
Input Voltage (Uin)
500 V
Frequency (f)
50 Hz
Motor Operational Voltage
470 V
Output Power
5.5 kW
Altitude
1000 m
Ambient Temperature
40 °C
IC Class
IC411
IE Class Data (50 Hz)
IE Class IE5 | Full Load (100%) 92.8 % | Partial Load (75%) 91.9 % | Partial Load (50%) 89.4 %
IP Class
IP55
Insulation Class
ICLF
Direction of Rotation
Both sides
Number of Poles (High)
4
Two Speed Motor
No
Type of Duty
S9
Voltage Code
F
EX-Protection
Exec
Gas Group
IIC
Frame Material
Cast Iron
Frame Size
132
Bearing
6308-2Z/C3
Bearing NDE
6206-2Z/C3
IM Class
IMB3 IM1001
Terminator Box Location
D-End top
Package Level 1 Units
0 carton
Product Net Depth / Length
624 mm
Product Net Height
321 mm
Product Net Width
262 mm
Product Net Weight
63 kg
Gross Weight
68 kg
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
UNSPSC
26101100
Feature: 5.5 kW output with 4-pole 132 frame synchronous reluctance design delivers IE5 efficiency. Impact: lower energy consumption and cooler operation during continuous duty. Application: pumps, conveyors, and mixers in metalworking, chemical processing, and packaging lines. Feature: IP55 enclosure with Ex protection and Gas Group IIC rating enhances safety and regulatory compliance in hazardous zones. Impact: reduced risk of ignition sources and simplified approvals. Application: oil, gas, and chemical plants where dust, moisture, or gas presence is a concern. Feature: Cast-iron frame and IMB3/IM1001 mounting deliver rugged reliability and vibration damping. Impact: longer service life and easier OEM integration. Application: heavy-duty industrial drives subject to harsh environments. Feature: Y connection, 500 V input, 50 Hz operation, and ambient tolerance up to 40°C and 1000 m altitude. Impact: straightforward installation across global facilities and consistent performance at site elevation. Application: retrofits and new installations in wide geographic regions. Feature: IE5 efficiency with Full Load 92.8% and partial-load values of 91.9% (75%) and 89.4% (50%). Impact: measurable energy savings and improved process control. Application: variable torque tasks, conveyors, and pump lines with fluctuating loads. Feature: Frame 132, D-End top termination, and IMB3/IM1001 compatibility simplify wiring and maintenance. Impact: faster commissioning and reduced downtime. Application: OEM systems and aftermarket upgrades in manufacturing facilities.
