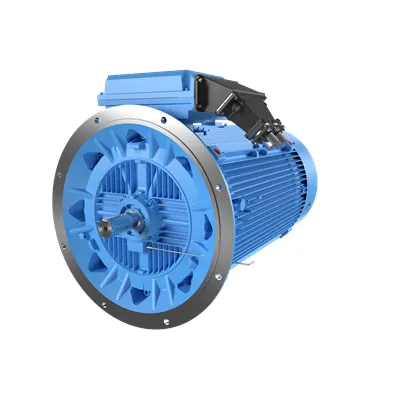

ABB 3GGP454520-BEK Dust Ignition Proof IE3 LV Motors - IP55
Part Number: 3GGP454520-BEK
Quick Summary
ABB 3GGP454520-BEK Dust Ignition Proof IE3 LV Motors deliver high-power drive for hazardous-area conveyors and mills. In hazardous environments, achieving reliable IE3 efficiency while meeting IP55 and explosion-safety requirements can be costly and complex. This motor aligns with IE3 efficiency standards, IP55 enclosure protection, and hazardous-area approvals (Ex protection, Gas Group IIC) to support safe, compliant operation across demanding applications. With a heavy-duty cast-iron frame, IMB5/IM3001 mounting, and robust bearings, it reduces downtime and maintenance expense. Leveraging Finland-origin engineering, it also offers configurable 8-pole performance and 500 V operation, delivering energy savings while supporting standardization of drives across your plant.
Product Information
ABB Type Designation
M3GP 450LB 8
Product Name
3-Phase squirrel cage motor
Product Type
3GP3__M3GP_IE3_CI
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Selling Unit of Measure
piece
Country of Origin
Finland (FI)
Customs Tariff Number
85015394
Medium Description
500kW, 8 Poles, Frame Size 450, 3 Phases, 500V, 50Hz, IP55 Enclosure, IMB5/IM3001 Mounting (3GGP454520-BEK)
Short Description
500kW, 8P, Frame Size 450, 3PH, 500V, 50Hz, IP55, IMB5/IM3001
Electrical Data
Connection Configuration
D
Temperature Class Default
T3
Input Voltage (Uin)
500 V
Frequency (f)
50 Hz
Output Power
500 kW
Altitude
1000 m
Ambient Temperature
40 °C
IC Class
IC411
IE Class Data (50 Hz)
IE Class IE3 | Full Load (100%) 94.6 % | Partial Load (75%) 94.9 % | Partial Load (50%) 94.6 %
IE Class Data (60 Hz)
IE Class IE3 | Full Load (100%) 95.0 % | Partial Load (75%) 95.0 % | Partial Load (50%) 94.3 %
IP Class
IP55
Insulation Class
ICLF
Direction of Rotation
Both sides
Number of Poles (High)
8
Two Speed Motor
No
Type of Duty
S1
Voltage Code
E
EX-Protection
Exec
Gas Group
IIC
Frame Material
Cast Iron
Frame Size
450
Bearing
6326/C3
Bearing NDE
6322/C3
IM Class
IMB5 IM3001
Terminator Box Location
Top
Package Level 1 Units
0 pallet (lift)
Product Net Depth / Length
2187 mm
Product Net Height
1231 mm
Product Net Width
966 mm
Product Net Weight
4000 kg
Gross Weight
4040 kg
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
UNSPSC
26101100
Dust ignition proof construction and IP55 protection minimize dust ingress and corrosion, delivering safer operation in explosion-hazard zones. This reduces unplanned downtime and extends motor life in cement, mining, and chemical processing environments, while simplifying compliance audits. IE3 efficiency class delivers measurable energy savings across full-load and partial-load conditions, yielding lower life-cycle costs. In continuous operation at 50 Hz, the motor maintains near-rated efficiency per IE3 data (Full Load 94.6%, 75% 94.9%, 50% 94.6%), contributing to lower electricity bills. Robu st mechanical design with cast iron frame 450, IMB5/IM3001 mounting, and precise bearings (6326/C3, 6322/C3) ensures rugged performance and easy retrofit, aiding maintenance teams by matching existing footprints and reducing procurement complexity. Ex protection, Gas Group IIC, and IC411 insulation provide regulatory compliance for hazardous-area drives, while features such as D connection, 8 poles, and 500 V supply support flexible drives with plant-wide standardization. Operational limits of altitude up to 1000 m and ambient 40 °C ensure stable performance across sites, while top-access terminator box and IMB5/IM3001 mounting simplify service and installation.
Get a Quick Quote for a ABB 3GGP454520-BEK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3GGP454520-BEK?
Enquire Now
FAQs
The 3GGP454520-BEK is designed for IMB5 IM3001 mounting on a 450 frame, with a Top Terminator Box Location and Cast Iron frame material. This combination streamlines retrofit projects by matching common motor mounting footprints, reducing modification work, and enabling straightforward alignment with existing drives and drive trains in mining, cement, or chemical plants.
At 50 Hz, the motor operates as IE3 and delivers Full Load efficiency around 94.6%, with 75% load efficiency at 94.9% and 50% load at 94.6%. These figures translate to meaningful energy savings across continuous operation and intermittent loads, supporting lower life-cycle costs in industrial drives and improved overall plant reliability.
Yes. The ABB 3GGP454520-BEK features Ex protection (Exec) and Gas Group IIC, IC411 insulation, plus IP55 enclosure protection, which together satisfy typical hazardous-area requirements. Its Dust Ignition Proof design, 8-pole 500 V, and 50 Hz operation enable safe, reliable drives in dusty or explosive atmospheres common in cement, mining, and chemical processing facilities.
The motor complies with IE3 efficiency standards, IP55 ingress protection, Ex-Protection for hazardous environments, and IC411 insulation. Additional qualifications include Gas Group IIC, Direction of Rotation configured for both sides, and harmonized mounting (IMB5 IM3001). Country of origin is Finland, with a 1000 m altitude rating and ambient up to 40 °C, supporting global deployment in regulated industrial settings.
Maintenance benefits come from a robust cast-iron frame, reliable bearings (6326/C3, 6322/C3), and top-access terminator box, which simplify servicing and reduce downtime. The IE3 efficiency improves energy consumption over the motor’s life, lowering operating costs. In regulated environments, the Ex protection and IP55 protection reduce ingress-related wear, contributing to longer service intervals and a faster return on investment when replacing older, less-efficient drives.
