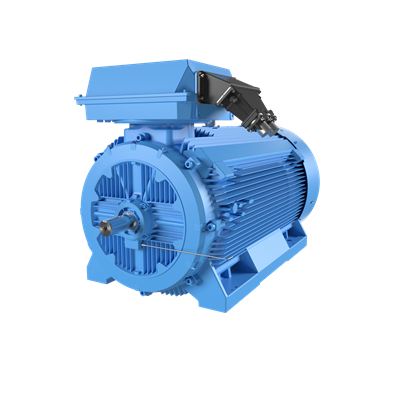

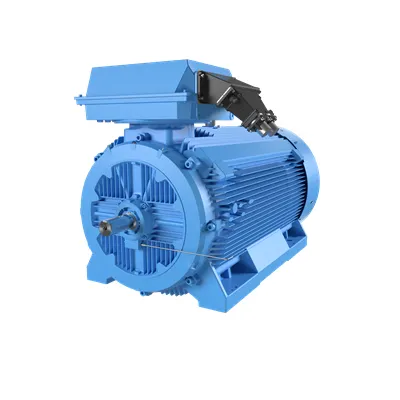

ABB 3GGP454530-ADK 3GP3 IE3 Dust Ignition Proof
Part Number: 3GGP454530-ADK
Quick Summary
ABB 3GGP454530-ADK is a 560 kW dust-ignition-proof three-phase motor designed for demanding industrial environments. In the field, operators often battle dusty, high-temperature areas that shorten equipment life and spike maintenance costs. This motor delivers IP55 protection, IE3 efficiency, and IMB3/IM1001 mounting compatibility to reduce unplanned downtime. With a 400 V, 50 Hz specification and an 8-pole design, it supports reliable operation across mining, cement, and chemical processing facilities, while helping you meet energy and safety targets. The combination of robust enclosure, high torque, and proven mounting standards makes it a practical choice for long-term, cost-conscious projects.
Product Information
ABB Type Designation
M3GP 450LC 8
Product Name
3-Phase squirrel cage motor
Product Type
3GP3__M3GP_IE3_CI
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Selling Unit of Measure
piece
Country of Origin
Finland (FI)
Customs Tariff Number
85015394
Medium Description
560kW, 8 Poles, Frame Size 450, 3 Phases, 400V, 50Hz, IP55 Enclosure, IMB3/IM1001 Mounting (3GGP454530-ADK)
Short Description
560kW, 8P, Frame Size 450, 3PH, 400V, 50Hz, IP55, IMB3/IM1001
Electrical Data
Connection Configuration
D
Temperature Class Default
T3
Input Voltage (Uin)
400 V
Frequency (f)
50 Hz
Output Power
560 kW
Altitude
1000 m
Ambient Temperature
40 °C
IC Class
IC411
IE Class Data (50 Hz)
IE Class IE3 | Full Load (100%) 94.6 % | Partial Load (75%) 94.6 % | Partial Load (50%) 94.0 %
IE Class Data (60 Hz)
IE Class IE3 | Full Load (100%) 95.0 % | Partial Load (75%) 95.0 % | Partial Load (50%) 94.2 %
IP Class
IP55
Insulation Class
ICLF
Direction of Rotation
Both sides
Number of Poles (High)
8
Two Speed Motor
No
Type of Duty
S1
Voltage Code
D
EX-Protection
Exec
Gas Group
IIC
Frame Material
Cast Iron
Frame Size
450
Bearing
6326/C3
Bearing NDE
6322/C3
IM Class
IMB3 IM1001
Terminator Box Location
Top
Package Level 1 Units
0 pallet (lift)
Product Net Depth / Length
2187 mm
Product Net Height
1231 mm
Product Net Width
966 mm
Product Net Weight
4350 kg
Gross Weight
4390 kg
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
UNSPSC
26101100
Dust ignition protection and EX-Protection plus IIC gas group enhance safety in hazardous dust environments, reducing explosion risk and safeguarding asset integrity while maintaining continuous operation in demanding plants. This translates to lower maintenance interruptions and improved overall equipment effectiveness (OEE) in mining, cement, or chemical processing lines. IE3 efficiency delivers measurable energy savings, especially on continuous S1 duty cycles, helping you achieve regulatory and sustainability goals without sacrificing performance. The IP55 enclosure protects internal windings and bearings from dust ingress and water exposure, enabling installation in both plant floors and outdoor locations with minimal protective add-ons. An 8-pole, 560 kW output at 400 V and 50 Hz yields high starting torque and steady torque delivery, optimizing belt drives and gear systems in constant-load applications. With IMB3/IM1001 mounting compatibility and a cast-iron frame (450) featuring 6326/C3 bearings, installation is straightforward on existing bases and reduces alignment time. Operating at up to 40 °C ambient and up to 1000 m altitude, the motor maintains performance in hot and high-altitude sites. Coupled with standard connection configuration D and a top terminator box, it simplifies wiring and service access, ensuring quick maintenance and reduced downtime.
Get a Quick Quote for a ABB 3GGP454530-ADK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3GGP454530-ADK?
Enquire Now
FAQs
The motor is designed for IMB3/IM1001 mounting with a top terminator box and a D connection configuration. This combination simplifies alignment with standard plant bases, accelerates installation, and ensures secure electrical and mechanical integration in hazardous environments.
IE Class IE3 efficiency is guaranteed at full load (100%), with 94.6% efficiency at 50 Hz across full and partial load conditions. This high efficiency reduces energy consumption in continuous-duty applications, lowering operating costs over the motor’s life and supporting energy management targets.
Yes. The motor features EX-Protection (Exec) and belongs to Gas Group IIC, along with an IP55 enclosure. These protections, combined with a robust dust-ignition-proof design, make it suitable for hazardous areas in mining, cement, and chemical plants when installed per applicable standards.
Key certifications and ratings include IP55 dust and water protection, IC Class ICF insulation, Temperature Class T3, and 8-pole IE3 efficiency. The unit is built for 400 V, 50 Hz operation with a 560 kW output, cast-iron frame (450), and IMB3/IM1001 mounting compatibility for rugged industrial use.
With IMB3/IM1001 mounting, top-placed terminator box, and robust bearings (6326/C3 and 6322/C3), maintenance access is streamlined, reducing downtime. The motor’s high IE3 efficiency and IP55 protection lower energy and protection-related costs, delivering a favorable total-cost-of-ownership (TCO) in demanding continuous-duty environments.
