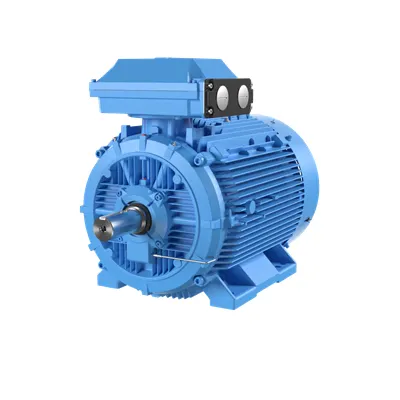

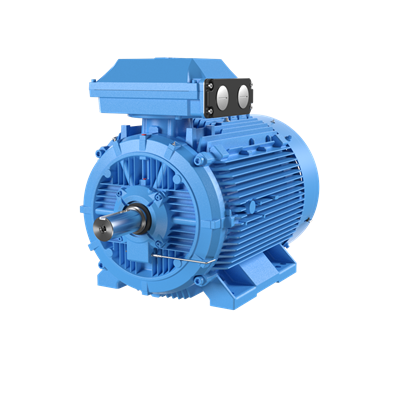

ABB 3GHL312412-AEC Synchronous reluctance motor - IE5 Ex
Part Number: 3GHL312412-AEC
Quick Summary
ABB 3GHL312412-AEC synchronous reluctance motor delivers high-efficiency power for demanding 132 kW drives. Engineers often contend with energy waste and downtime in harsh industrial spaces; this motor mitigates those issues with a rugged, explosion-protected design and precise control. It achieves IE5 efficiency, Ex eb protection, and IP55 enclosure, pairing safety with performance in hazardous environments. The 4-pole, frame size 315 package is designed for easy integration with ABB drives and IMB3/IM1001 mounting, simplifying installation and service. Built in Finland, it complements ABB EcoSolutions and supports long-term reliability, offering lower operating costs and improved lifecycle performance for automation projects.
Product Information
ABB Type Designation
M3HL 315MLA 4
Invoice Description
M3HL 315MLA 4
Product Name
3Phase Synchronous reluctance motor
Product Type
3HL5__M3HL_IE5_SynRM_Ex
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Selling Unit of Measure
piece
Country of Origin
Finland (FI)
Customs Tariff Number
85015381
Medium Description
132kW, 4P, Frame Size 315, 3 Phases, 500V, 50Hz, IP55 Enclosure, IMB3/IM1001 Mounting (3GHL312412-AEC)
Short Description
132kW, 4P, Frame Size 315, 3PH, 500V, 50Hz, IP55, IMB3/IM1001
Electrical Data
Connection Configuration
D
Temperature Class Default
T3
Input Voltage (Uin)
500 V
Frequency (f)
50 Hz
Motor Operational Voltage
470 V
Operating Frequency (fsw)
33.300 Hz
Output Power
132 kW
Altitude
1000 m
Ambient Temperature
40 °C
IC Class
IC411
IE Class Data (50 Hz)
IE Class IE5 | Full Load (100%) 97.1 % | Partial Load (75%) 97.1 % | Partial Load (50%) 96.7 %
IP Class
IP55
Insulation Class
ICLF
Direction of Rotation
Both sides
Number of Poles (High)
4
Two Speed Motor
No
Type of Duty
S9
Voltage Code
E
EX-Protection
Exeb
Gas Group
IIC
Frame Material
Cast Iron
Frame Size
315
Bearing
6319/C3
Bearing NDE
6316/C3VL0241
IM Class
IMB3 IM1001
Terminator Box Location
D-End top
Package Level 1 Units
0 pallet (lift)
Product Net Depth / Length
1315 mm
Product Net Height
852 mm
Product Net Width
590 mm
Product Net Weight
1116 kg
Gross Weight
1136 kg
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
ABB EcoSolutions
Yes
Environmental Product Declaration - EPD
Environmental Product Declaration for Synchronous reluctance (incl. increased safety) motors (55 kW-315 kW)
UNSPSC
26101100
Feature: IE5 efficiency and Ex eb safety provide substantial energy savings and safe operation in hazardous zones. Benefit: Reduces operating costs while enabling compliant performance in demanding production lines. Application: Metal processing, pumps, and conveyors where energy efficiency and safety are critical. Feature: IP55 enclosure, 4-pole design, and frame size 315 deliver rugged mechanical protection and reliable power delivery. Benefit: Minimizes downtime due to dust and moisture ingress and supports durable retrofits in busy facilities. Application: Packaging lines, cement plants, and mining conveyors operating in dirty environments. Feature: 500 V, 50 Hz operation with D connection configuration and IMB3/IM1001 mounting. Benefit: Seamless integration with standard power networks and ABB drives, reducing commissioning time. Application: New installations and upgrades within ABB automation ecosystems. Feature: Insulation Class ICFL, ambient temperature up to 40 °C, and altitude up to 1000 m. Benefit: Maintains performance and reliability in hot, high-altitude facilities. Application: Steelworks, chemical plants, and spheroidal graphite iron casting lines. Feature: Gas group IIC, Ex-protected motor design and robust bearings (6319/C3; 6316/C3VL0241) with IM mounting. Benefit: Enhanced safety and durability, lowering maintenance intervals. Application: Hazardous-area drives in mining and heavy industry. Feature: ABB EcoSolutions alignment and 132 kW synchronous reluctance technology. Benefit: Supports sustainable operations and improved lifecycle economics. Application: Automation-heavy facilities pursuing energy efficiency and responsible design.
