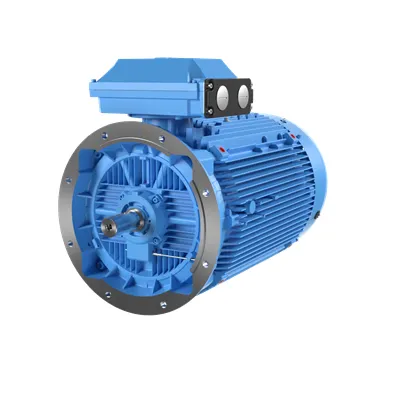

ABB 3GHL312832-BDC 3Phase Synchronous reluctance motor - IE5 Ex eb SynRM
Part Number: 3GHL312832-BDC
Quick Summary
ABB 3GHL312832-BDC 3Phase Synchronous reluctance motor delivers high-efficiency drive for heavy industry applications, including process plants and hazardous-area installations. Operators face rising energy costs and maintenance downtime, especially in tough environments. This motor meets IE5 efficiency, Exeb hazardous-area protection, and IP55 enclosure, delivering safer operation and longer service intervals. With 400 V supply, 50 Hz operation, and IMB5/IM3001 mounting compatibility, it integrates into existing ABB and OEM systems with minimal disruption. The design supports reliable performance across elevations up to 1000 m and ambient temperatures up to 40 °C, helping facilities reduce total cost of ownership while maintaining regulatory compliance.
Product Information
ABB Type Designation
M3HL 315LKC 4
Invoice Description
M3HL 315LKC 4
Product Name
3Phase Synchronous reluctance motor
Product Type
3HL5__M3HL_IE5_SynRM_Ex
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Selling Unit of Measure
piece
Country of Origin
Finland (FI)
Customs Tariff Number
85015381
Medium Description
200kW, 4P, Frame Size 315, 3 Phases, 400V, 50Hz, IP55 Enclosure, IMB5/IM3001 Mounting (3GHL312832-BDC)
Short Description
200kW, 4P, Frame Size 315, 3PH, 400V, 50Hz, IP55, IMB5/IM3001
Electrical Data
Connection Configuration
D
Temperature Class Default
T3
Input Voltage (Uin)
400 V
Frequency (f)
50 Hz
Motor Operational Voltage
370 V
Operating Frequency (fsw)
33.300 Hz
Output Power
200 kW
Altitude
1000 m
Ambient Temperature
40 °C
IC Class
IC411
IE Class Data (50 Hz)
IE Class IE5 | Full Load (100%) 97.3 % | Partial Load (75%) 97.2 % | Partial Load (50%) 96.7 %
IP Class
IP55
Insulation Class
ICLF
Direction of Rotation
Both sides
Number of Poles (High)
4
Two Speed Motor
No
Type of Duty
S9
Voltage Code
D
EX-Protection
Exeb
Gas Group
IIC
Frame Material
Cast Iron
Frame Size
315
Bearing
6319/C3
Bearing NDE
6316/C3VL0241
IM Class
IMB5 IM3001
Terminator Box Location
D-End top
Package Level 1 Units
0 pallet (lift)
Product Net Depth / Length
1521 mm
Product Net Height
880 mm
Product Net Width
590 mm
Product Net Weight
1533 kg
Gross Weight
1553 kg
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
ABB EcoSolutions
Yes
Environmental Product Declaration - EPD
Environmental Product Declaration for Synchronous reluctance (incl. increased safety) motors (55 kW-315 kW)
UNSPSC
26101100
Feature → Business Impact → Application: The 200 kW synchronous reluctance design delivers IE5 efficiency, reducing operating costs by lowering real-world energy consumption in continuous-duty drives, which translates to measurable year-over-year savings in process industries. This aligns with capital projects focused on energy performance contracts and long-term TCO reduction. Feature → Business Impact → Application: Exeb protection provides enhanced safety in hazardous zones, enabling compliant operation in chemical plants, refineries, and mining sites where ignition risk is present, while supporting lifecycle reliability. Feature → Business Impact → Application: IP55 enclosure protects against dust and water ingress, expanding installation flexibility for outdoor equipment pads, junction boxes, and equipment rooms with limited climate control. Feature → Business Impact → Application: IMB5/IM3001 mounting compatibility simplifies retrofits and OEM integrations, shortening installation times and reducing commissioning risk across existing ABB systems and third-party drives. Feature → Business Impact → Application: 315 mm frame, cast-iron construction and robust bearings enable long bearing life and reduced maintenance, translating to lower spindle repair costs in heavy-duty applications such as pumps and compressors. Feature → Business Impact → Application: Network-compatible 400 V, 50 Hz operation with four-pole design supports consistent torque delivery across 0–100% load, improving process stability in S9 duty cycles and demanding production lines.
Get a Quick Quote for a ABB 3GHL312832-BDC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3GHL312832-BDC?
Enquire Now
FAQs
This motor runs on 400 V, 50 Hz power and uses IMB5/IM3001 mounting. It is designed for D-type connection configurations and supports integration with ABB systems and compatible third-party drives, simplifying retrofits and new installations alike while maintaining robust performance in demanding environments.
Exeb protection ensures flameproof and explosion-protected operation in zones with ignition risk. For the 3GHL312832-BDC, this means safer startup, reduced risk of equipment-related ignition, and compliance with industry safety standards in chemical plants, refineries, and other ATEX/IECEx-regulated facilities.
IE5 efficiency indicates near-peak efficiency across full-load and part-load conditions, reducing energy consumption and operating costs. In S9 duty cycles, the motor maintains high efficiency at partial loads (as shown by IE class data), delivering cost savings over the motor’s lifetime without sacrificing reliability.
Yes. With IP55 enclosure and cast-iron frame, the motor withstands dust and moisture exposure typical of outdoor installations and harsh indoor environments. The combination supports reliable operation in challenging plants, outdoors near loading docks, or unconditioned equipment rooms.
Plan for periodic bearing checks and lubrication per IMB5/IM3001 mounting guidelines, accounting for 1000 m altitude and 40 °C ambient conditions. Ensure IEC/ATEX compliance for hazardous-area motors, verify wiring configurations (D) and connection integrity, and document IE5 performance data to support energy reporting and audits.
