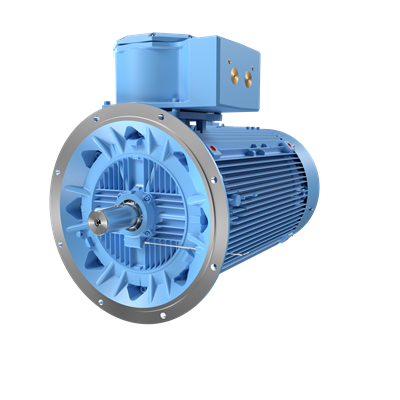

ABB 3GJP403520-BDM Flameproof IE4 Motor - Exdb
Part Number: 3GJP403520-BDM
Quick Summary
ABB 3GJP403520-BDM Flameproof IE4 motor is a high-efficiency 450 kW drive for hazardous-area processes in oil & gas, chemical, and mining facilities. Uptime in explosion-prone environments is often compromised by cooling challenges, protection gaps, and lengthy certification cycles, leading to costly outages. This motor combines Exdb flameproof protection, IP55 enclosure, and IC411 insulation, delivering robust performance in demanding service. With IMB5/IM3001 mounting and a rugged 400 frame, it enables straightforward installation while reducing operating costs and simplifying regulatory compliance across projects.
Product Information
Extended Description
3GJP403520-BDM ABB: Flameproof IE4 Super Premium Efficiency LV Motors, 450 kW, 400 V (3GJP403520-BDM)
ABB Type Designation
M3JP 400LB 6
Invoice Description
M3JP 400LD 6
Product Name
3-Phase squirrel cage motor
Product Type
3JP4__M3JP_IE4_Flameproof_Ex_db_motor
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Selling Unit of Measure
piece
Country of Origin
Finland (FI)
Customs Tariff Number
85015394
Medium Description
450kW, 6P, Frame Size 400, 3 Phases, 400V, 50Hz, IP55 Enclosure, IMB5/IM3001 Mounting (3GJP403520-BDM)
Short Description
450kW, 6P, Frame Size 400, 3PH, 400V, 50Hz, IP55, IMB5/IM3001
Electrical Data
Connection Configuration
D
Temperature Class Default
T4
Input Voltage (Uin)
400 V
Frequency (f)
50 Hz
Output Power
450 kW
Altitude
1000 m
Ambient Temperature
40 °C
IC Class
IC411
IE Class Data (50 Hz)
IE Class IE4 | Full Load (100%) 96.6 % | Partial Load (75%) 96.4 % | Partial Load (50%) 95.5 %
IP Class
IP55
Insulation Class
ICLF
Direction of Rotation
Both sides
Number of Poles (High)
6
Two Speed Motor
No
Type of Duty
S1
Voltage Code
D
EX-Protection
Exdb
Gas Group
IIB
Frame Material
Cast Iron
Frame Size
400
Bearing
6324/C3
Bearing NDE
6319/C3
IM Class
IMB5 IM3001
Terminator Box Location
D-End top
Package Level 1 Units
0 pallet (lift)
Product Net Depth / Length
1891 mm
Product Net Height
1121 mm
Product Net Width
840 mm
Product Net Weight
3331 kg
Gross Weight
3371 kg
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
UNSPSC
26101100
Feature Exdb flameproof protection → Business Impact Minimizes ignition risk in gas atmospheres, enabling safer operation and regulatory compliance for hazardous-area projects. Application Chemical plants, refineries, and mining operations requiring explosion protection. Feature IE4 Super Premium Efficiency → Business Impact Reduces energy consumption and total cost of ownership over the motor’s life. Application Continuous heavy-duty duty in 50 Hz, 400 V networks where energy costs matter. Feature IP55 enclosure and IC411 insulation → Business Impact Elevates reliability in dusty, humid, and variable-temperature environments, extending maintenance intervals. Application Outdoor or harsh indoor installations with demanding ambient conditions. Feature 6-pole design and 400 V at 50 Hz → Business Impact Delivers predictable torque and stable speed control with optimized cable runs and drive train simplicity. Application Heavy-load conveyors and pumps in process industries. Feature IMB5 IM3001 mounting and cast-iron frame size 400 → Business Impact Streamlines mounting, reduces installation time, and ensures compatibility with common baseplates. Application Retrofitting or new builds in standard industrial facilities. Feature Gas group IIB and Ex protection details → Business Impact Supports compliance with hazardous-area regulations, lowering project risk. Application Chemical and refining sectors with hydrocarbon atmospheres. Feature Operational envelope 1000 m altitude and 40 °C ambient → Business Impact Extends usable range in remote sites and hot climates, reducing design constraints. Application Offshore platforms and remote plants where space and environmental tolerance matter.
Get a Quick Quote for a ABB 3GJP403520-BDM
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3GJP403520-BDM?
Enquire Now
FAQs
Plan for Exdb flameproof protection with a proper enclosure and IMB5/IM3001 mounting. Use a 400 V, 50 Hz three-phase supply, ensure IP55 protection, and verify gas group IIB suitability. Follow the manufacturer’s alignment and torque specs for the 6-pole design, and install in a location within the ambient 40 °C and up to 1000 m altitude limits.
Key specs include IE4 efficiency with full-load ~96.6%, 450 kW output, 6 poles, and 400 V at 50 Hz. The motor is Exdb flameproof, IP55 protected, with IC411 insulation. These factors translate to lower energy costs, improved heat management, and reliable operation in hazardous environments across continuous duty (S1).
Yes. The Exdb flameproof protection, IP55 enclosure, gas group IIB rating, and 6P operation make it appropriate for chemical processing and mining where explosive atmospheres exist. Its IMB5/IM3001 mounting and robust cast-iron frame support rugged service, while 400 V 50 Hz operation aligns with standard industrial drives.
It features Exdb flameproof protection, IP55 enclosure, and IC411 insulation, along with IE4 energy efficiency. The motor is designed for gas group IIB environments, with a 400 V, 50 Hz specification and 6-pole construction, supporting compliance for hazardous-area installations and safety regulations in process industries.
IE4 efficiency drives lower electricity costs over the motor’s life, while Exdb protection and IP55 enclosure reduce external fault incidence, lowering maintenance frequency. The IMB5/IM3001 mounting simplifies installation and spare parts planning, and the cast-iron frame enhances durability in tough environments, supporting longer mean time between maintenance.
