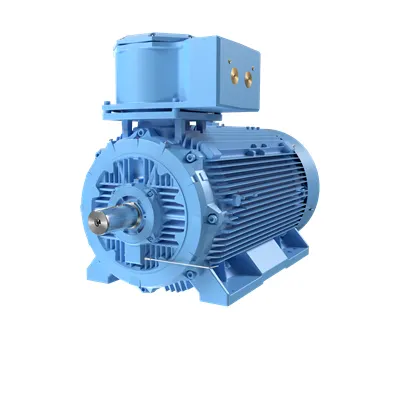

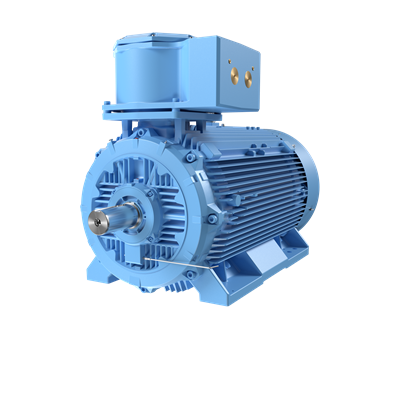

ABB 3GJP403530-ADM 3-Phase Motor - Exdb Flameproof IE4
Part Number: 3GJP403530-ADM
Quick Summary
ABB 3GJP403530-ADM is a 3-phase flameproof motor for hazardous-area industrial applications. In ATEX/IECEx environments, downtime and safety concerns threaten uptime and budgets. The unit features Exdb flameproof protection, IP55 enclosure, and IE4 efficiency, helping you meet stringent standards while cutting energy use. Manufactured in Finland with IMB3/IM1001 mounting and D-end top termination, it supports straightforward installation in demanding production lines. For engineers and procurement teams, this combination translates to fewer spares, simpler maintenance planning, and clearer regulatory alignment for 400 V 50 Hz systems in heavy-duty, continuous-duty applications.
Product Information
Extended Description
3GJP403530-ADM ABB: Flameproof IE4 Super Premium Efficiency LV Motors, 500 kW, 400 V (3GJP403530-ADM)
ABB Type Designation
M3JP 400LC 6
Invoice Description
M3JP 400LD 6
Product Name
3-Phase squirrel cage motor
Product Type
3JP4__M3JP_IE4_Flameproof_Ex_db_motor
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Selling Unit of Measure
piece
Country of Origin
Finland (FI)
Customs Tariff Number
85015394
Medium Description
500kW, 6P, Frame Size 400, 3 Phases, 400V, 50Hz, IP55 Enclosure, IMB3/IM1001 Mounting (3GJP403530-ADM)
Short Description
500kW, 6P, Frame Size 400, 3PH, 400V, 50Hz, IP55, IMB3/IM1001
Electrical Data
Connection Configuration
D
Temperature Class Default
T4
Input Voltage (Uin)
400 V
Frequency (f)
50 Hz
Output Power
500 kW
Altitude
1000 m
Ambient Temperature
40 °C
IC Class
IC411
IE Class Data (50 Hz)
IE Class IE4 | Full Load (100%) 96.6 % | Partial Load (75%) 96.4 % | Partial Load (50%) 95.6 %
IP Class
IP55
Insulation Class
ICLF
Direction of Rotation
Both sides
Number of Poles (High)
6
Two Speed Motor
No
Type of Duty
S1
Voltage Code
D
EX-Protection
Exdb
Gas Group
IIB
Frame Material
Cast Iron
Frame Size
400
Bearing
6324/C3
Bearing NDE
6319/C3
IM Class
IMB3 IM1001
Terminator Box Location
D-End top
Package Level 1 Units
0 pallet (lift)
Product Net Depth / Length
1891 mm
Product Net Height
1121 mm
Product Net Width
840 mm
Product Net Weight
3300 kg
Gross Weight
3340 kg
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
UNSPSC
26101100
Exdb flameproof protection is engineered to prevent ignition in explosive atmospheres, reducing the risk of catastrophic events and unplanned stoppages. This directly supports higher plant uptime and lowers insurance and remediation costs in hazardous-area facilities. Applications include oil and gas processing, chemical plants, and mining operations where reliable ignition protection is non-negotiable. IE4 efficiency delivers meaningful energy savings at full load (500 kW) and under partial loads, lowering operating costs and helping you meet energy performance targets without sacrificing torque or reliability. The IP55 enclosure and rugged Cast Iron frame provide robust protection against dust and moisture, enabling consistent performance on rugged shop floors and outdoor installations up to 1000 m altitude and 40 °C ambient. IMB3/IM1001 mounting and D-end top termination simplify installation, debugging, and future service, reducing commissioning time and long-term maintenance effort. This motor is well-suited for new builds and equipment upgrades requiring certified flameproof performance and long service life.
Get a Quick Quote for a ABB 3GJP403530-ADM
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3GJP403530-ADM?
Enquire Now
FAQs
The motor uses IMB3 IM1001 mounting with a D-End top terminator box, simplifying alignment with standard drives and control panels. This configuration supports straightforward retrofits and easier service access in constrained plant layouts, reducing commissioning time and spare-part complexity.
It features Exdb flameproof protection for explosive atmospheres, an IP55 enclosure for dust and moisture protection, and IE4 efficiency. The unit also complies with IC411 insulation practices and carries IIB gas-group suitability, aligning with common hazardous-area regulatory requirements.
The motor operates at 400 V, 50 Hz with a 500 kW output, 6 poles, and a frame size 400. It is a 3-phase inline configuration designed for continuous S1 duty in demanding industrial environments, with a maximum ambient of 40 °C and altitude up to 1000 m.
Best suited for hazardous-area sectors such as oil and gas, chemical processing, and mining, where reliable flameproof protection is required and energy efficiency must be maintained under continuous operation and variable loads.
IE4 efficiency reduces operating costs over the motor’s life, while Exdb protection minimizes ignition risk and downtime. The robust cast-iron frame and IP55 rating reduce wear from dust and moisture, and the mounting design simplifies service intervals and part replacement within standard maintenance cycles.
