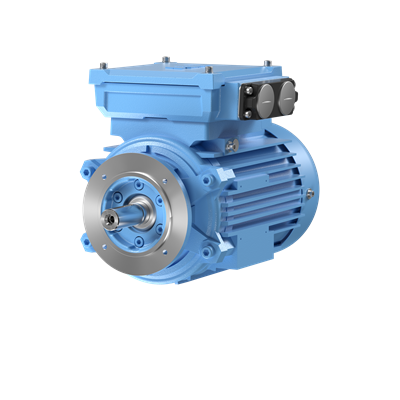

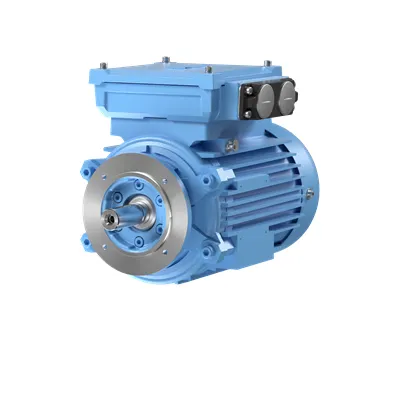

ABB 3GKP102510-ADH 3-Phase Squirrel Cage Motor - Exde Flameproof
Part Number: 3GKP102510-ADH
Quick Summary
ABB 3GKP102510-ADH is a 3-phase squirrel-cage motor designed for hazardous environments in industrial automation and process plants. This model addresses common safety and reliability concerns by delivering robust protection within demanding conditions and tight installation constraints. It features Exde flameproof protection, IP55 ingress protection, and IC411 insulation, while maintaining efficient IE2 performance across a four-pole configuration. The combination supports safer operation, reduced downtime, and predictable lifecycle costs for safety-critical applications. With origins in Finland and Poland, it benefits from a globally supported design and standardized ABB interfaces, simplifying procurement, spares availability, and integration with existing drives and control systems. In short, this motor brings rugged reliability to explosion-protected environments without compromising on efficiency or compatibility.
Product Information
ABB Type Designation
M3KP 100LA 4
Invoice Description
M3KP 100LA 4
Product Name
3-Phase squirrel cage motor
Product Type
3KP2__M3KP_IE2_Flameproof_Ex_db_eb_motor
Made To Order
No
Minimum Order Quantity
1 piece
Selling Unit of Measure
piece
Country of Origin
Finland (FI) | Poland (PL)
Customs Tariff Number
85015220
Replaced Part Number (OLD)
3GKP102510-ADG
Electrical Data
Temperature Class Default
T4
Altitude
1000 m
Ambient Temperature
40 °C
IC Class
IC411
IE Class Data (50 Hz)
IE Class IE2 | Full Load (100%) 85.3 % | Partial Load (75%) 86.0 % | Partial Load (50%) 84.9 %
IP Class
IP55
Insulation Class
ICLF
Direction of Rotation
Both sides
Number of Poles (High)
4
Two Speed Motor
No
Type of Duty
S1
Voltage Code
D
EX-Protection
Exde
Gas Group
IIB
Frame Material
Cast Iron
Frame Size
100
Bearing
6206-2Z/C3
Bearing NDE
6206-2Z/C3
IM Class
IMB3 IM1001
Terminator Box Location
Top
Package Level 1 Units
0 carton
Product Net Weight
61 kg
Gross Weight
66 kg
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
UNSPSC
26101100
Feature → Business Impact → Application: Exde flameproof protection delivers certified explosion protection for gassy or dust-laden environments, reducing risk of ignition and enabling safe operation in hazardous zones. This directly improves compliance and worker safety, while enabling use in petrochemical, mining, and chemical processing facilities. Application: hazardous area conveyors and pumps where ignition hazards are a concern. Feature → Business Impact → Application: IP55 ingress protection guards against dust and water ingress, minimizing service interruptions and extending bearing life in dirty or damp installation sites. Application: outdoor or wash-down areas, and plants with high humidity where uptime matters. Feature → Business Impact → Application: IC411 insulation class ensures thermal robustness at 40 °C ambient and up to 1000 m altitude, supporting reliable torque delivery in challenging environments. Application: high-altitude facilities or installations with elevated ambient temperatures. Feature → Business Impact → Application: IE2 efficiency with full-load 85.3% and favorable partial-load figures reduces energy costs at scale, delivering measurable lifecycle savings. Application: continuous-running motors in process lines and cyclical operations with variable loading. Feature → Business Impact → Application: 4-pole design and IMB3 IM1001 mounting compatibility streamline installation and spare part planning, reducing commissioning time and maintenance overhead. Application: plant modernization projects or upgrades to existing ABB platforms. Feature → Business Impact → Application: Exde protection and gas group IIB compatibility provide a robust solution for fuel handling, refineries, and chemical plants where regulatory compliance and long-term availability are essential. Application: explosion-protected motors for hazardous process areas. These combined attributes support safer operation, lower total cost of ownership, and smoother integration with ABB control ecosystems.
Get a Quick Quote for a ABB 3GKP102510-ADH
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3GKP102510-ADH?
Enquire Now
FAQs
This motor is designed for Exde flameproof environments with IP55 protection and IC411 insulation. Installers should plan for a top-terminator box, a 4-pole arrangement, and IMB3 IM1001 mounting. Verify ambient conditions up to 40 °C and altitude up to 1000 m, and ensure proper gland connections to maintain flameproof integrity. Spare parts availability from ABB is a key benefit.
According to IE Class Data, Full Load (100%) efficiency is 85.3%, Partial Load (75%) is 86.0%, and Partial Load (50%) is 84.9%. These figures indicate stable efficiency across typical load profiles, supporting energy-cost savings in continuous or frequent-start/stop operations common in process lines and conveyors.
Yes. The motor features Exde explosion protection and is rated for Gas Group IIB, making it suitable for hazardous process areas in refineries, chemical plants, and other installations where flammable gases may be present. IP55 protection further mitigates dust ingress in tough environments, supporting reliable operation.
The motor aligns with ABB control ecosystems, offering a 4-pole design, IE2 efficiency, and IM Class IMB3 IM1001 compatibility. Voltage Code D supports standard industrial electrical infrastructure. Its top-terminator box layout simplifies wiring, while its frame and bearing arrangement (Cast Iron frame 100, 6206-2Z/C3) support robust mounting and straightforward spare-part matching.
This model supersedes 3GKP102510-ADG and is supported by ABB’s global service network. Minimum order quantity is 1 piece, with a documented replacement path and ongoing availability of spares for bearings, seals, and frame components. The durable Cast Iron frame and standard mounting enables predictable maintenance planning and lifecycle cost containment.
