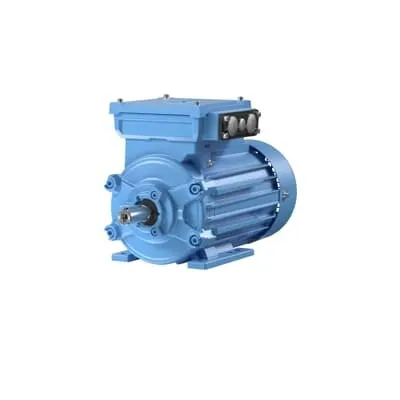

ABB 3GKP102820-ASK 3-Phase Motor - Flameproof IE3
Part Number: 3GKP102820-ASK
Quick Summary
ABB 3GKP102820-ASK is a flameproof IE3 motor designed for hazardous-location industrial drives. Maintenance and compliance in harsh environments demand certified, reliable motors with long service life. Key certifications include Exde flameproof protection, IP55 enclosure, and IE3 efficiency, backed by robust IMB3/IM1001 mounting. Its 400 V, 50 Hz supply, 4-pole design, and Y-connection simplify installation, spare-part sourcing, and downstream maintenance planning. For procurement teams, this model supports energy savings and regulatory alignment across chemical, oil and gas, and mining applications. Some catalogs mark it obsolete, but the technical data remain valuable for compliance and legacy systems. Consider upgrading to the current ABB IE3 flameproof range for longer-term support and easier procurement.
Product Information
Maximum Order Quantity
7 piece
Configuration Only
No
Country of Origin
Poland (PL)
Lead Time
0 day
Made To Order
No
Product Sales Status
Obsolete
Quote Only
No
Stocked At Warehouses
NOATDRLCEXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
M3KP 100LKB 4
Invoice Description
M3KP 100LKB 4
Product Name
3-Phase squirrel cage motor
Product Type
3KP3__M3KP_IE3_Flameproof_Exde_motor
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Selling Unit of Measure
piece
Country of Origin
Finland (FI) | Poland (PL)
Customs Tariff Number
85015220
Replaced Part Number (OLD)
3GKP102520-ASL
Stocked At (Warehouses)
Menden, Germany
Medium Description
3kW, 4 Poles, Frame Size 100, 3 Phases, 400V, 50Hz, IP55 Enclosure, IMB3/IM1001 Mounting (3GKP102820-ASK)
Short Description
3kW, 4P, Frame Size 100, 3PH, 400V, 50Hz, IP55, IMB3/IM1001
Electrical Data
Connection Configuration
Y
Temperature Class Default
T4
Input Voltage (Uin)
400 V
Frequency (f)
50 Hz
Output Power
3 kW
Altitude
1000 m
Ambient Temperature
40 °C
IC Class
IC411
IE Class Data (50 Hz)
IE Class IE3 | Full Load (100%) 87.7 % | Partial Load (75%) 88.7 % | Partial Load (50%) 88.4 %
IE Class Data (60 Hz)
IE Class IE3 | Full Load (100%) 89.5 % | Partial Load (75%) 89.6 % | Partial Load (50%) 88.2 %
IP Class
IP55
Insulation Class
ICLF
Direction of Rotation
Both sides
Number of Poles (High)
4
Two Speed Motor
No
Type of Duty
S1
Voltage Code
S
EX-Protection
Exdbeb
Gas Group
IIB
Frame Material
Cast Iron
Frame Size
100
Bearing
6206-2Z/C3
Bearing NDE
6205-2Z/C3
IM Class
IMB3 IM1001
Terminator Box Location
D-End top
Package Level 1 Units
0 carton
Product Net Depth / Length
501 mm
Product Net Height
297 mm
Product Net Width
217 mm
Product Net Weight
70 kg
Gross Weight
75 kg
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
UNSPSC
26101100
Feature Exde flameproof protection provides explosion protection in gas environments, reducing the risk of ignition and enabling safer operation in hazardous locations. Business Impact This translates to lower safety-related downtime and a stronger compliance posture across process plants. Application Chemical processing, oil & gas facilities, and mining operations where safety-critical drives must meet strict explosion-protection standards. Feature IE3 premium efficiency class delivers energy savings across full-load and part-load operation, reducing operating costs and improving sustainability metrics. Business Impact Lower energy consumption means faster return on investment and reduced total cost of ownership in continuous-duty applications such as pumps and fans. Application Long-running motor systems in water treatment, ventilation, and process lines. Feature IP55 enclosure with IMB3/IM1001 mounting compatibility enhances durability in dusty, humid, or vibration-prone environments. Business Impact Improves uptime, simplifies installation, and accelerates commissioning in factory floors and outdoor installations. Application Conveyor drives, mixers, and fans in challenging plants. Feature 400 V, 50 Hz operation with Y-configuration and a four-pole design optimizes grid compatibility and torque delivery. Business Impact Enables straightforward electrical integration, reduces wiring errors, and supports standardized spare parts. Application European and global plants with common 400 V networks. Feature Frame size 100, 3 kW rating and 4-pole specification provide a compact yet capable motor footprint with predictable torque curves. Business Impact Supports space-limited installations while delivering reliable performance, improving line throughput and maintenance planning. Application Packaging lines, material handling, and process pumps. Note on lifecycle and compatibility The product is listed as Obsolete in some catalogs, but its technical data remain relevant for legacy systems and regulatory reference. Consider upgrading to the updated ABB IE3 flameproof motor lineup for longer-term support, improved parts availability, and enhanced service options.
Get a Quick Quote for a ABB 3GKP102820-ASK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3GKP102820-ASK?
Enquire Now
FAQs
Yes. The 3GKP102820-ASK features Exde flameproof protection (Exdbeb) and an IP55 enclosure, making it suitable for hazardous locations (IIB gas environments). It supports IMB3/IM1001 mounting and a 400 V, 50 Hz supply with a Y-configuration, which simplifies safe installation and ongoing maintenance in process plants.
The motor is rated for 3 kW output at 400 V and 50 Hz, with a 4-pole configuration. It uses a Y connection, has IE3 efficiency, an IP55 enclosure, and IC411 insulation. It is designed for frame size 100 and IMB3/IM1001 mounting, suitable for hazardous-area drives in European networks.
Yes. The 3GKP102820-ASK supports IMB3 IM1001 mounting with a D-End top terminator box location, frame size 100, and 4-pole design. The Y connection and 400 V supply further simplify retrofit and integration into established plant layouts, reducing commissioning time and parts compatibility concerns.
The product is listed as Obsolete in some catalogs, with a Lead Time of 0 days in data fields. Availability varies by region; it is important to consult ABB for current replacement options or legacy-support paths and to review corresponding newer flameproof IE3 motor families for long-term service and parts support.
Typical applications include hazardous-area drives in chemical processing, oil and gas facilities, and mining operations. The motor’s flameproof Exde protection, IP55 enclosure, 4-pole design, and 3 kW rating make it suitable for pumps, mixers, conveyors, and other equipment operating in atmospheres with gas hazards while maintaining energy efficiency and safe, reliable operation.
