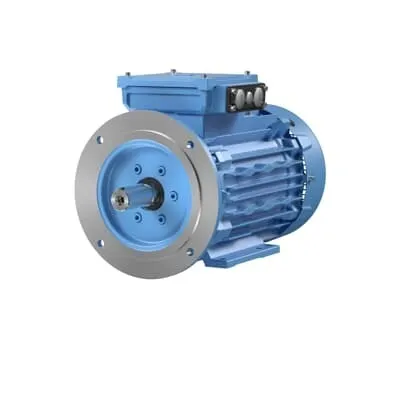

ABB 3GKP132270-HDK Flameproof IE3 Motor - Exdbeb
Part Number: 3GKP132270-HDK
Quick Summary
Flameproof IE3 Motor is a 7.5 kW, 400 V, 3-phase drive for hazardous-area applications. Operators struggle with reliability and compliance in explosive atmospheres, where downtime and safety risk erode productivity. This ABB flameproof design combines Exdbeb protection, IP55 enclosure, and IC411 insulation to meet harsh-site needs. In addition to safety, it delivers reliable energy efficiency and easy integration with 400 V drives—helping you cut operating costs and simplify maintenance. Designed for continuous S1 duty and 1000 m altitude, the motor maintains performance under demanding conditions. With compact 132 frame and cast-iron construction, installation is straightforward in existing basements and plant rooms. This combination meets stringent industrial standards while delivering a solid return on investment.
Product Information
Extended Description
3GKP132270-HDK ABB: Flameproof IE3 Premium Efficiency LV Motors, 7.5 kW, 400 V (3GKP132270-HDK)
ABB Type Designation
M3KP 132SMG 4
Invoice Description
M3KP 132SMG 4
Product Name
3-Phase squirrel cage motor
Product Type
3KP3__M3KP_IE3_Flameproof_Ex_db_eb_motor
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Selling Unit of Measure
piece
Country of Origin
Finland (FI) | Poland (PL)
Customs Tariff Number
85015220
Short Description
7.5kW, 4P, Frame Size 132, 3PH, 400V, 50Hz, IP55, IMB35/IM2001
Electrical Data
Connection Configuration
D
Temperature Class Default
T4
Input Voltage (Uin)
400 V
Frequency (f)
50 Hz
Output Power
7.5 kW
Altitude
1000 m
Ambient Temperature
40 °C
IC Class
IC411
IE Class Data (50 Hz)
IE Class IE3 | Full Load (100%) 90.4 % | Partial Load (75%) 91.4 % | Partial Load (50%) 91.5 %
IE Class Data (60 Hz)
IE Class IE3 | Full Load (100%) 91.8 % | Partial Load (75%) 92.2 % | Partial Load (50%) 91.7 %
IP Class
IP55
Insulation Class
ICLF
Direction of Rotation
Both sides
Number of Poles (High)
4
Two Speed Motor
No
Type of Duty
S1
Voltage Code
D
EX-Protection
Exdbeb
Gas Group
IIB
Frame Material
Cast Iron
Frame Size
132
Bearing
6208-2Z/C3
Bearing NDE
6208-2Z/C3
IM Class
IMB35 IM2001
Terminator Box Location
D-End top
Package Level 1 Units
0 carton
Product Net Depth / Length
576 mm
Product Net Height
346 mm
Product Net Width
294 mm
Product Net Weight
110 kg
Gross Weight
115 kg
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
UNSPSC
26101100
Feature: IE3 Premium Efficiency alignment reduces electrical losses and operating costs over the motor’s life. Business Impact: lower energy bills and improved overall equipment efficiency (OEE) for pumps, fans, and conveyors. Application: ideal for chemical processing lines and mining conveyors where energy cost per kW matters. Feature: Exdbeb explosion protection with IP55 enclosure. Business Impact: enhanced worker safety and regulatory compliance in hazardous areas, reducing risk exposure and downtime. Application: suitable for oil, gas, and chemical installations with flameproof requirements. Feature: Cast Iron frame (132) and robust bearings (6208-2Z/C3). Business Impact: longer service life, lower maintenance cycles, and higher reliability in harsh environments. Application: heavy-duty material handling and process equipment. Feature: Electrical and duty details – 400 V, 50 Hz, 4-pole, S1 duty, IC411 insulation, Temperature Class T4. Business Impact: predictable performance across ambient conditions and easy integration with standard plant low-voltage drives. Application: general purpose with proven duty profile in industrial plants. Feature: Terminator box location D-End top and D connection configuration. Business Impact: simplifies electrical installation and service access, reducing commissioning time. Application: retrofits and new installations in compact plant layouts. Feature: Frame 132, weight around 110–115 kg, IP55, gas group IIB. Business Impact: compact footprint with rugged enclosure supports installation in constrained spaces while meeting hazardous-area standards. Application: packaging, mixers, and conveyors in hazardous environments. 4-pole design and IE3 class deliver measurable energy savings even in continuous operation.
Get a Quick Quote for a ABB 3GKP132270-HDK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3GKP132270-HDK?
Enquire Now
FAQs
For installation in hazardous areas, ensure Exdbeb explosion protection and IP55 enclosure are intact, and connect using the D-configuration as specified. Confirm the terminating box position is D-End top to ease maintenance access, and mount on a compatible base that supports a 132 frame with 1000 m altitude rating. Use the 400 V supply and 50 Hz frequency per motor data sheet.
At 50 Hz, IE3 classification provides Full Load (100%) efficiency of 90.4%, with higher efficiency at partial loads (75%: 91.4%, 50%: 91.5%). At 60 Hz, Full Load efficiency reaches 91.8%, with 75% and 50% loads at 92.2% and 91.7% respectively, enabling meaningful energy savings across typical duty cycles.
Yes. The Exdbeb flameproof protection, IP55 enclosure, and IIB gas group make the motor suitable for hazardous-area chemical processing and mining environments. The 4-pole, 7.5 kW design supports continuous S1 duty, while the cast-iron frame and robust bearings withstand challenging plant conditions.
Key certifications include Exdbeb explosion protection for hazardous areas, IP55 ingress protection, and IC411 insulation characteristics. The motor is designed for ATEX/IECEx-aligned usage in hazardous environments and supports reliable operation under continuous duty in demanding industrial settings.
The IE3 efficiency class reduces energy costs over the motor’s life, delivering a faster payback in pumps and conveyors. The Ex protection and IP55 enclosure lower maintenance risk in harsh environments, while the 132 frame’s cast-iron construction minimizes downtime due to wear. Easy installation and long service intervals further enhance ROI.
