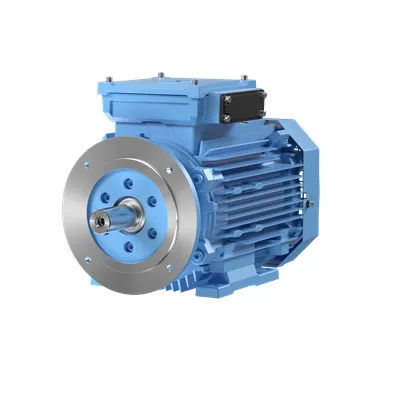

ABB 3GKP132270-JDK 3-Phase Squirrel Cage Motor - Exdbeb
Part Number: 3GKP132270-JDK
Quick Summary
ABB 3GKP132270-JDK is a flameproof 3-phase motor for hazardous-area applications. Engineers face downtime and safety risk when protection and installation compatibility are uncertain. This model delivers Exdbeb flameproof protection, an IP55 enclosure, and IE3 premium efficiency to meet rigorous standards. With a 7.5 kW rating at 400 V, 4 poles and IMB34/IM2101 mounting, it supports compliant installation across Finland and Poland. For procurement teams, the combination of robust protection and high efficiency translates into lower life-cycle costs, reduced energy spend, and easier service in remote or restricted locations. The result is safer operation, faster project timelines, and a clearer path to regulatory compliance in heavy industries.
Product Information
Extended Description
3GKP132270-JDK ABB: Flameproof IE3 Premium Efficiency LV Motors, 7.5 kW, 400 V (3GKP132270-JDK)
ABB Type Designation
M3KP 132SMG 4
Invoice Description
M3KP 132SMG 4
Product Name
3-Phase squirrel cage motor
Product Type
3KP3__M3KP_IE3_Flameproof_Ex_db_eb_motor
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Selling Unit of Measure
piece
Country of Origin
Finland (FI) | Poland (PL)
Customs Tariff Number
85015220
Medium Description
7.5kW, 4 Poles, Frame Size 132, 3 Phases, 400V, 50Hz, IP55 Enclosure, IMB34/IM2101 Mounting (3GKP132270-JDK)
Short Description
7.5kW, 4P, Frame Size 132, 3PH, 400V, 50Hz, IP55, IMB34/IM2101
Electrical Data
Connection Configuration
D
Temperature Class Default
T4
Input Voltage (Uin)
400 V
Frequency (f)
50 Hz
Output Power
7.5 kW
Altitude
1000 m
Ambient Temperature
40 °C
IC Class
IC411
IE Class Data (50 Hz)
IE Class IE3 | Full Load (100%) 90.4 % | Partial Load (75%) 91.4 % | Partial Load (50%) 91.5 %
IE Class Data (60 Hz)
IE Class IE3 | Full Load (100%) 91.8 % | Partial Load (75%) 92.2 % | Partial Load (50%) 91.7 %
IP Class
IP55
Insulation Class
ICLF
Direction of Rotation
Both sides
Number of Poles (High)
4
Two Speed Motor
No
Type of Duty
S1
Voltage Code
D
EX-Protection
Exdbeb
Gas Group
IIB
Frame Material
Cast Iron
Frame Size
132
Bearing
6208-2Z/C3
Bearing NDE
6208-2Z/C3
IM Class
IMB34 IM2101
Terminator Box Location
D-End top
Package Level 1 Units
0 carton
Product Net Depth / Length
576 mm
Product Net Height
346 mm
Product Net Width
294 mm
Product Net Weight
110 kg
Gross Weight
115 kg
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
UNSPSC
26101100
Feature: Exdbeb flameproof protection ensures safe operation in gas-exposed environments. Business Impact: Reduces risk of ignition and potential downtime, supporting compliant, continuous production. Application: Suitable for chemical processing, oil and gas, and mining facilities where hazardous atmospheres are present. Feature: IE3 premium efficiency delivers measurable energy savings. Business Impact: Lower running costs and cooler operating temperatures, contributing to longer motor life. Application: Ideal for continuous-duty fans, pumps, and conveyors in industrial automation systems.Feature: IP55 enclosure and ICFL insulation support rugged operation. Business Impact: Superior dust and water ingress protection plus reliable insulation at elevated ambient temperatures, minimizing maintenance cycles. Application: Outdoor or harsh indoor installations with up to 40 °C ambient and up to 1000 m altitude.Feature: 7.5 kW output, 400 V, 50 Hz, 4 poles. Business Impact: Optimized speed-torque balance for precise control and high starting torque in demanding loads. Application: General-purpose fixed-speed drives and belt-driven applications in hazardous areas.Feature: D connection with IMB34/IM2101 mounting simplifies installation. Business Impact: Streamlines commissioning and reduces downtime during retrofit or new-build projects. Application: Factory floors and equipment cabinets where consistent mounting standards are required.Industry-specific context: The combination of Ex protection, IE3 efficiency, and robust mechanical design supports compliance with international safety standards while delivering dependable performance in hazardous area motors used across petrochemical, mining, and heavy process industries.
Get a Quick Quote for a ABB 3GKP132270-JDK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3GKP132270-JDK?
Enquire Now
FAQs
When installing the ABB 3GKP132270-JDK, ensure Exdbeb flameproof protection is maintained, IP55 enclosure integrity is preserved, and the D-type connection with IMB34/IM2101 mounting is respected. Verify gas group IIB suitability, allow for up to 1000 m altitude, and plan for 400 V, 50 Hz supply. Adequate clearance, correct terminal box orientation, and proper torque for mounting screws will minimize vibration and extend motor life.
This motor delivers 7.5 kW output with 4 poles, designed for 50 Hz operation. IE3 premium efficiency improves energy use across full-load and partial-load conditions, with typical full-load efficiency around 90%+. The motor operates under an ambient up to 40 °C and altitude up to 1000 m, ensuring stable performance in industrial facilities.
Yes, the motor is designed for hazardous-area use with Exdbeb flameproof protection and a gas group rating of IIB. It features an IP55 enclosure and ICFL insulation, supporting safe operation in protective zones. The IE3 efficiency class further reinforces compliance with energy and performance standards in demanding industries.
The Exdbeb fire-flame protection, IP55 rating, and robust IMB34/IM2101 mounting provide a clear path to regulatory compliance for hazardous-area motors. The IE3 efficiency reduces energy costs, while the solid frame and mounting simplify maintenance logistics. With FI/PL origin, cross-border procurement can be streamlined for multinational projects.
In automation projects, the ABB Exdbeb motor delivers safety and reliability in hazardous environments, translating to reduced downtime and maintenance costs. Energy savings from IE3 efficiency lower total cost of ownership, while the robust construction supports longer service intervals. For ROI, factor in energy savings, reduced risk, and easier compliance documentation.
