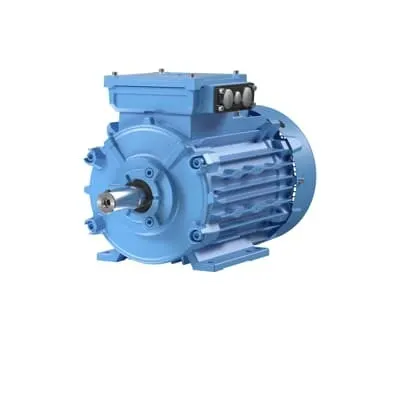

ABB 3GKP134270-ASK 3-Phase Flameproof IE3 Motor - Exdbeb
Part Number: 3GKP134270-ASK
Quick Summary
Flameproof IE3 motor powers reliable, safe operation for 3 kW drives in hazardous industrial environments. Engineers face uptime pressure, regulatory audits, and costly maintenance when motors operate in ATEX zones. This design combines Exdbeb flameproof protection, IP55 sealing, and IE3 efficiency to meet safety and energy goals. Designed for Frame Size 132 and 8 poles, it handles high starting torque and variable speeds in demanding plants. Originating from Finland, the motor supports robust reliability, global standards, and compatibility with ABB powertrain ecosystems. With IMB3/IM1001 mounting and 400 V, 50 Hz operation, installation is straightforward, and spare parts are readily available, minimizing downtime.
Product Information
Extended Description
3GKP134270-ASK ABB: Flameproof IE3 Premium Efficiency LV Motors, 3 kW, 400 V (3GKP134270-ASK)
ABB Type Designation
M3KP 132SMG 8
Product Name
3-Phase squirrel cage motor
Product Type
3KP3__M3KP_IE3_Flameproof_Ex_db_eb_motor
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Selling Unit of Measure
piece
Country of Origin
Finland (FI)
Customs Tariff Number
85015220
Medium Description
3kW, 8 Poles, Frame Size 132, 3 Phases, 400V, 50Hz, IP55 Enclosure, IMB3/IM1001 Mounting (3GKP134270-ASK)
Short Description
3kW, 8P, Frame Size 132, 3PH, 400V, 50Hz, IP55, IMB3/IM1001
Electrical Data
Connection Configuration
Y
Temperature Class Default
T4
Input Voltage (Uin)
400 V
Frequency (f)
50 Hz
Output Power
3 kW
Altitude
1000 m
Ambient Temperature
40 °C
IC Class
IC411
IE Class Data (50 Hz)
IE Class IE3 | Full Load (100%) 83.5 % | Partial Load (75%) 83.6 % | Partial Load (50%) 81.6 %
IE Class Data (60 Hz)
IE Class IE3 | Full Load (100%) 86.5 % | Partial Load (75%) 86.3 % | Partial Load (50%) 84.1 %
IP Class
IP55
Insulation Class
ICLF
Direction of Rotation
Both sides
Number of Poles (High)
8
Two Speed Motor
No
Type of Duty
S1
Voltage Code
S
EX-Protection
Exdbeb
Gas Group
IIB
Frame Material
Cast Iron
Frame Size
132
Bearing
6208-2Z/C3
Bearing NDE
6208-2Z/C3
IM Class
IMB3 IM1001
Terminator Box Location
D-End top
Package Level 1 Units
0 carton
Product Net Depth / Length
576 mm
Product Net Height
346 mm
Product Net Width
294 mm
Product Net Weight
106 kg
Gross Weight
111 kg
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
UNSPSC
26101100
Ex protection and hazardous-area suitability drive safer operations and regulatory compliance in chemical, oil & gas, or mining environments, while simplifying procurement through standardized mounting and footprints. The Exdbeb flameproof rating protects the motor windings in air-filled enclosures, reducing the risk of ignition and enabling reliable continuous operation in ATEX zones. This translates to lower risk exposure for personnel and plants, and smoother maintenance planning. Premium IE3 efficiency delivers measurable energy savings, with full-load efficiency around 83.5% at 50 Hz, reducing operating costs over the motor’s life and supporting sustainability goals. IP55 enclosure and ICFL insulation support durability in dusty, humid settings and high-temperature areas, minimizing heat-related downtime and extending service intervals. The frame size 132, 8 poles, and 3 kW rating provide a balanced blend of torque and speed for IMB3/IM1001 mounting, enabling fast, trouble-free installation and compatibility with ABB drives for plant-wide control. A cast-iron frame guarantees rugged mechanical integrity, while a 106 kg net weight and 111 kg gross weight reflect a solid, serviceable asset with dependable spare-part availability. Overall, the motor’s continuous duty (S1) with a 400 V, 50 Hz supply ensures predictable performance in harsh environments, supporting uptime, safety, and total cost of ownership improvements across the facility.
Get a Quick Quote for a ABB 3GKP134270-ASK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3GKP134270-ASK?
Enquire Now
FAQs
Yes. The motor features Exdbeb flameproof protection and is designed for ATEX/IECEx hazardous zones. It uses IMB3/IM1001 mounting and a Y connection configuration for a robust, compact footprint. With 3 kW output at 400 V and 50 Hz, it supports continuous operation in challenging environments while maintaining compliance with explosion-protection standards. This setup simplifies procurement, installation, and on-site safety validation.
The motor delivers IE3 premium efficiency with a rated output of 3 kW. At 50 Hz and full load, efficiency is approximately 83.5%. Partial-load figures at 75% and 50% load are 83.6% and 81.6%, respectively. This efficiency profile translates to lower energy costs during steady operation and substantial savings over the motor’s lifecycle, especially in processes with varying load profiles.
Industries with hazardous environments such as chemical processing, oil & gas, and mining benefit most. The Exdbeb flameproof rating, IP55 protection, and robust cast-iron frame support reliable operation in dusty, humid, and explosive atmospheres. The 8-pole, frame size 132 design provides suitable torque for demanding startup conditions, enabling reliable pump, fan, or conveyor drives in ATEX zones.
This motor satisfies Ex flameproof protection (Exdbeb), gas group IIB classification, and IP55 enclosure protection. It features insulation class ICFL, ambient temperature tolerance of up to 40°C, altitude up to 1000 m, and duty S1. It is designed for 400 V, 50 Hz operation with a Y connection, and mounting compatible with IMB3/IM1001 configurations, aligning with typical industrial and regulatory expectations.
Expect lower maintenance costs due to IP55 sealing, robust cast-iron construction, and Ex protection that reduces ignition risks. The IE3 efficiency improves energy consumption, yielding noticeable savings in ongoing electricity bills. The motor’s mounting compatibility and standardized frame size streamline spare parts availability and installation labor, delivering shorter downtime and a favorable total cost of ownership in hazardous-area facilities.
