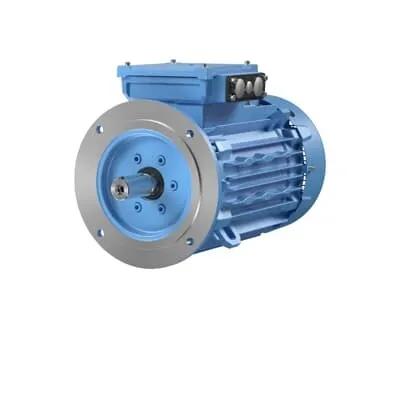

ABB Flameproof IE3 Motor 3GKP134270-BSK - Exdbeb
Part Number: 3GKP134270-BSK
Quick Summary
ABB Flameproof IE3 Motor 3GKP134270-BSK is a 3 kW explosion-protected motor for hazardous-area drives and pumps. In demanding environments, operators face downtime and reliability challenges that erode throughput and increase maintenance costs. With Exdbeb flameproof protection, IP55 enclosure, and ICFL insulation, it combines rugged safety with long-term durability. Coupled with IE3 energy efficiency and IMB5/IM3001 mounting, this motor supports lower operating costs and seamless integration into existing ABB or third-party systems.
Product Information
Extended Description
3GKP134270-BSK ABB: Flameproof IE3 Premium Efficiency LV Motors, 3 kW, 400 V (3GKP134270-BSK)
ABB Type Designation
M3KP 132SMG 8
Product Name
3-Phase squirrel cage motor
Product Type
3KP3__M3KP_IE3_Flameproof_Ex_db_eb_motor
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Selling Unit of Measure
piece
Country of Origin
Finland (FI)
Customs Tariff Number
85015220
Medium Description
3kW, 8 Poles, Frame Size 132, 3 Phases, 400V, 50Hz, IP55 Enclosure, IMB5/IM3001 Mounting (3GKP134270-BSK)
Short Description
3kW, 8P, Frame Size 132, 3PH, 400V, 50Hz, IP55, IMB5/IM3001
Electrical Data
Connection Configuration
Y
Temperature Class Default
T4
Input Voltage (Uin)
400 V
Frequency (f)
50 Hz
Output Power
3 kW
Altitude
1000 m
Ambient Temperature
40 °C
IC Class
IC411
IE Class Data (50 Hz)
IE Class IE3 | Full Load (100%) 83.5 % | Partial Load (75%) 83.6 % | Partial Load (50%) 81.6 %
IE Class Data (60 Hz)
IE Class IE3 | Full Load (100%) 86.5 % | Partial Load (75%) 86.3 % | Partial Load (50%) 84.1 %
IP Class
IP55
Insulation Class
ICLF
Direction of Rotation
Both sides
Number of Poles (High)
8
Two Speed Motor
No
Type of Duty
S1
Voltage Code
S
EX-Protection
Exdbeb
Gas Group
IIB
Frame Material
Cast Iron
Frame Size
132
Bearing
6208-2Z/C3
Bearing NDE
6208-2Z/C3
IM Class
IMB5 IM3001
Terminator Box Location
D-End top
Package Level 1 Units
0 carton
Product Net Depth / Length
576 mm
Product Net Height
346 mm
Product Net Width
294 mm
Product Net Weight
106 kg
Gross Weight
111 kg
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
UNSPSC
26101100
Flameproof Ex protection is built into the Exdbeb rating, delivering safer operation in hazardous zones and reducing risk-driven downtime, which translates to higher plant availability. The 3 kW IE3 premium efficiency rating lowers energy consumption across duty cycles, cutting operating costs for pumping and conveying applications in chemical plants, mining, and oil & gas processing. IP55 enclosure provides robust protection against dust and water ingress, enabling reliable performance in outdoor or damp installations and simplifying compliance with site standards. With a Y connection, 400 V supply compatibility, and 50 Hz operation, installation is straightforward in standard electrical grids, reducing commissioning time and enabling faster ROI. Frame size 132 and eight poles deliver a balance of torque and speed for variable loads, while IMB5/IM3001 mounting simplifies replacement or retrofitting in existing equipment. The motor’s Finnish origin and rugged build support long service intervals in harsh environments, improving total cost of ownership over the asset lifecycle.
Get a Quick Quote for a ABB 3GKP134270-BSK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3GKP134270-BSK?
Enquire Now
FAQs
This motor uses IMB5/IM3001 mounting and a Ye connection configuration for a 400 V, 50 Hz three-phase supply. Frame size is 132 with eight poles, which supports straightforward retrofits and compatibility with many standard drive systems. The D-End top termination location further simplifies wiring and enclosure access during installation.
Yes. It features Exdbeb flameproof protection and an IP55 enclosure, designed for hazardous environments. The motor supports Gas Group IIB and insulation class ICLF, making it suitable for demanding process environments where safety and reliability are critical.
The motor delivers 3 kW of output at 400 V and 50 Hz, with IE3 premium efficiency. It is designed for continuous duty (S1) and operates with a Y connection. The motor is rated IP55 and has ICFL insulation class for robust electrical performance in variable ambient conditions up to 40 °C and up to 1000 m altitude.
IMB5 IM3001 mounting supports reliable alignment and serviceability for long-life operation. The Terminator Box is located on the D-End top, which aids cable entry and termination. With the Frame 132, eight poles, and a compact footprint, it fits common industrial enclosures and simplifies integration with existing ABB or third-party equipment.
The motor has a net weight of 106 kg and a gross weight of 111 kg. Product net dimensions are 576 mm (length) × 346 mm (height) × 294 mm (width). These figures help determine rigging, transport, and installation clearances for safe logistics and on-site handling.
