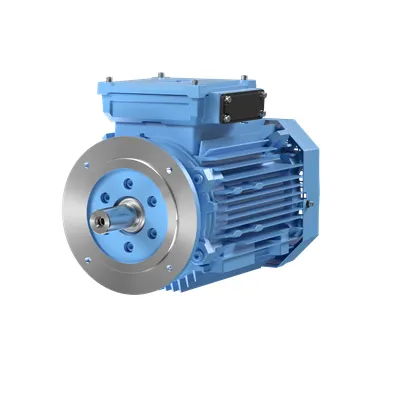

ABB 3GKP134270-CDK Flameproof IE3 Motor - Exdbeb
Part Number: 3GKP134270-CDK
Quick Summary
The ABB 3GKP134270-CDK Flameproof IE3 motor delivers reliable 3 kW power for hazardous-area drives in heavy industry. Operators face energy waste and downtime when explosion-protected motors underperform, especially in remote plants and shift-work environments. With Exdbeb flameproof protection, IP55 enclosure, and ICFL insulation, this motor meets global safety standards while delivering efficient IE3 performance. Designed for 400 V, 50 Hz networks, it supports 8-pole operation and IMB14/IM3601 mounting for rapid, compliant installation. For procurement teams, this combination translates into predictable lead times, documented technical data, and reduced lifecycle cost. In Finland-origin supply, it also aligns with local compliance and regional service networks.
Product Information
Extended Description
3GKP134270-CDK ABB: Flameproof IE3 Premium Efficiency LV Motors, 3 kW, 400 V (3GKP134270-CDK)
ABB Type Designation
M3KP 132SMG 8
Product Name
3-Phase squirrel cage motor
Product Type
3KP3__M3KP_IE3_Flameproof_Ex_db_eb_motor
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Selling Unit of Measure
piece
Country of Origin
Finland (FI)
Customs Tariff Number
85015220
Medium Description
3kW, 8 Poles, Frame Size 132, 3 Phases, 400V, 50Hz, IP55 Enclosure, IMB14/IM3601 Mounting (3GKP134270-CDK)
Short Description
3kW, 8P, Frame Size 132, 3PH, 400V, 50Hz, IP55, IMB14/IM3601
Electrical Data
Connection Configuration
D
Temperature Class Default
T4
Input Voltage (Uin)
400 V
Frequency (f)
50 Hz
Output Power
3 kW
Altitude
1000 m
Ambient Temperature
40 °C
IC Class
IC411
IE Class Data (50 Hz)
IE Class IE3 | Full Load (100%) 83.5 % | Partial Load (75%) 83.6 % | Partial Load (50%) 81.6 %
IE Class Data (60 Hz)
IE Class IE3 | Full Load (100%) 86.5 % | Partial Load (75%) 86.3 % | Partial Load (50%) 84.1 %
IP Class
IP55
Insulation Class
ICLF
Direction of Rotation
Both sides
Number of Poles (High)
8
Two Speed Motor
No
Type of Duty
S1
Voltage Code
D
EX-Protection
Exdbeb
Gas Group
IIB
Frame Material
Cast Iron
Frame Size
132
Bearing
6208-2Z/C3
Bearing NDE
6208-2Z/C3
IM Class
IMB14 IM3601
Terminator Box Location
D-End top
Package Level 1 Units
0 carton
Product Net Depth / Length
576 mm
Product Net Height
346 mm
Product Net Width
294 mm
Product Net Weight
106 kg
Gross Weight
111 kg
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
UNSPSC
26101100
IE3 premium efficiency drives tangible energy savings in continuous operations such as pumps and conveyors used in hazardous zones. With a 3 kW output at 400 V, the motor achieves full-load efficiencies around 83.5% at 50 Hz and up to 86.5% at 60 Hz, reducing operating costs across asset lifecycles and contributing to lower carbon emissions in heavy-industry facilities. Exdbeb flameproof protection, IP55 enclosure, and IG B gas-group compatibility provide robust safety and regulatory compliance for chemical plants, oil & gas sites, and mining operations, enabling safer maintenance windows and simpler permit-to-work procedures. The cast-iron frame (132) with IMB14/IM3601 mounting, 8-pole design, and bearing 6208-2Z/C3 deliver reliable performance under demanding ambient conditions up to 40 °C and 1000 m altitude. The D-connection option and bidirectional rotation support straightforward integration with existing drives and VFDs, while S1 duty and a 576 mm length optimize service access and lifecycle reliability. Overall, the motor reduces spare-parts inventories and simplifies procurement with a single, well-documented solution that aligns with Finnish-origin manufacturing quality and global safety standards.
Get a Quick Quote for a ABB 3GKP134270-CDK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3GKP134270-CDK?
Enquire Now
FAQs
For installation in hazardous zones, ensure a 3-phase 400 V, 50 Hz supply wired to the D connection configuration. Mount the unit on IMB14/IM3601 supports, verify IP55 protection, Exdbeb flameproof rating, and maintain ample clearance for cooling. Use robust anti-vibration mounting and verify ambient temperature does not exceed 40 °C at elevations up to 1000 m.
The motor carries Exdbeb flameproof protection and IP55 enclosure, capable of withstanding hazardous gas environments such as IIB. This combination helps prevent ignition sources, supports regulatory compliance, and simplifies maintenance workflows in chemical plants, oil & gas facilities, and mining operations where reliability and safety are paramount.
Yes, this is an IE3 premium efficiency motor. In typical 50 Hz operation, full-load efficiency is around 83.5% with potential improvements at 60 Hz to about 86.5%. These efficiencies translate to meaningful reductions in energy consumption, lowering operating costs for continuous-duty equipment like pumps and conveyors in hazardous areas.
Key specs include frame size 132, cast-iron frame, bearings 6208-2Z/C3, and IMB14/IM3601 mounting. It is a 3 kW, 8-pole, 3-phase motor designed for 400 V at 50 Hz, with a net weight around 106 kg and a gross weight about 111 kg. The unit supports bidirectional rotation and D-connection wiring for straightforward integration.
Certifications include Exdbeb flameproof protection, IP55 ingress protection, and IIB gas group suitability. The motor’s robust build with a 1000 m altitude rating and 40 °C ambient tolerance reduces unplanned downtime. Finland-origin manufacturing supports consistent quality and access to regional service networks, contributing to lower total cost of ownership.
