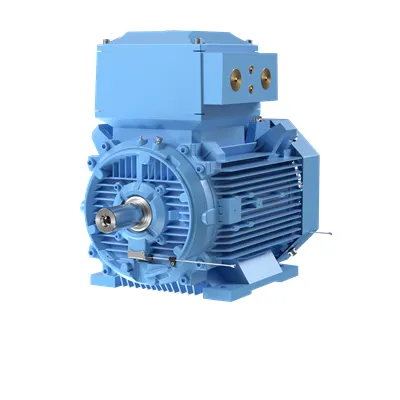

ABB 3GKP251210-ADL286 3-Phase Motor - Flameproof IE3
Part Number: 3GKP251210-ADL286
Quick Summary
ABB 3GKP251210-ADL286 3-Phase flameproof motor delivers premium IE3 efficiency for hazardous-area drives and heavy-duty applications. Many plants struggle with energy waste and unplanned downtime when motors operate in challenging environments. This motor meets demanding safety and performance needs with IP55 protection, Exdbeb explosion protection, and IC411 insulation, while offering reliable operation in extreme conditions. Its IMB3/IM1001 mounting compatibility, robust cast-iron frame, and 55 kW output at 400 V support efficient installations and long service life in process industries. For procurement teams, this translates to lower total cost of ownership, improved uptime, and smoother integration with ABB’s broader motor portfolio for industrial automation.
Product Information
Extended Description
3GKP251210-ADL286 ABB: Flameproof IE3 Premium Efficiency LV Motors, 55 kW, 400 V (3GKP251210-ADL286)
Configuration Only
No
Country of Origin
Poland (PL)
Lead Time
0 day
Made To Order
No
Product Sales Status
Obsolete
Quote Only
No
Stocked At Warehouses
NOATDRLCEXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
M3KP 250SMA 2
Product Name
3-Phase squirrel cage motor
Product Type
5KP3__M3KP_IE3_Flameproof_Exde_motor
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Selling Unit of Measure
piece
Country of Origin
Poland (PL)
Customs Tariff Number
85015290
Stocked At (Warehouses)
Menden, Germany
Medium Description
55kW, 2 Poles, Frame Size 250, 3 Phases, 400V, 50Hz, IP55 Enclosure, IMB3/IM1001 Mounting (3GKP251210-ADL286)
Short Description
55kW, 2P, Frame Size 250, 3PH, 400V, 50Hz, IP55, IMB3/IM1001
Electrical Data
Connection Configuration
D
Temperature Class Default
T4
Input Voltage (Uin)
400 V
Frequency (f)
50 Hz
Output Power
55 kW
Altitude
1000 m
Ambient Temperature
40 °C
IC Class
IC411
IE Class Data (50 Hz)
IE Class IE3 | Full Load (100%) 94.3 % | Partial Load (75%) 94.1 % | Partial Load (50%) 93.5 %
IE Class Data (60 Hz)
IE Class IE3 | Full Load (100%) 93.6 % | Partial Load (75%) 93.1 % | Partial Load (50%) 91.7 %
IP Class
IP55
Insulation Class
ICLF
Direction of Rotation
Both sides
Number of Poles (High)
2
Two Speed Motor
No
Type of Duty
S1
Voltage Code
D
EX-Protection
Exdbeb
Gas Group
IIB
Frame Material
Cast Iron
Frame Size
250
Bearing
6315/C3
Bearing NDE
6313/C3
IM Class
IMB3 IM1001
Terminator Box Location
Top
Package Level 1 Units
0 pallet (lift)
Product Net Depth / Length
895 mm
Product Net Height
726 mm
Product Net Width
482 mm
Product Net Weight
470 kg
Gross Weight
480 kg
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
UNSPSC
26101100
IE3 premium efficiency in a flameproof LV motor reduces energy consumption in steady-state and dynamic loads, contributing to measurable operating cost savings in pumps and fans. The 55 kW 400 V, 50 Hz specification supports high-torque starts, while the IP55 enclosure and Exdbeb explosion protection ensure safe operation in hazardous zones, minimizing safety risks and compliance concerns. The 250 frame size with a cast-iron construction delivers durability and robust heat dissipation, translating to longer service life in tough environments such as chemical, oil & gas, and mining sites. IMB3/IM1001 mounting compatibility simplifies installation and retrofits, reducing commissioning time and enabling quick integration with existing plant layouts. The motor’s 2-pole, 2-pole design offers reliable performance across a range of duty cycles (S1) and installations with D connection, addressing common objections about adaptability and serviceability. In short, this motor provides a proven, compliant solution for hazardous-area drives that demand reliability, efficiency, and straightforward maintenance.
Get a Quick Quote for a ABB 3GKP251210-ADL286
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3GKP251210-ADL286?
Enquire Now
FAQs
This model uses IMB3 IM1001 mounting and a 250 frame size with a cast-iron enclosure, designed for top-terminal box access. Installation should align with IMB3 mounting guidelines, ensuring proper alignment, secure foundation, and correct coupling to the driven equipment. The D connection configuration supports straightforward electrical wiring, while the 2-pole design aids predictable duty performance. Ensure compatibility with existing mounting patterns to minimize retrofitting work.
The motor operates at 400 V, 50 Hz, delivering 55 kW of output with IE3 efficiency. It features IP55 protection and Exdbeb explosion protection, suitable for hazardous environments with gas group IIB. Insulation class is ICLF, and the enclosure supports robust thermal management. The unit is configured for D electrical connection and a 2-pole design, optimized for steady S1 duty and reliable starts.
Yes. It is designed for hazardous areas with Exdbeb explosion protection and IIB gas group compatibility. The IP55 enclosure provides ingress protection against dust and water, while the insulation and protection class support safe operation at elevated ambient temperatures. Certifications align with industrial oil, gas, and chemical sector requirements, enabling compliant integration in facilities handling flammable materials and demanding process conditions.
Ideal for pumps, fans, and conveyors in chemical processing, oil & gas, and mining environments, this flameproof IE3 motor delivers energy savings (IE3 efficiency around 94%+ at 50 Hz full load) and reliable starts under load. The compact 250 frame with cast iron construction supports long service life in harsh plants, while IMB3 mounting simplifies installation and future maintenance or replacements.
The product status is listed as Obsolete, meaning direct availability may be limited. When planning replacements, consult ABB’s current flameproof IE3 motors with Exde protection and similar frame sizes (250) for compatibility in 400 V, 50 Hz systems. Review current ABB catalogs for recommended equivalents, ensuring matching IP ratings, mounting, duty cycle, and hazardous-area certifications to minimize integration risk.
