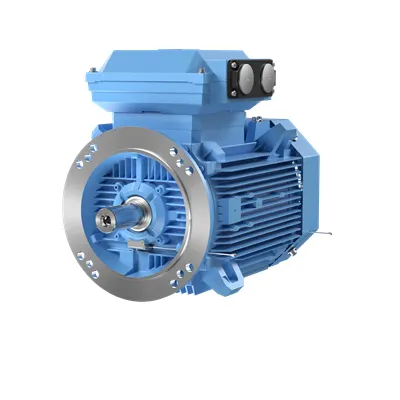

ABB 3GKP253210-BFL Flameproof IE3 Motor - Exdbeb IP55
Part Number: 3GKP253210-BFL
Quick Summary
The ABB 3GKP253210-BFL Flameproof IE3 Motor is a rugged 37 kW, 6-pole drive for hazardous-area automation. Engineers frequently struggle to source explosion-protected motors that meet premium efficiency IE3 ratings while delivering dependable lifecycle performance. This model combines Exdbeb hazardous-area protection, IP55 enclosure, and IC411 insulation to simplify compliance, installation, and long-term service. Used by OEMs and maintenance teams, it supports uptime, energy cost reduction, and streamlined spare-parts planning in demanding facilities. Its 500 V, 50 Hz supply, 1000 m altitude, and 40 °C ambient rating reflect real-world operating conditions, while IMB5/IM3001 mounting enables straightforward retrofits and consistent performance across new builds. Delivered with robustness and industry-grade components, it aligns with modern plant upgrade strategies and long-term maintenance planning.
Product Information
Extended Description
3GKP253210-BFL ABB: Flameproof IE3 Premium Efficiency LV Motors, 37 kW, 500 V (3GKP253210-BFL)
ABB Type Designation
M3KP 250SMA 6
Product Name
3-Phase squirrel cage motor
Product Type
5KP3__M3KP_IE3_Flameproof_Exde_motor
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Selling Unit of Measure
piece
Country of Origin
Finland (FI)
Customs Tariff Number
85015230
Medium Description
37kW, 6 Poles, Frame Size 250, 3 Phases, 500V, 50Hz, IP55 Enclosure, IMB5/IM3001 Mounting (3GKP253210-BFL)
Short Description
37kW, 6P, Frame Size 250, 3PH, 500V, 50Hz, IP55, IMB5/IM3001
Electrical Data
Connection Configuration
Y
Temperature Class Default
T4
Input Voltage (Uin)
500 V
Frequency (f)
50 Hz
Output Power
37 kW
Altitude
1000 m
Ambient Temperature
40 °C
IC Class
IC411
IE Class Data (50 Hz)
IE Class IE3 | Full Load (100%) 93.3 % | Partial Load (75%) 93.7 % | Partial Load (50%) 93.5 %
IE Class Data (60 Hz)
IE Class IE3 | Full Load (100%) 94.1 % | Partial Load (75%) 94.2 % | Partial Load (50%) 94.7 %
IP Class
IP55
Insulation Class
ICLF
Direction of Rotation
Both sides
Number of Poles (High)
6
Two Speed Motor
No
Type of Duty
S1
Voltage Code
F
EX-Protection
Exdbeb
Gas Group
IIB
Frame Material
Cast Iron
Frame Size
250
Bearing
6315/C3
Bearing NDE
6313/C3
IM Class
IMB5 IM3001
Terminator Box Location
Top
Package Level 1 Units
0 pallet (lift)
Product Net Depth / Length
895 mm
Product Net Height
683 mm
Product Net Width
482 mm
Product Net Weight
503 kg
Gross Weight
513 kg
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
UNSPSC
26101100
Feature: Flameproof Exdbeb protection with an IP55 enclosure and IC411 insulation. Business Impact: Provides regulatory compliance and enhanced safety in ATEX/IECEx zones, reducing ignition risk and enabling safer maintenance. Application: Chemical plants, refineries, and mining operations that demand reliable explosion-protected motors. Feature: IE3 premium efficiency at 37 kW. Business Impact: Lowers energy consumption and heat generation, cutting operating costs in continuous duty applications. Application: Continuous process lines, pumping systems, and conveyors where energy efficiency directly affects total cost of ownership. Feature: Cast Iron frame 250 with IMB5/IM3001 mounting. Business Impact: Superior durability against vibration and harsh environments, extending service intervals and simplifying retrofit planning. Application: Heavy-duty drives in tough industrial settings requiring robust mounting and reliable alignment. Feature: Electrical configuration and protection: Y connection, 500 V, 50 Hz, IP55, Exdbeb, Gas Group IIB. Business Impact: Streamlined electrical design, safer wiring practices, and regulatory alignment for hazardous-area installations. Application: Plant-wide integrations where standard power formats are used and safety ratings are mandatory. Feature: Design for real-world conditions: Altitude 1000 m, Ambient 40 °C, IC411 insulation, and Top terminator box. Business Impact: Ensures dependable operation in elevated sites and hot environments, reducing unplanned downtime. Application: Offshore platforms, refineries, and processing facilities with demanding ambient conditions.
Get a Quick Quote for a ABB 3GKP253210-BFL
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3GKP253210-BFL?
Enquire Now
FAQs
Install with Exdbeb protection and IP55 enclosure, ensuring proper clearance and enclosure integrity. Use the top terminator box as specified, select Y connection for 500 V supply on 50 Hz systems, and fit the IMB5/IM3001 mounting for vibration resilience and easy retrofits.
IE3 efficiency reduces I2R losses and energy consumption during full-load operation. For continuous S1 duty at 50 Hz, expect lower energy bills, cooler operation, and extended bearing life due to reduced thermal stress, improving total cost of ownership over the motor’s service life.
Yes. The motor offers Exdbeb hazardous-area protection, IIB gas group, and flameproof construction designed to meet ATEX/IECEx standards for Zone 1/2 environments, enabling compliant installation in many industrial plants.
Check frame size 250 and IMB5/IM3001 mounting compatibility, 6-pole configuration, and top terminator box location. Ensure the replacement aligns with existing drive train, connection configuration (Y), and 500 V 50 Hz supply. Verify spacing and serviceability for compatible spare parts.
Originating from Finland with tariff code 85015230, the motor meets IP55 and IC411 classifications, combined with Exdbeb protection. This simplifies procurement, import compliance, and on-site maintenance while ensuring reliable performance in harsh environments.
