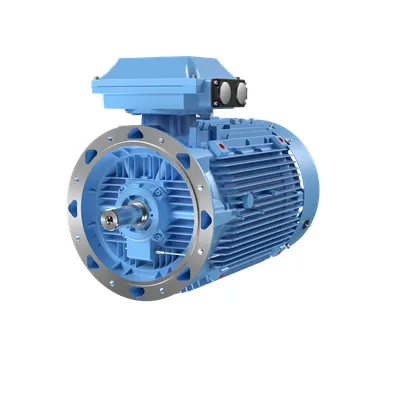

ABB 3GKP353810-BDM 3-Phase Flameproof Motor - IE4 Exdbeb
Part Number: 3GKP353810-BDM
Quick Summary
ABB 3GKP353810-BDM is a flameproof 315 kW, 400 V 3-phase motor for hazardous-area automation. In plants with explosive atmospheres, downtime and non-compliance with explosion-protection standards can lead to costly outages and safety incidents. This motor carries Exdbeb flameproof protection suitable for IIB gas groups, IP55 enclosure, and IE4 efficiency, with IC411 insulation for high-temperature resilience. Its IMB5/IM3001 mounting compatibility, 355 frame size, and robust 6-pole design support reliable operation in confined spaces while meeting stringent installation requirements. Originating from Finland and offered with a minimum order of 1 piece, it integrates smoothly with ABB power systems and standard wiring practices, delivering long-term value for hazardous-area applications.
Product Information
Extended Description
3GKP353810-BDM ABB: Flameproof IE4 Super Premium Efficiency LV Motors, 315 kW, 400 V (3GKP353810-BDM)
ABB Type Designation
M3KP 355LKA 6
Invoice Description
M3KP 355LKB 6
Product Name
3-Phase squirrel cage motor
Product Type
3KP4__M3KP_IE4_Flameproof_Ex_db_eb_motor
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Selling Unit of Measure
piece
Country of Origin
Finland (FI)
Customs Tariff Number
85015381
Medium Description
315kW, 6P, Frame Size 355, 3 Phases, 400V, 50Hz, IP55 Enclosure, IMB5/IM3001 Mounting (3GKP353810-BDM)
Short Description
315kW, 6P, Frame Size 355, 3PH, 400V, 50Hz, IP55, IMB5/IM3001
Electrical Data
Connection Configuration
D
Temperature Class Default
T4
Input Voltage (Uin)
400 V
Frequency (f)
50 Hz
Output Power
315 kW
Altitude
1000 m
Ambient Temperature
40 °C
IC Class
IC411
IE Class Data (50 Hz)
IE Class IE4 | Full Load (100%) 96.6 % | Partial Load (75%) 96.6 % | Partial Load (50%) 96.3 %
IE Class Data (60 Hz)
IE Class IE4 | Full Load (100%) 96.5 % | Partial Load (75%) 96.4 % | Partial Load (50%) 95.8 %
IP Class
IP55
Insulation Class
ICLF
Direction of Rotation
Both sides
Number of Poles (High)
6
Two Speed Motor
No
Type of Duty
S1
Voltage Code
D
EX-Protection
Exdbeb
Gas Group
IIB
Frame Material
Cast Iron
Frame Size
355
Bearing
6322/C3
Bearing NDE
6316/C3
IM Class
IMB5 IM3001
Terminator Box Location
D-End top
Package Level 1 Units
0 pallet (lift)
Product Net Depth / Length
1834 mm
Product Net Height
968 mm
Product Net Width
700 mm
Product Net Weight
2514 kg
Gross Weight
0 kg
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
UNSPSC
26101100
Feature: Exdbeb flameproof protection for IIB gas groups provides certified explosion protection, enabling safe operation in hazardous zones. Business Impact: reduces ignition risks and supports regulatory compliance, lowering incident-related downtime. Application: petrochemical processing, refineries, and mining facilities requiring ATEX/IECEx-compliant motors. Feature: IE4 energy efficiency delivers high full-load performance at 315 kW output with 400 V, 50 Hz input. Business Impact: lowers energy bills and thermal load, improving overall equipment efficiency and sustainability. Application: continuous-duty pumps, fans, and conveyors in chemical and oil & gas plants. Feature: IP55 enclosure plus ambient temperature tolerance to 40 °C and altitude up to 1000 m increases reliability in dusty, hot, or outdoor environments. Business Impact: minimizes ingress-related failures, extends service intervals, and reduces maintenance costs. Application: outdoor skid-mounted drives, on-site-equipped substations, and offshore facilities. Feature: 355 frame size with 6 poles and IMB5/IM3001 mounting enables straightforward retrofits and smooth installation. Business Impact: supports fast commissioning, easier alignment with existing drives, and proven mechanical compatibility. Application: plant-wide motor replacement, upgrade projects, and new hazardous-area installations. Feature: Robust mechanicals and insulation (ICLF) with Ex protection and IIB gas group compatibility ensure durable performance under demanding conditions. Business Impact: predictable uptime, longer motor life, and lower lifecycle costs. Application: high-temperature processes, abrasive environments, and demanding industrial duty cycles.
Get a Quick Quote for a ABB 3GKP353810-BDM
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3GKP353810-BDM?
Enquire Now
FAQs
Plan for IMB5/IM3001 mounting compatibility on a 355 frame with a D connection and a 400 V, 50 Hz supply. Ensure the installation site meets IP55 protection requirements, ambient temperature up to 40 °C, and altitude limits around 1000 m. Use compliant wiring practices and verify Exdbeb protection for IIB environments during commissioning.
Yes. It features Exdbeb flameproof protection suitable for IIB gas groups, meeting ATEX/IECEx requirements. The IP55 enclosure and IC411 insulation further support safe operation in explosive atmospheres, making it a reliable choice for chemical plants, refineries, and mining sites.
The motor meets IE4 efficiency, with full-load performance around 96.6% at 50 Hz. This high efficiency reduces energy consumption during continuous operation, contributing to lower operating costs and improved sustainability for pumps, fans, and conveyors in hazardous-area applications.
The motor uses a 355 frame with a 6-pole design and supports IMB5/IM3001 mounting. This combination facilitates straightforward retrofits and seamless integration with existing ABB or compatible drives and wiring, minimizing downtime during install or upgrade projects in challenging environments.
Key certifications include Exdbeb flameproof protection for IIB gas groups and IP55 enclosure, plus IC411 insulation and 315 kW rating at 400 V. The unit originates from Finland, with a minimum order quantity of 1 piece, and a tariff code of 85015381, aiding compliance and import planning.
